Product details

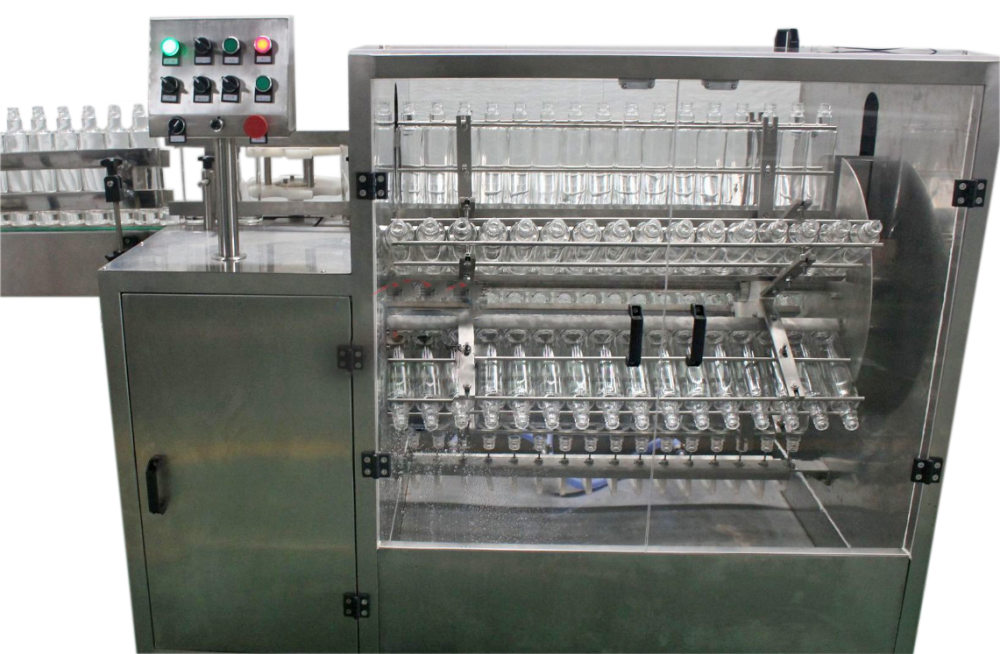

Introducing the Screw Bottle Washing Machine - the perfect solution for thoroughly cleaning your bottles with ease! This advanced machine is a vital component of our Bottle Cleaning Production Line, which includes the Bottle Flushing Machine and Bottle Washing and Sterilizing Machine. With precision water jets and a screw conveyor system, this machine efficiently removes dirt, debris, and other contaminants from your bottles. Plus, its compact design makes it easy to integrate into your production line. Elevate your production process and maintain the highest standards of cleanliness with our Screw Bottle Washing Machine.

Structure and performance specification

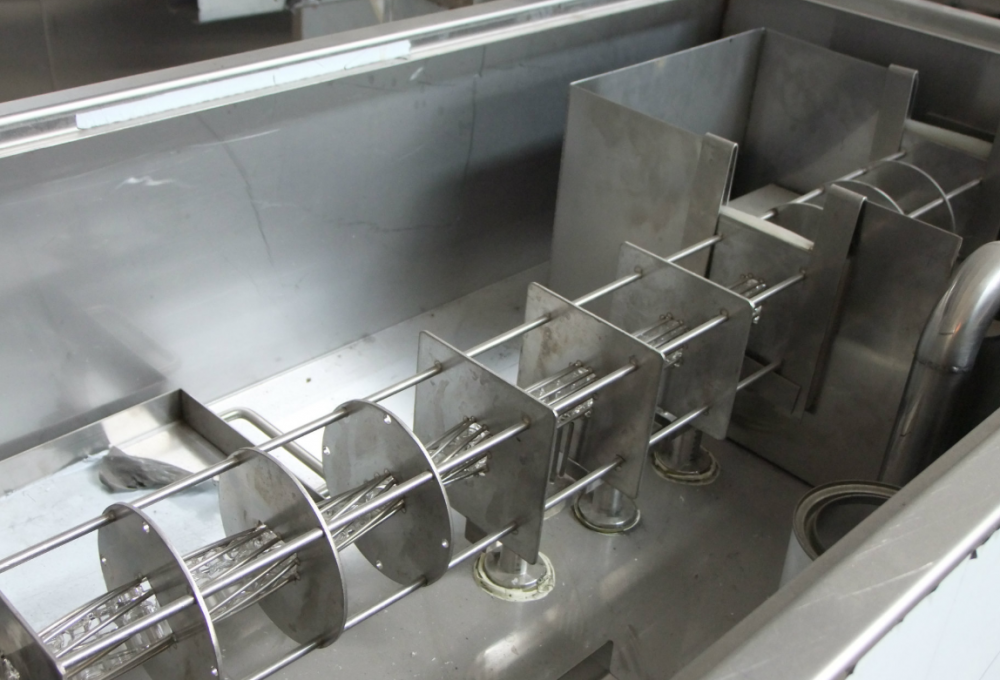

The main working principle of the machine is that the power of the motor is driven by the reducer to drive the main shaft to rotate, and the main shaft drives the clamping claw to make circular movement. The dial is pulled into the bottle and clamped when it is connected with the clamping claw. Under the action of the turning track, the clamping claw turns the bottle to the vertical position, and the flushing valve opens to wash the bottle. After the bottle is washed for a certain time, the flushing valve is closed, and then the blowing valve is stuck to blow out the residual water in the bottle, and then the clamping claw is turned over to send out the bottle.

1. The main material is the 304 stainless steel and imported organic glass, beautiful and upscale in appearance. 2. It makes full use of the three-dimensional apace so that such unique design saves the company’s resources. 3. The realization of integration of the UV sterilization and cleaning in the empty can meets the high standards of the company on production quality; 4. Adopting the electrical accessories with the international well-known brand; 5. Simple and convenient operation, achieving the automatic streamlined operation.

Product Name	Bottle Washer
Voltage Specification	220V,50/60Hz,0.75Kw
Working Pressure	0.2-0.3Mpa
Applicable Bottle Type	Round Bottle
Applicable Caliber	Customized
Washing Method	Water Wash + Air Dry
Washing Capacity	Customized
Product Rate	1200-2500 Bottles/H
Equipment Size	145010201460mm
