YHCB series truck pto fuel oil gear pump suitable for transferring all kinds of liquids with viscosity 5~1500cst, temperature below 100℃,not contain solid particles and non~corrosive. Such as petrol , Kerosene, diesel oil and mechanical lubricating oil.
It is a kind of high efficiency and energy saving special gear pump. It has big capacity, high pressure,small volume,low noise,good self-priming performance, convenient to install and repair. It is also the ideal choice for oil tanker refitting industry and petroleum sector. This product refer to JB/6434-92 standard.

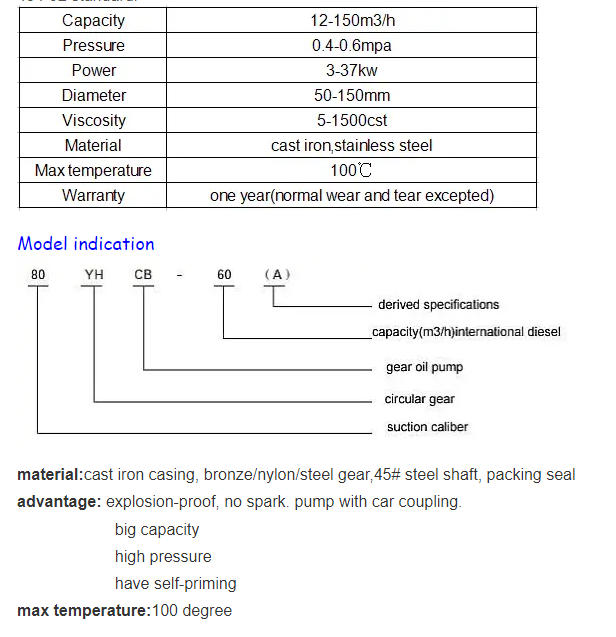

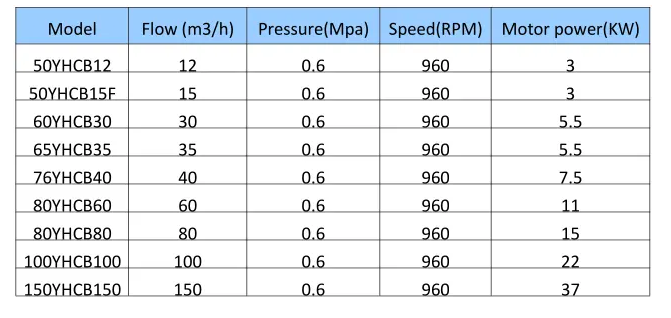

Technical Data
Application Scope
YHCB series of on-board arc pumps are mainly used in conveying viscosity in 5 to 1500 CST, the temperature is below 80 °C
and not containing solid particles, non-corrosive, various oil medium. Gear selection of special material,
can play the role of explosion-proof.
Arc gear pump can be installed in the car, with the help of take a power output shaft of automobile gearbox.
Working Principle

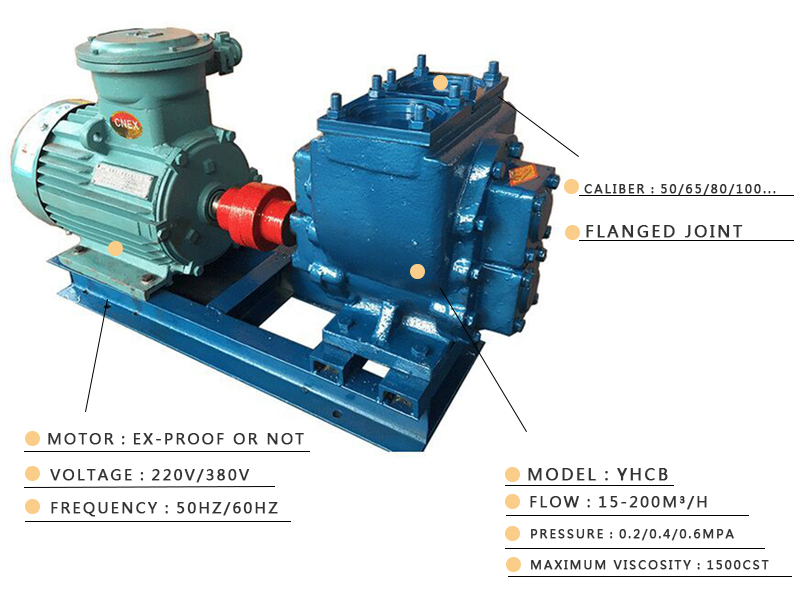

Driving gear (outside rotor) with internal tooth drives the internal rotor and turns in same direction in the full closed pump body. The inlet is from the outlet. When it turns, negative pressure formed at the suction port, the liquid inlet and being take to the outlet by rotor, then the liquid is impelled from the discharge port and the gears mesh. The transportation of liquid finished.YHCB 80-60 Oil tanker oil pump
Structure Feature

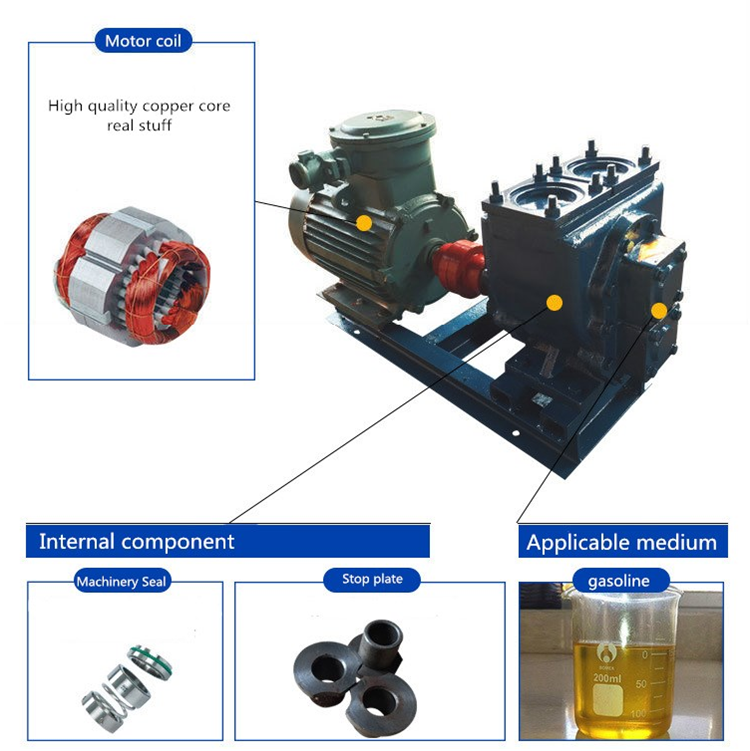

As figure, the pumps are mainly composed of internal rotor, outside rotor, shaft, pump casing, front cover, seal, bearing etc.
The pump' seal adopts packing seal or mechanical seal. When the delivered medium is high temperature, high viscosity or strong corrosion, packing seal should be adopted.YHCB 80-60 Oil tanker oil pump
When the delivered medium is easy crystal linic, we can design the heat preservation jacket in pump casing and front cover in order to melt the medium with steam when working. The pump can be also fitted with the safety valve.
The pump set is composed of the pump, motor and baseplate.
The driving way is belt wheel driving or coupling driving.YHCB 80-60 Oil tanker oil pump
Package& Transportation
