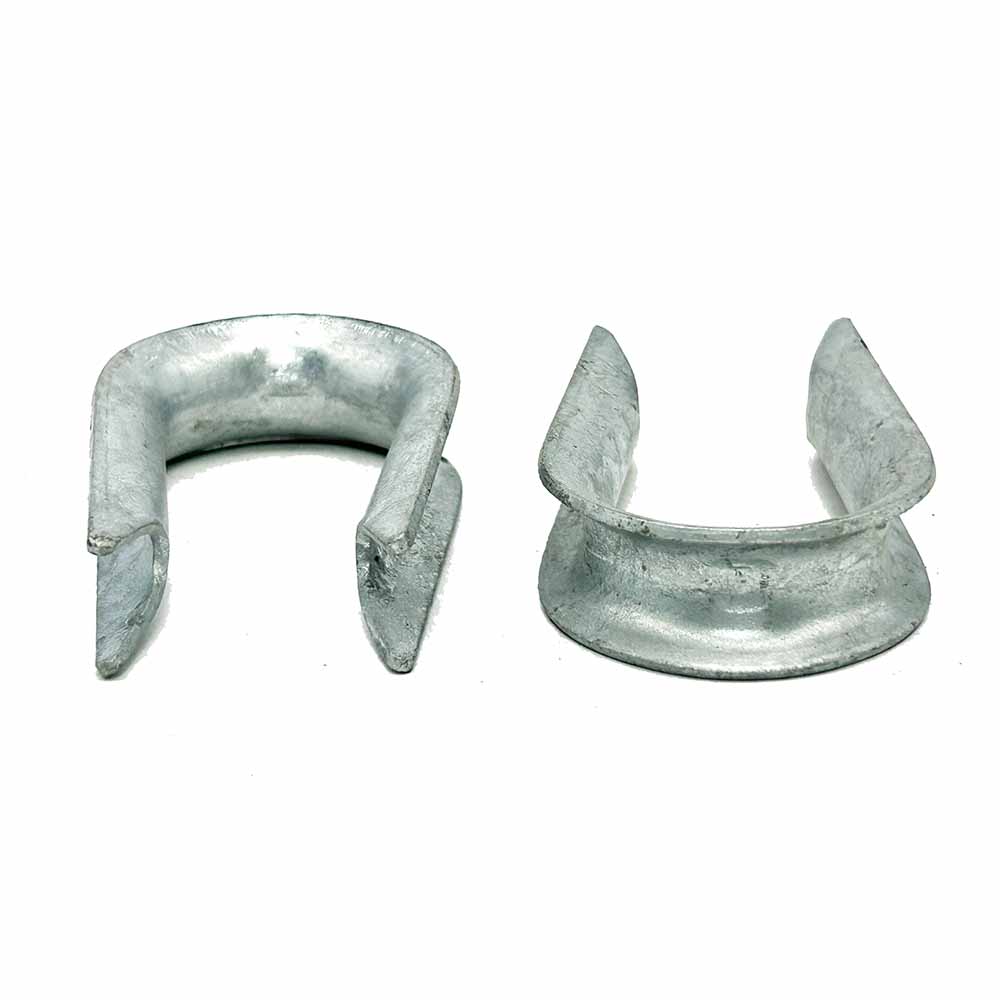

Wire Rope Thimble For Utility Pole, Deadend Hardware

Utility Pole Guying Wire Rope Thimble Deadend Hardware (3)

The Wire Rope Thimble is a type of pole line hardware used to protect and reinforce the looped ends of wire ropes. It is typically made of galvanized steel and is shaped like a cylinder with a closed end and an open end. The open end has a groove or channel that is designed to hold the wire rope in place.

Yokelink Wire Rope Thimble has open ends for use with oval eyebolt in guying assembly. Hot dip galvanized to meet ASTM A153 specification.

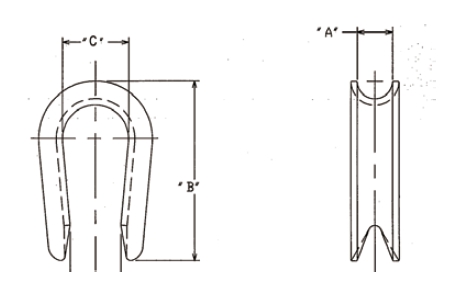

Wire Rope Thimble Specification

Part No.	Strand Size	A	B	C	Weight
Part No.	Inch	Inch	Inch	Inch	Kg / Pcs
D0638	3/8	0.45	2.5	1.000	0.049
D0612	1/2	0.59	3	1.100	0.052
D0658	5/8	0.72	3.5	1.500	0.090

What are the types of guy thimble?

A cable thimble or a stay thimble is available in standard duty fabrication in light and heavy duty style.

If you want a heavy duty performance, then you should choose a heavy thimble wire for rope. You can get both styles in a zinc-plated metal usable in all types of environment.

If there is a wet environment such as marine application, you can get the rope wire thimble in stainless steel.

Where is it used?

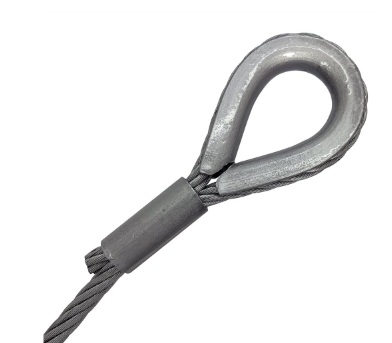

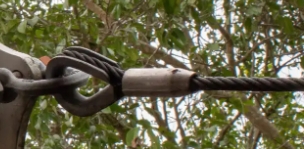

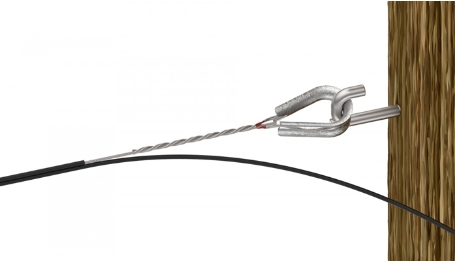

A high risk of crushing is present when a professional is trying to connect a wire to other components. The guy thimble saves the rope through connecting to the eye and provides more support. In addition, the guy thimble also makes a natural curve and guides the eye of the wire. You can get guy thimbles in various materials and strengths. The guy thimble has a radius in a way that adds to the strength of the ropes. It also finds it uses in different wire rope grips, turnbuckles, and shackles. The guy thimble has different components positioned at certain angles. It is highly important so the anchor has an efficient performance.
