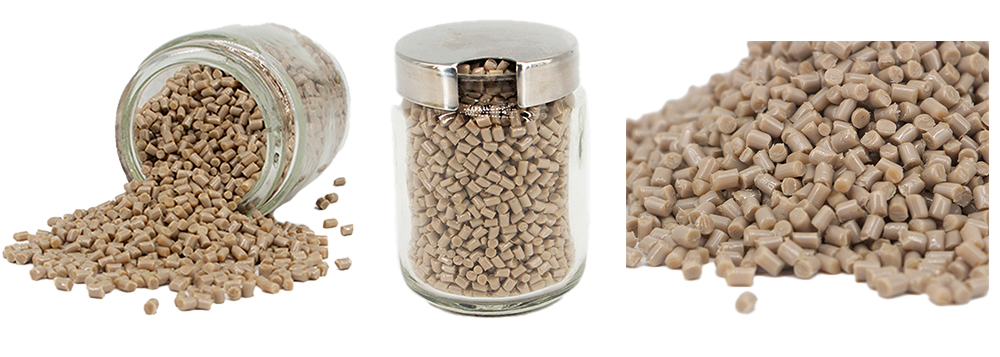

PEEK Plastic Granules Injection Mold Medical Grade Granules
Chemical resistance PEEK raw material factory PEEK Product
Polyether-Ether-Ketone is a kind of semicrystalline high-molecular polymer and its main chain of macromole
is consist of aryl , ketone and ether.PEEK has the advantages of excellent strength and thermal properties.
It can compete with metal in various fields with its unique structure and properties,which includes outstanding
fatigue resistance,abrasion resistance,self-lubricated property,electrical properties and radiation resistance.
These embrace PEEK the ablilites to challenge numberous environmental extremes.
PEEK Typical Characteristics:
1. high temperature performance
2. excellent mechanical properties
3. flame retardancy and low smoke:
4. chemical resistance
5. Self-lubricating and wear resistance
6. hydrolysis resistance
7. Dimensional stability
8. Economy
9. electrical properties and insulation properties
10. radiation resistance and weather resistance
11. High purity, low volatility and non-toxic.

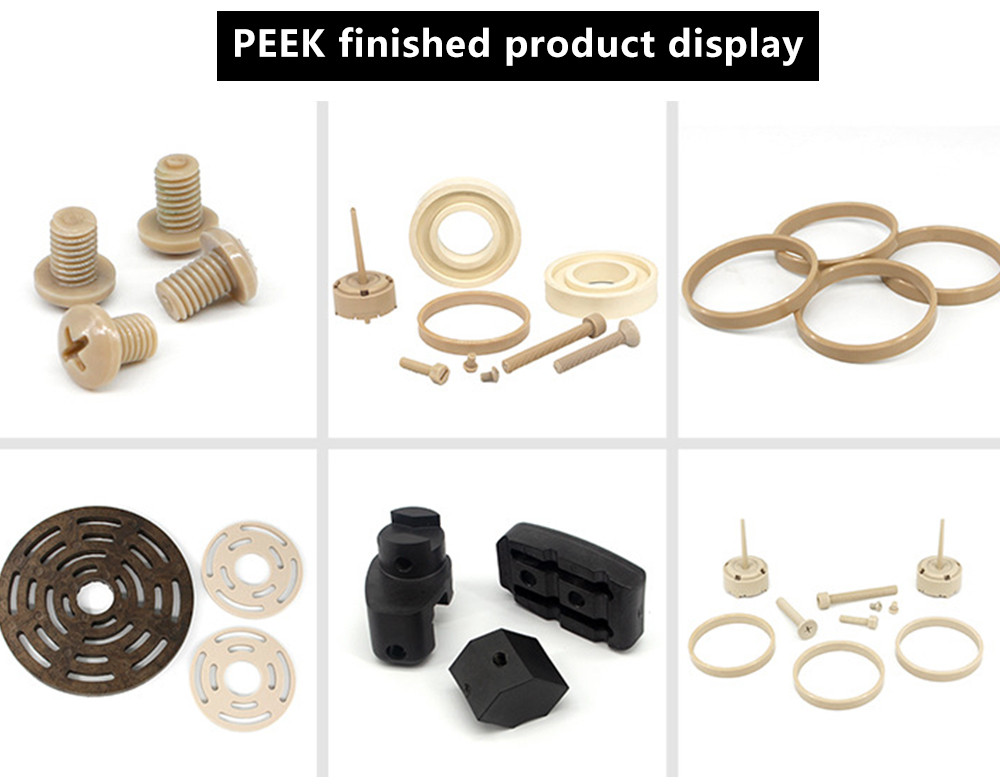

We support customized screws, gears, bushings, valve plates, seals, special-shaped parts and other PEEK
For injection molded products, the tolerance does not exceed 0.03mm.
Property
Item No.
Unit
PEEK-1000
PEEK-CA30
PEEK-GF30
1
Density
g/cm3
1.31
1.41
1.51
2
Water absorption(23℃ in air)
%
0.20
0.14
0.14
3
Tensile strength
MPa
110
130
90
4
Tensile strain at break
%
20
5
5
5
Compressive stress(at 2%nominal strain)
MPa
57
97
81
6
Charpy impact strength (unnotched)
KJ/m2
No break
35
35
7
Charpy impact strength (notched)
KJ/m2
3.5
4
4
8
Tensile modulus of elasticity
MPa
4400
7700
6300
9
Ball indentation hardness
N/mm2
230
325
270
10
Rockwell hardness
--
M105
M102
M99
Heat-resistance
We have a number of certificate certifications such as ISO SGS FDA etc....
