SHB-10 Elevating Welding Positioner
1、 Elevating Welding Positioner Introduction
Welding positioner is widely used for welding and holding and assembling of complex work piece. It is an excellent assistance device for mechanical industry especially steel structure manufacturing industry such as small chemical vessel manufacturing. SHB series welding positioner is manufactured and designed based on some customers’ special requirement, and it absorbs advantages of same products at home and abroad. This product has advanced technology, aesthetic appearance, reliable quality and easy operation, etc.
2、Elevating Welding Positioner Functions
This type of welding positioner is composed of slewing gear of table, overturning gear of table, electrical control assembly and elevating base. It has beautiful appearance and compact structure.
The electricity uses centralized control, all the operating buttons are on the electric control box, the rotating speed is controlled by AC transducer. There are buttons for positive rotating, opposite rotating, rotating stop, RPM adjusting. The tilting angle of working table is 0～90°, it can tilt upward and downward. The utmost limit is controlled by travel switch. It is easy operating and has high reliability.
3、Elevating Welding Positioner Technical Parameters
Max. Load capacity：1000 Kg
Rotating speed of working table：0.12～1.2 rpm
Overturning speed of working table： 0.34 rpm
Overturning angle of working table：0～90°
Dimension of working table：φ900 mm
Max. Eccentricity：200 mm
Max. Gravity：300 mm
Adjusting way of rotating speed：AC frequency stepless adjust

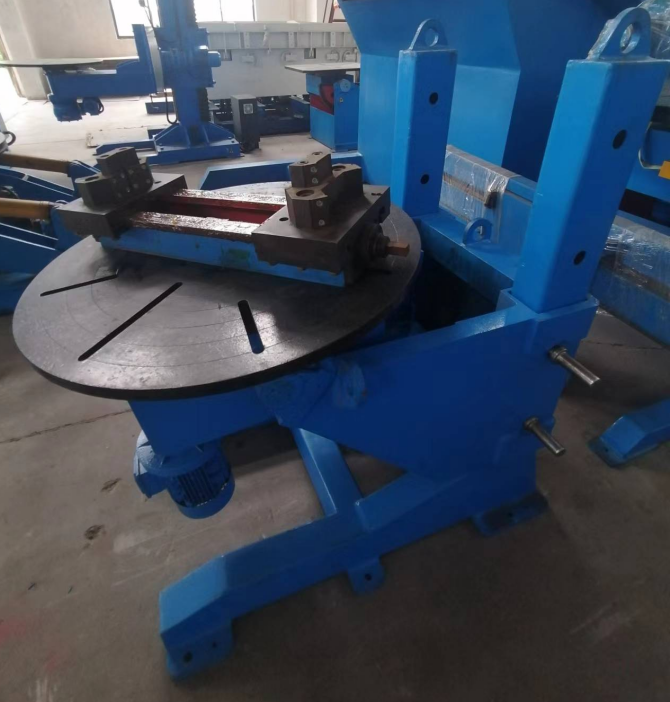

Heavy duty chuck for better workpiece clamping

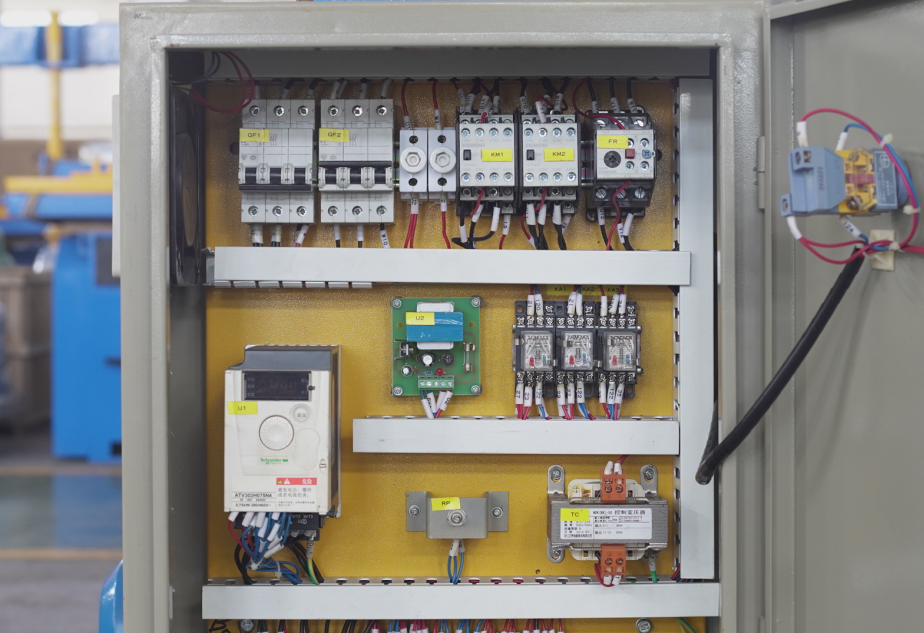

Schneider VFD and high quality electrical components can ensure the machine have long life
5、About Us
4、Details of Elevating Welding Positioner ：

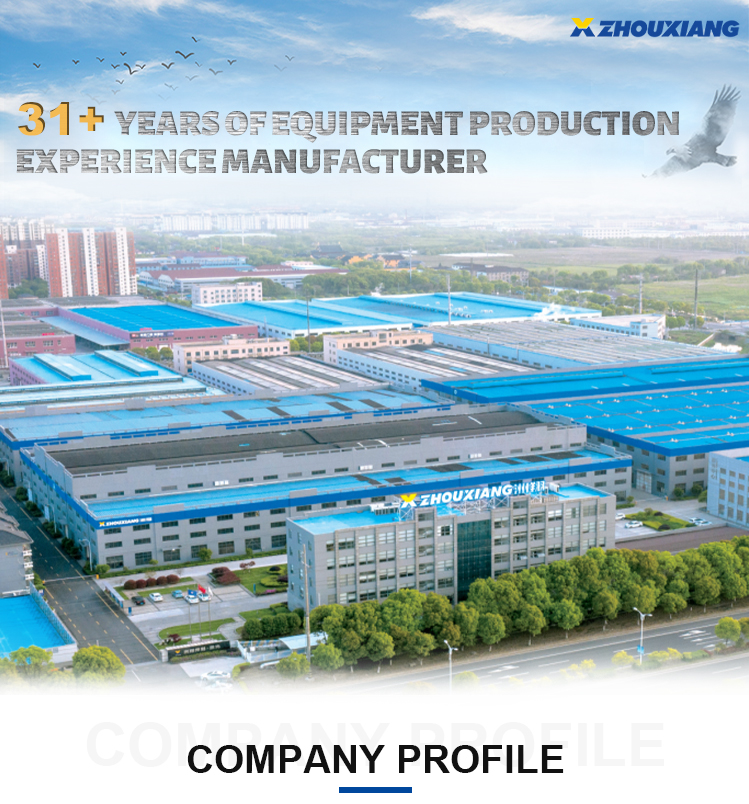

Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries. Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships.
Our Services
FAQ
1.Q: What is the minimum order quantity? A: 1PCS. 2.Q: What are the payment terms? A: L/C; T/T. 3.Q: How long is the delivery time? A: 30 Days. 4.Q:How long is the warranty period? A: 1 Years.
