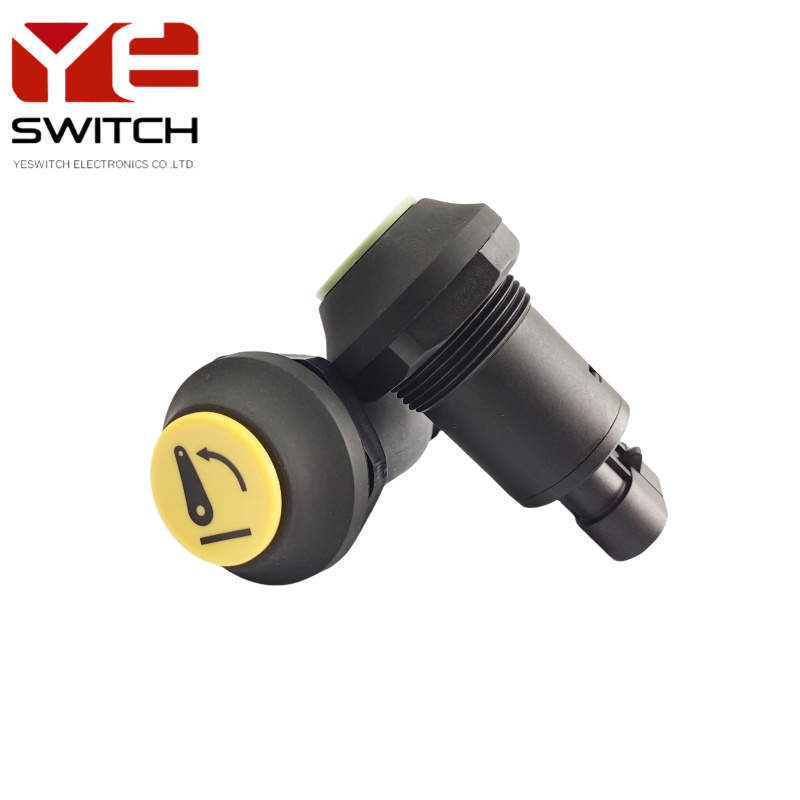

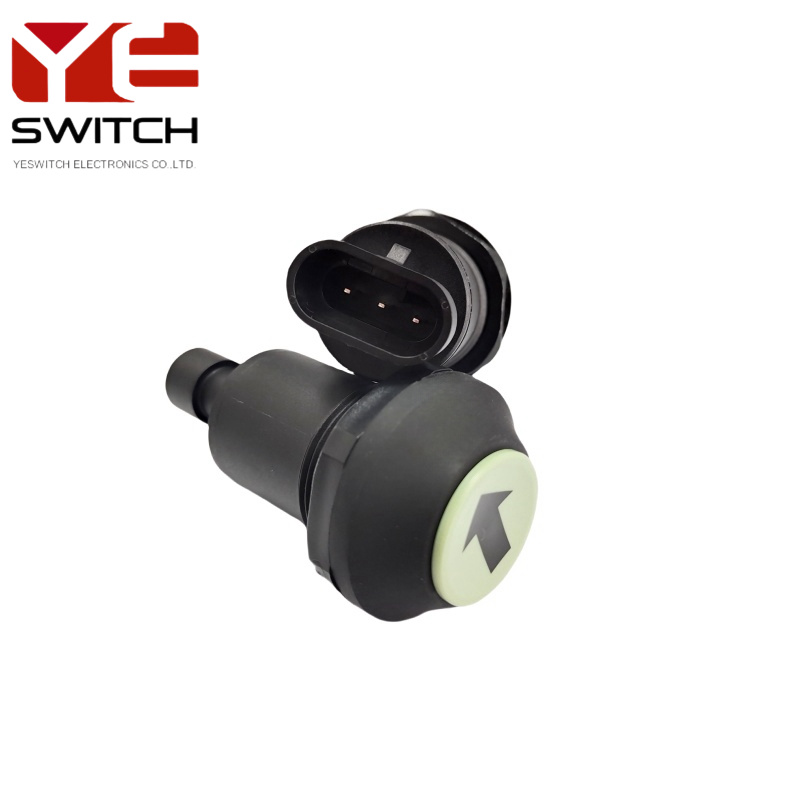

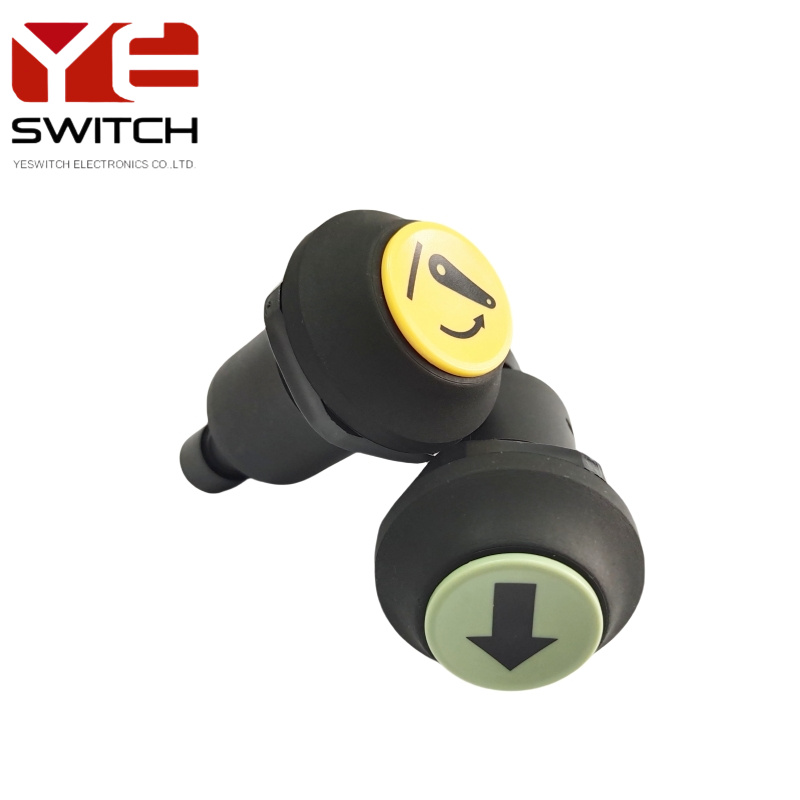

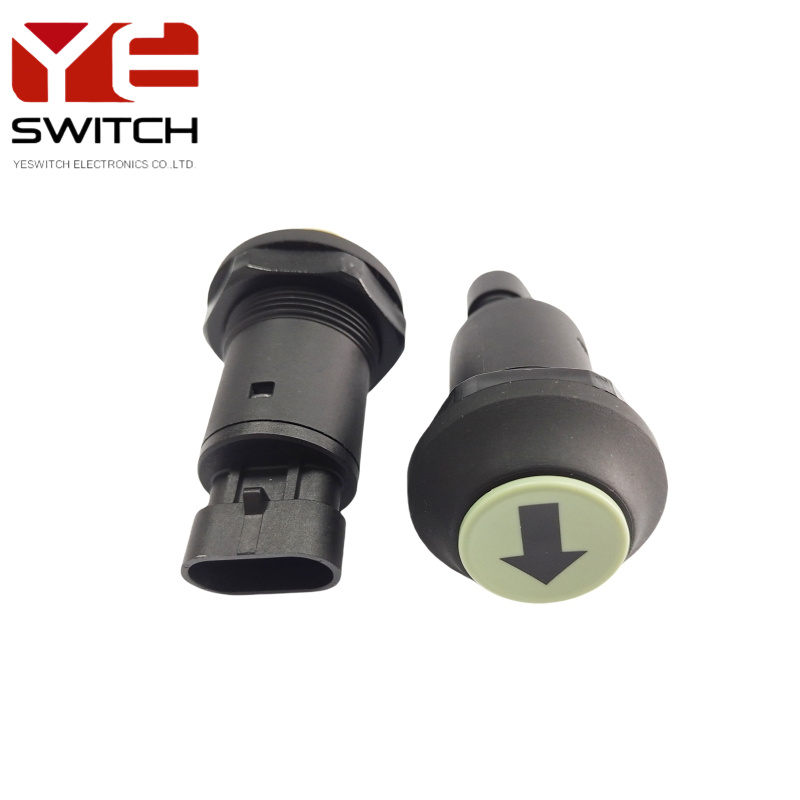

IP67 Hydraulic Control Push Button switch For Tractor

The M30 hydraulic control push button switch, with its reset function, connector design, diverse options, standard installation size, excellent dust and waterproof performance, and precise hydraulic control capabilities, has become an ideal choice for automotive engineering applications, particularly for equipment such as tractors. It not only enhances operational efficiency and safety of the equipment but also reduces maintenance costs and extends equipment lifespan.

Reset Function: The momentary push button switch is equipped with a reset function, which allows it to automatically or manually return to its initial state after operation, ensuring the safety and stability of the equipment.

Connector Design: The waterproof push button switch is equipped with a standardized connector for quick and secure wire connections, improving the convenience of installation and maintenance.

Diverse Options:

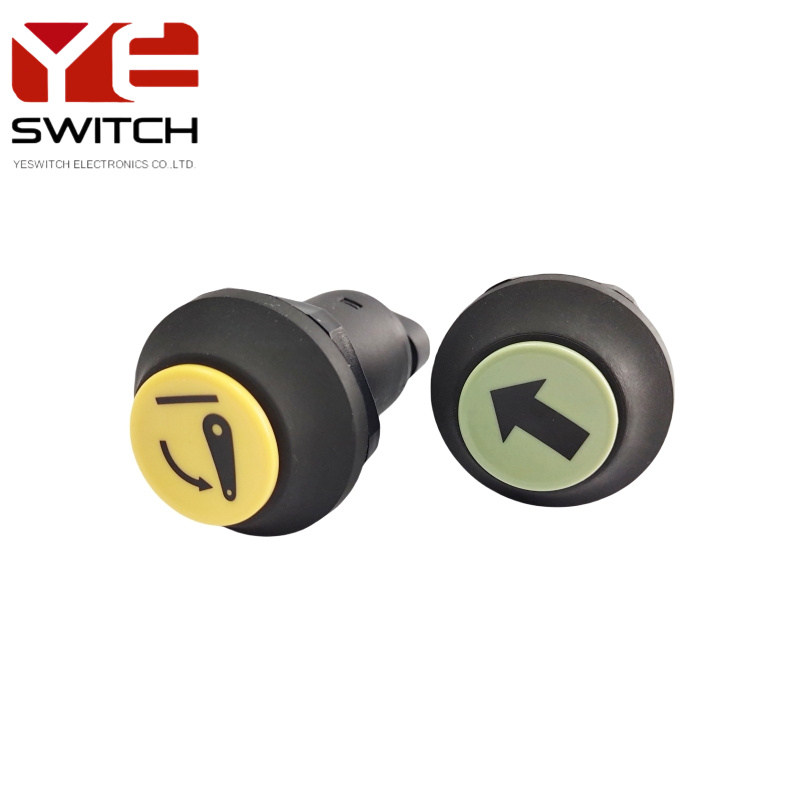

Button Colors: Multiple color options are available, such as red, green, yellow, etc., to meet the visual needs of different application scenarios.

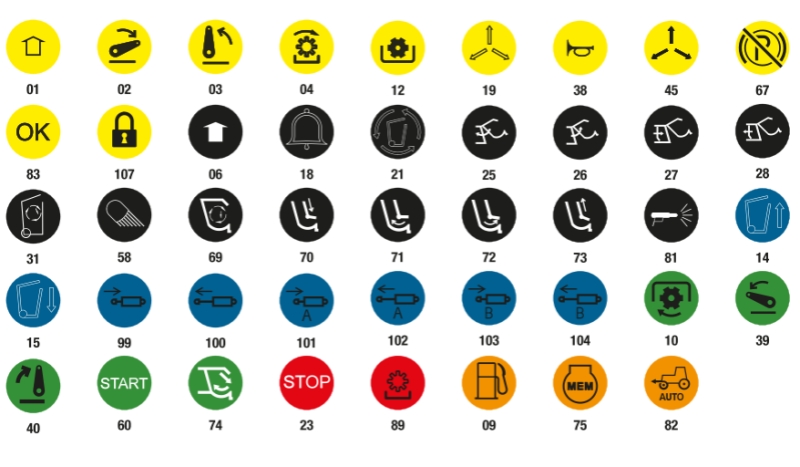

Symbol Customization: Different button symbols, such as arrows, hydraulic icons, etc., can be customized according to customer requirements to intuitively display the function of the switch.

Installation Size: The standard installation size is 30mm, suitable for various installation environments and equipment, ensuring flexibility and versatility in installation.

Dust and Waterproof: With an IP67 protection rating, it effectively prevents the ingress of dust and water, making it suitable for harsh outdoor or industrial environments.

Hydraulic Control: Designed specifically for controlling hydraulic functions, it can precisely and reliably control the start, stop, and adjustment of hydraulic systems, meeting the requirements for precise control in the automotive engineering field.

Application Areas:

This hydraulic control waterproof push button switches are primarily used in the automotive engineering field, especially for equipment that requires hydraulic control systems, such as tractors, heavy-duty trucks, and construction machinery. Its dust and waterproof performance, precise control, and diverse design features enable these devices to maintain efficient and stable operation in harsh working environments.

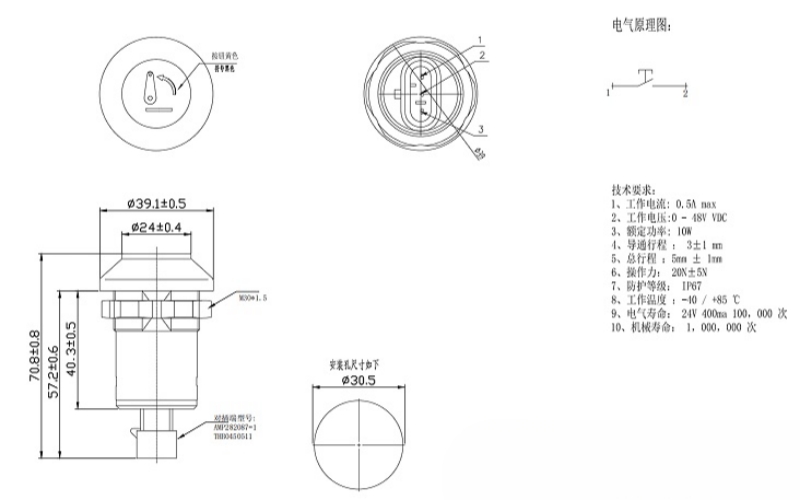

SPECIFICATION

SWITCH CURRENT:0.5A MAX
SWITCH VOLTAGE:0-48VDC
SWITCH POWER:10W/VA
CONDUCTION TRAVEL:3MM±1MM
TOTAL TRAVEL:5MM±1MM
OPERATING FORCE:20N±5N
TEMPERATURE RANGE:-40 TO 85 DEGREES
INGRESS PROTECTION:IP67
ELECTRICAL LIFE:24V 400MA 100,000 CYCLES
MECHANICAL LIFE:1,000,000 CYCLES
