Product details

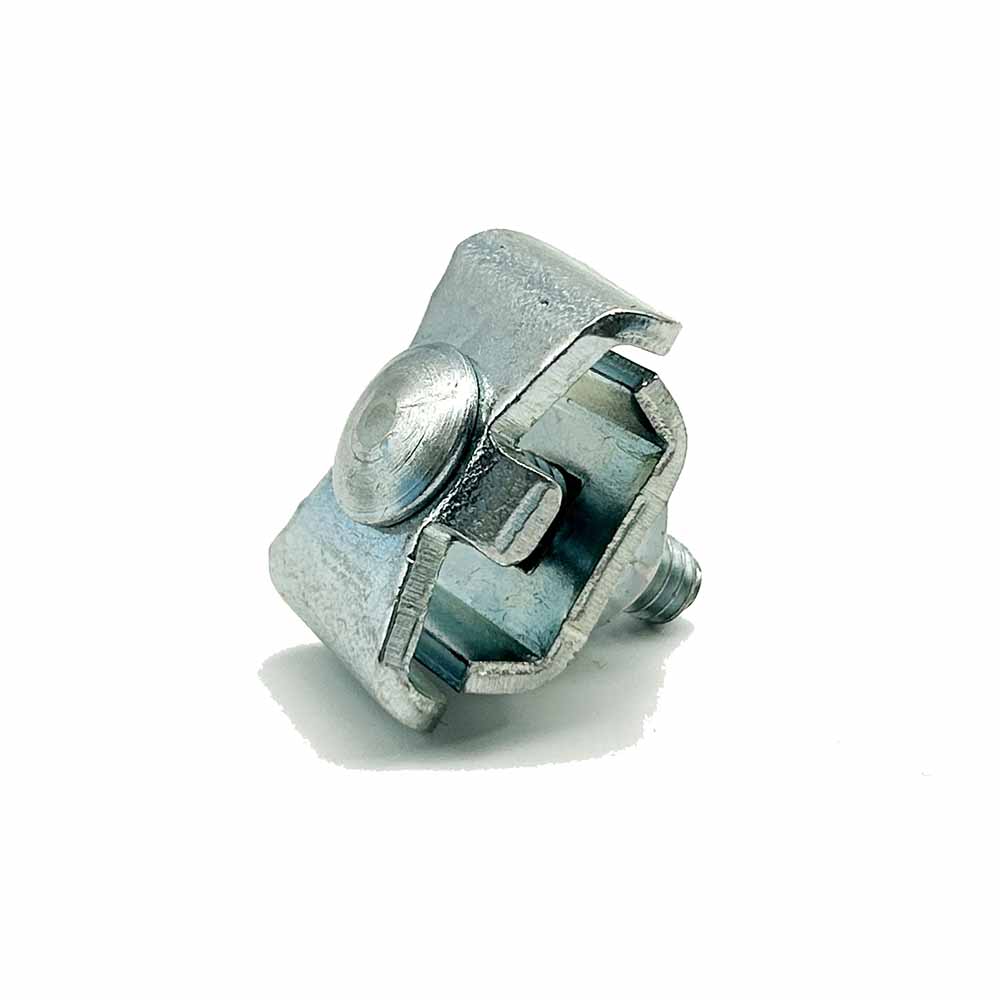

Joint Clamp For Wire Mesh Cable Tray,Cable Tray Connector with Carriage Bolt Flange Nut (3)

Reinforced Joint Clamp for Wire Mesh Cable Tray

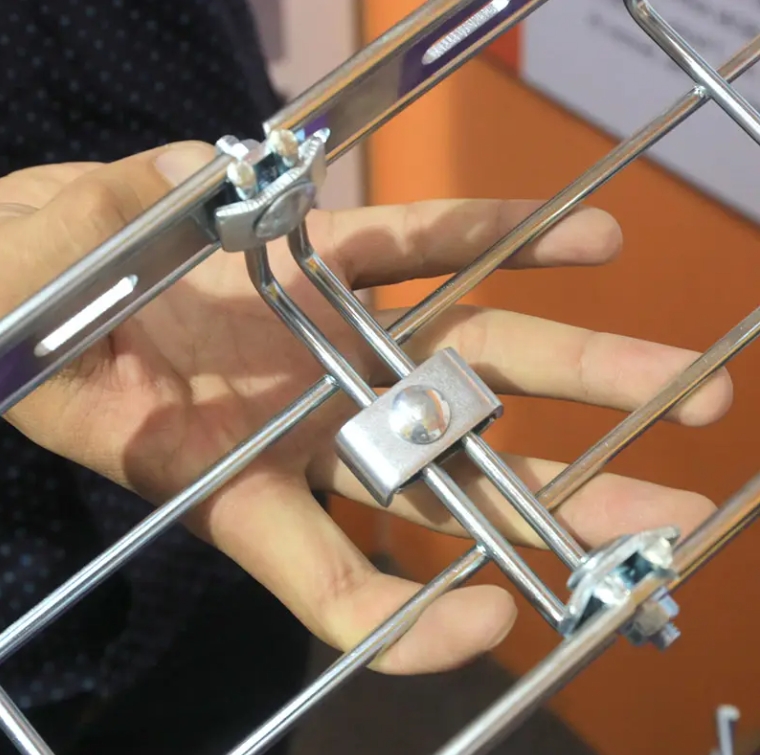

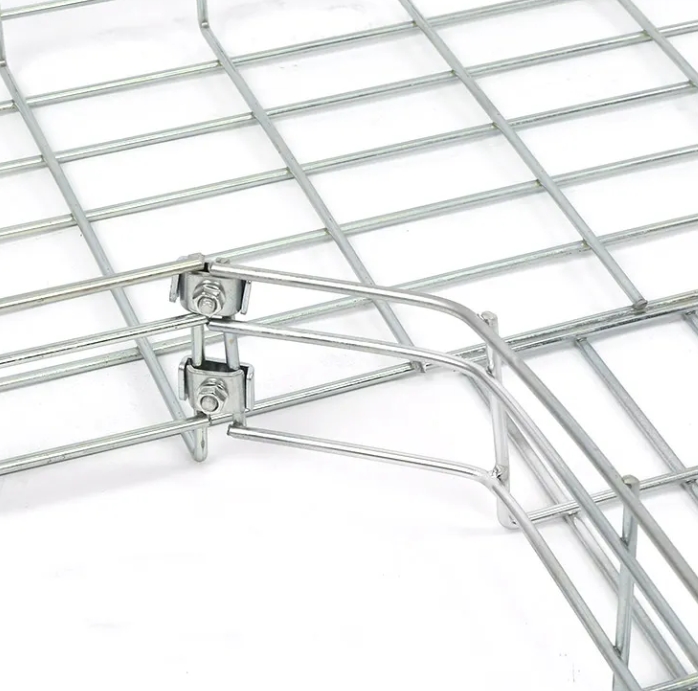

Reinforced Joint Clamp for Wire Mesh Cable Tray is for Coupling steel wire cable trays, creating small/large radius bends, right angle bends, radius tee-junction and crossovers. Use to connect & install cable tray system, splice tray sections when forming all end-to-end connections, turns, reductions and intersections.

Material Stainless Steel or carbon steel, Customized sizes are available, Surface treatment: electrogalvanized.

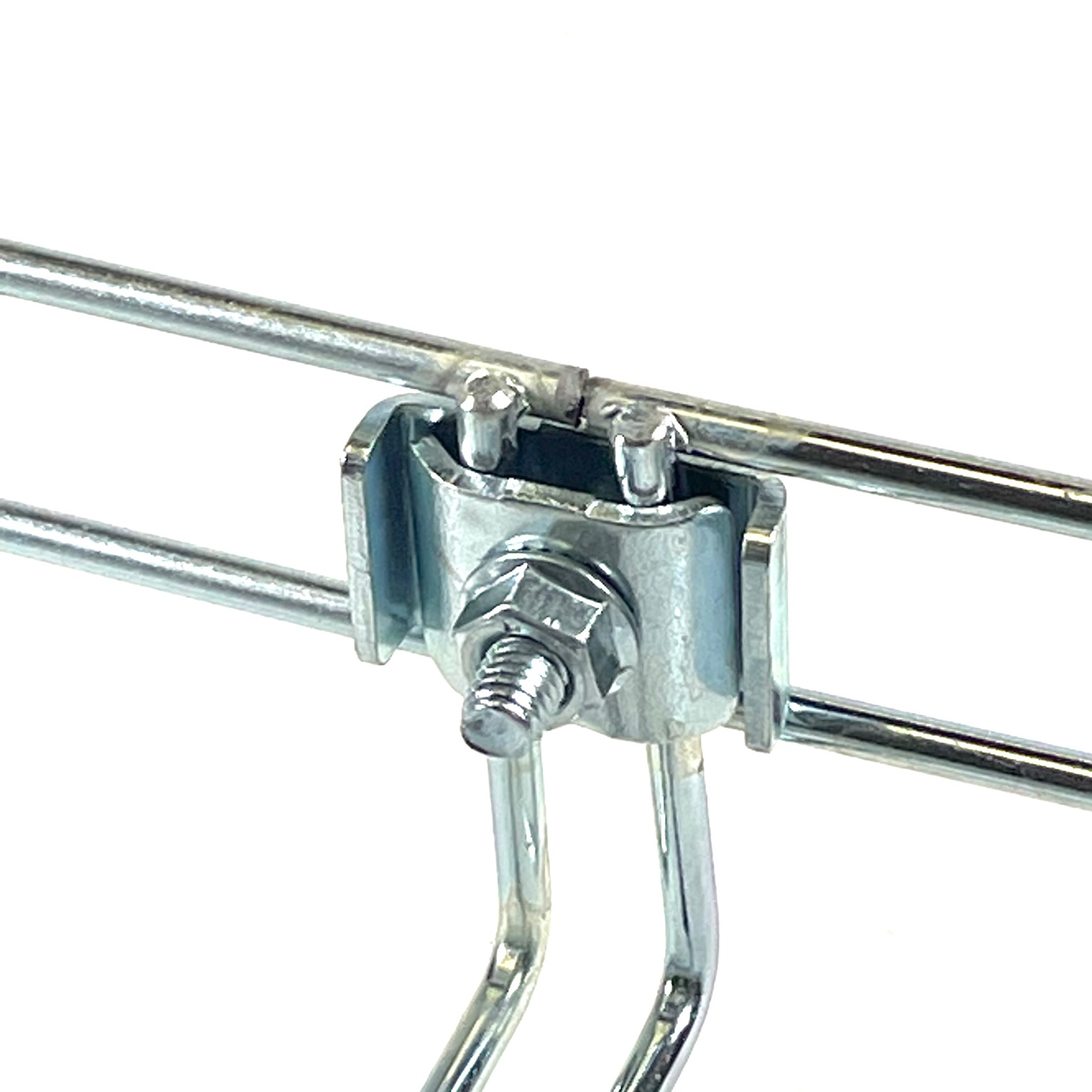

Joint Clamp For Wire Mesh Cable Tray,Cable Tray Connector with Carriage Bolt Flange Nut (4)

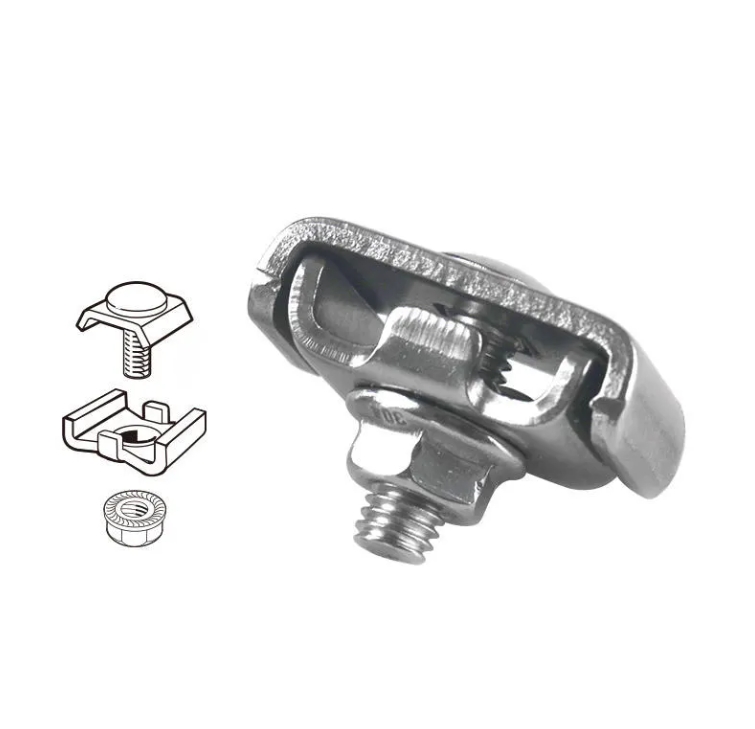

Cable Tray Splice Washer Kit, Mesh Wire Cable Tray Connector (3)

Stainless Steel Cable Tray Splice Washer Coupler Kit: Carbon Steel Cable Tray Splice

Features of Reinforced Joint Clamp for Wire Mesh Cable Tray

1. Sturdy Construction:

crafted from quality carbon steel, our wire mesh cable tray coupler kit stands out in the crowd; The silver material ensures durability and resistance to easy breakage, making it a preferred tool for various mesh panel projects

2. Anti Rust Feature:

This kit is electro galvanized to fight against rust and corrosion; It offers standout performance, especially for grid wall displays and panels

3. Easy Installation:

Our coupler kits present a smooth installation process; They come with a 3/4 inch carriage bolt that allows easy connection via hex nut tightening; This feature makes the coupler kits ideal for cable tray system installations

4. Ideal Measurement:

Reinforced Joint Clamp for Wire Mesh Cable Tray come with the ideal size and thickness- about 0.1 inch/2.5mm to accommodate wire diameters of 4-6mm; Designed to perfectly match your batten grid panels and wire grids

5. Suitable Hole Size:

With an ideal hole size of about 0.26 x 0.26 inch/ 6.5 x 6.5 mm, they provide a well fit and stability; This makes it easy to fit to your cable tray system without much hassle

How to install the Cable Tray Splice Washer Kit?

To install a Cable Tray Splice Washer Kit, start by aligning the cable tray sections and ensuring the ends are clean and flush. Position the splice washers over the connection points, aligning the pre-drilled holes on the trays. Insert the bolts through the holes and loosely thread the nuts onto them. Use a level to check alignment and adjust as necessary. Once aligned, securely tighten the bolts with a wrench, being careful not to overtighten. Finally, verify the connection for stability and ensure all components are securely fastened as per the manufacturer’s guidelines.
