HD indoor led display

80 0
Product details
What does a small pixel pitch LED display screen requires

Visual effect. Piva LED screen are always under the high-definition camera`s test, the refresh and color depth requirements is stringent. So the configuration is higher.

Priva LED PV series of HD led display screen has lighter cabinet weight. Front& back maintenance function. Also with modular accessories, it is much convenience for Maintenance. PV series LED display has following features and function.

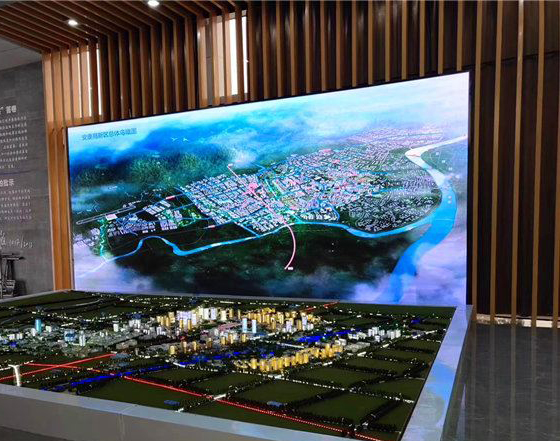

LED screen project

Features and benefits

1, lightweight, weighs 6 kg, installation up easily; ultra-thin, cabinet body is made of die casting aluminum, high strength, high tenacity, high precision which is not easy deformation during transportation and working;

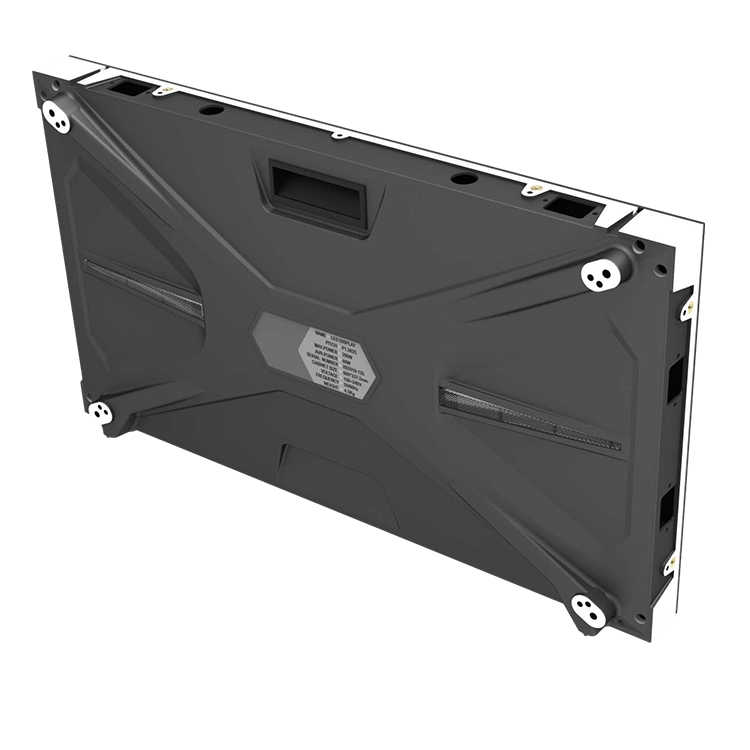

2, Support front & back maintenance. with modular accessaries.

1 Jpg

3, 16:9 golden cabinet ratio ;High precision cabinet

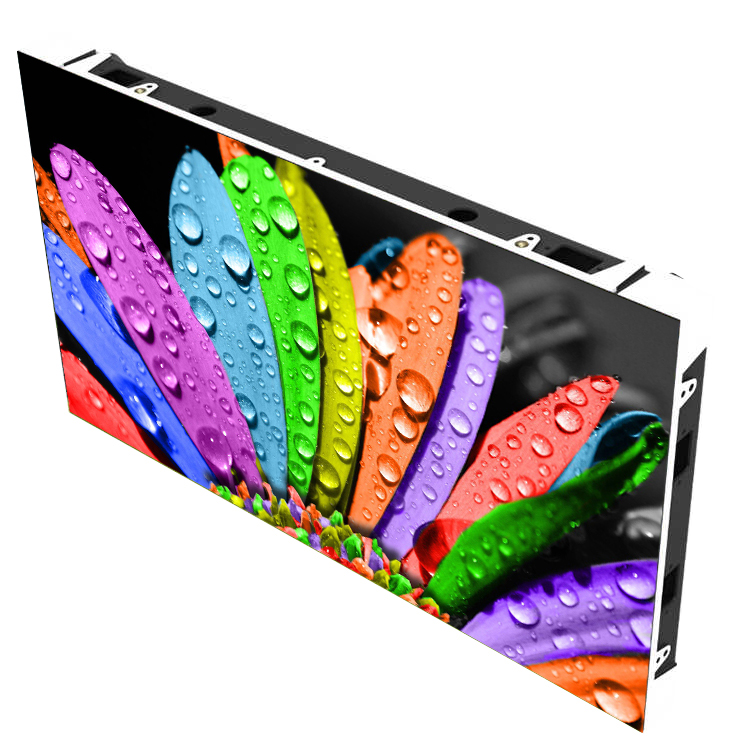

8 2 Small Pixel Pitch Led Screen


4, Smart module with calibration data ;power Redundancy&Signal dual backup


5, High refresh rate and nature color,Vivid picture effective

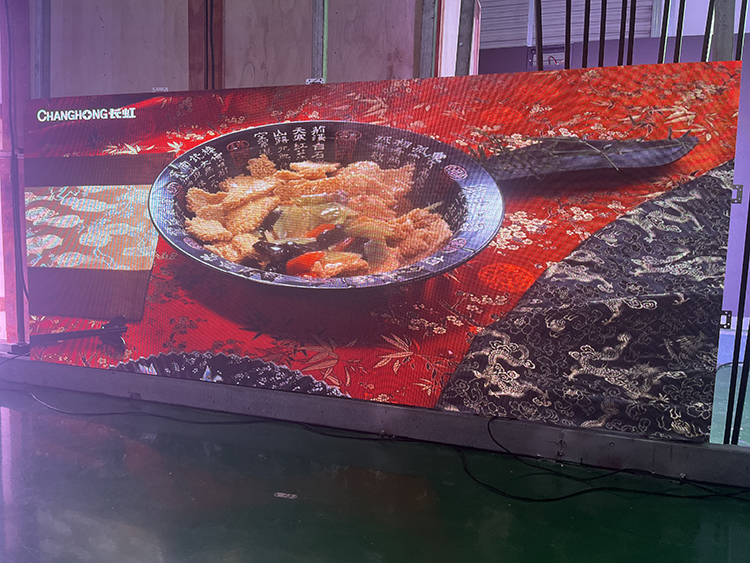

LED display screen 10



parameter:

Model PV1.25 PV1.56 PV1.875
Pixel Pitch 1.25mm 1.5625mm 1.875mm
Pixel Confguration SMD1010 SMD1010 SMD1515
Pixel Matrix Per Panel(dots/m2) 120*135 dots 96*108 dots 80*90 dots
Pixel Density 640000dots/m2 360000dots/m2 284444dots/m2
Panel Dimension(WxHxD) 600x337.5mm
Panel Material Die-casting Aluminum
Panel Weight(Kg/panel) 6kg
Color Depth(Bit) 14bit
refresh Rate ≥3840Hz
Scan Scan 1/30 Scan 1/32 Scan 1/30
Brightness >800cd/m2
Viewing angle 140℃
Viewing distance >1.5Meters >2Meters >2Meters
display color 16.7M
IP Rating IP30
AC Power input(V) AC110V~220V±10%
AC Power Frenquency(Hz) 50~60Hz
Max power (W/m2) 700w/m2
Avg power (W/m3) 240w/m2
Control Mode Synchronization controlled by PC
Date transmission CAT5/Optic Fiber
Controlling system linsn,Nova,Mooncell
Video signal input Composite,DVI,VGA,HDMI,HDSDI
Working Temperature(℃) -20℃~-65℃
Humidity(RH) 10%~90%RH
Life span 100,000Hrs
Pixel failing Rate 0.0001
Working Environment Indoor
2 Jpg


3 Jpg

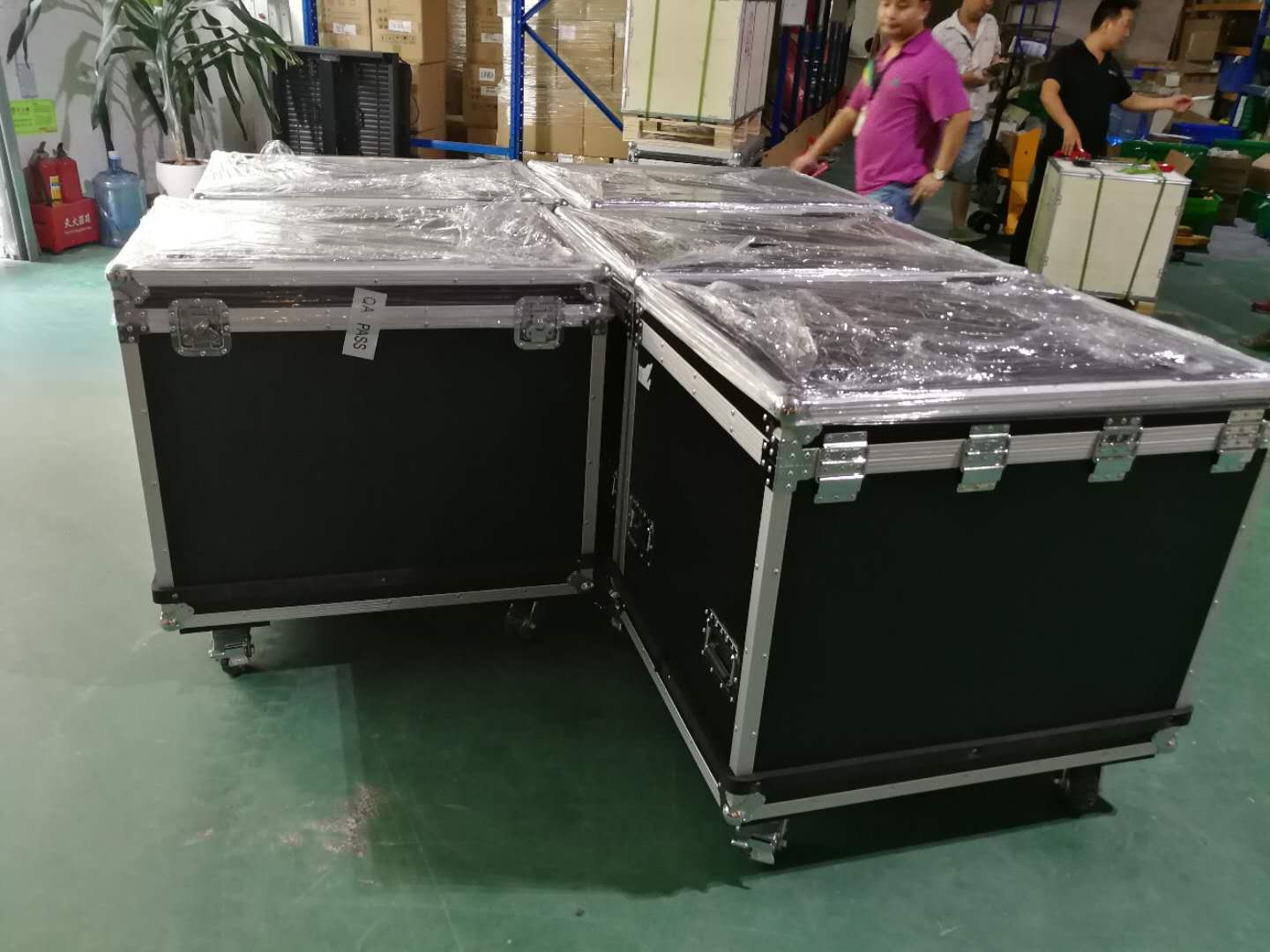

Flight case

LED Display Screen Flight case


Wooden case

Wooden case for led display


Company view

Factory from GZ

Office  photoPriva wokshop -lab
