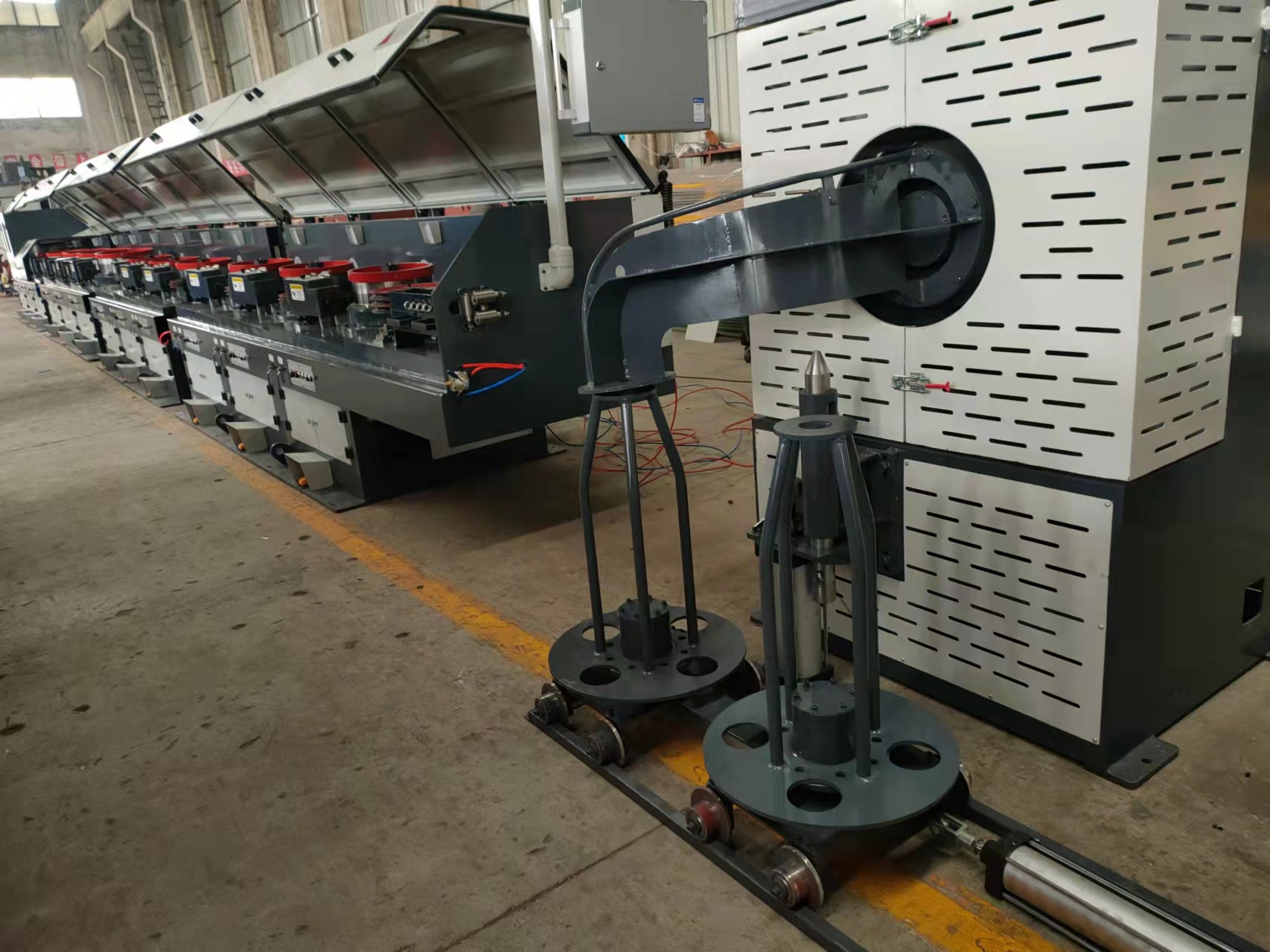

Stainless steel wire production machine line
1. The process flow (Ø5.5 mm) rod-----vertical pay-off-----film coating machine (with dryer)---LZ7/600 straight line drawing machine -wiping machine -washing machine---SG800 spool take up(Ø2.2mm)
2 vertical pay-off (with brake)--gas protection annealing furnace - headstand type coiler
3 vertical pay-off rod(2.2mm)-----straight line drawing machine LZ8/400 (to ￠0.7mm)with dancer - wiping machine+washing machine+tube dryer+SG800 take up machine.
Straight Line S.s Wire Drawing Machine stainless steel wire drawing machinery
I. Outline of product of stainless steel wire drawing machine
1. Product material: stainless steel wire drawing machiine.
2. Wire-in diameter:φ5.5mm
3. Wire-in strength:≤1250MPa；
4. Wire-out diameter:φ2.0mm；
5. Design max. speed:10m/s(heavy load low speed, light load high speed).
II. Stainless steel wire drawing machine parameter (wire drawing machinery)
steel wire drawing machine parameter
|
Specs (mm) |
No. Of Drafts |
Max. Inlet wire (mm) |
Min. Outlet wire (mm) |
Motor Power (KW) |
Max. Speed (m/s) |
Noise dB(A) |
|
Φ250 |
9-12 |
1.8 |
0.35 |
2.2-4 |
12 |
80-82 |
|
Φ350 |
6-12 |
3.5 |
0.6 |
7.5-11 |
20 |
80-82 |
|
Φ400 |
6-12 |
4.2 |
0.75 |
11-15 |
20 |
80-82 |
|
Φ450 |
6-12 |
4.6 |
0.85 |
15-22 |
18 |
80-82 |
|
Φ500 |
6-12 |
5.5 |
1.0 |
22-37 |
18 |
80-82 |
|
Φ560 |
6-12 |
6.5 |
1.3 |
22-45 |
18 |
80-82 |
|
Φ600 |
5-10 |
7.0 |
1.8 |
37-55 |
16 |
80-82 |
|
Φ700 |
4-9 |
8.0 |
2.4 |
45-75 |
12 |
80-82 |
|
Φ800 |
4-9 |
10 |
2.8 |
55-90 |
10 |
80-82 |
|
Φ900 |
4-9 |
14 |
3.5 |
75-132 |
8 |
80-82 |
If you are interested in the product, contact 2bvideo.com for more information for more information
