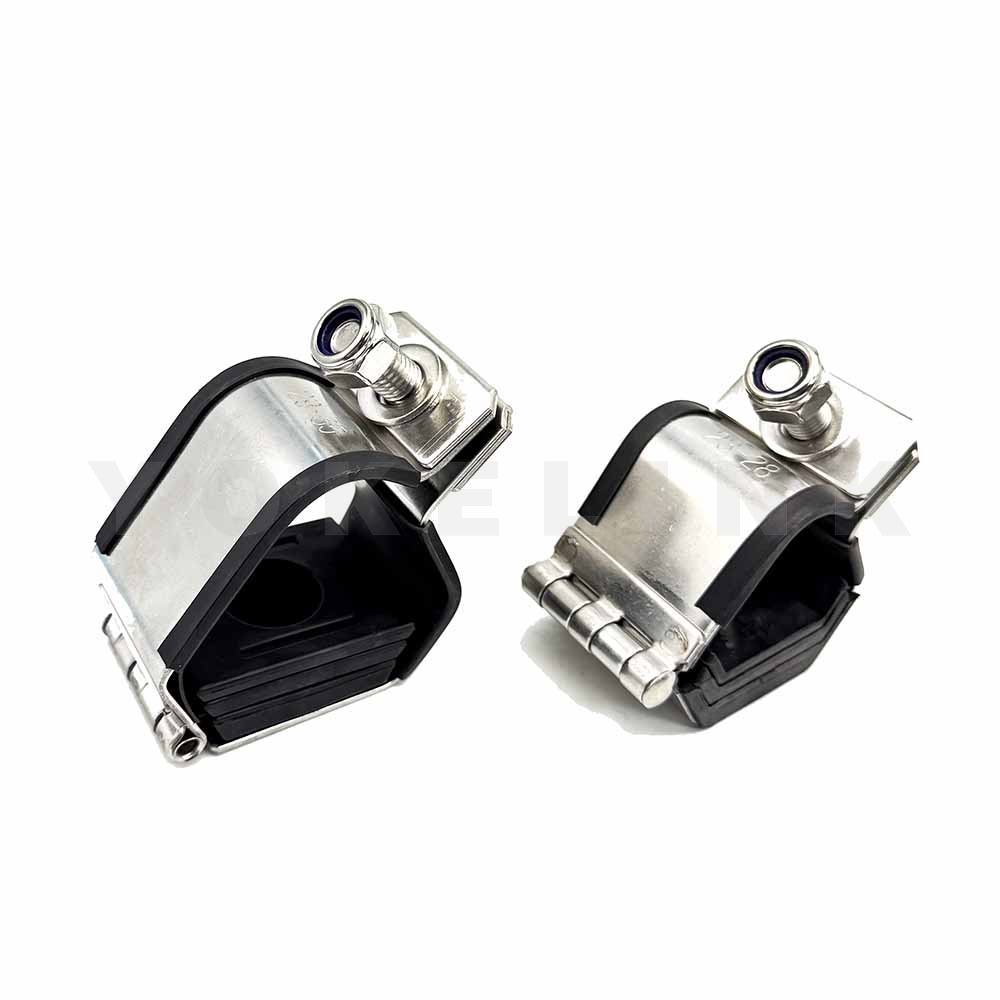

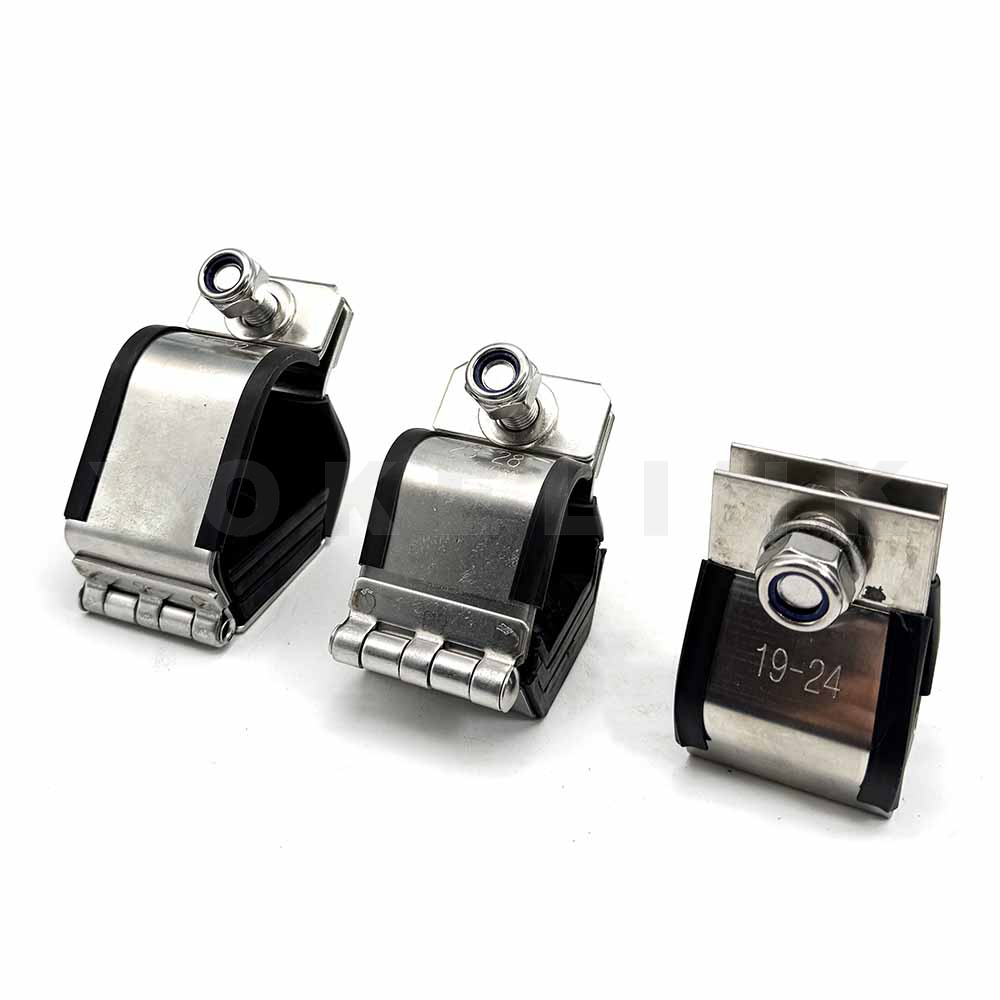

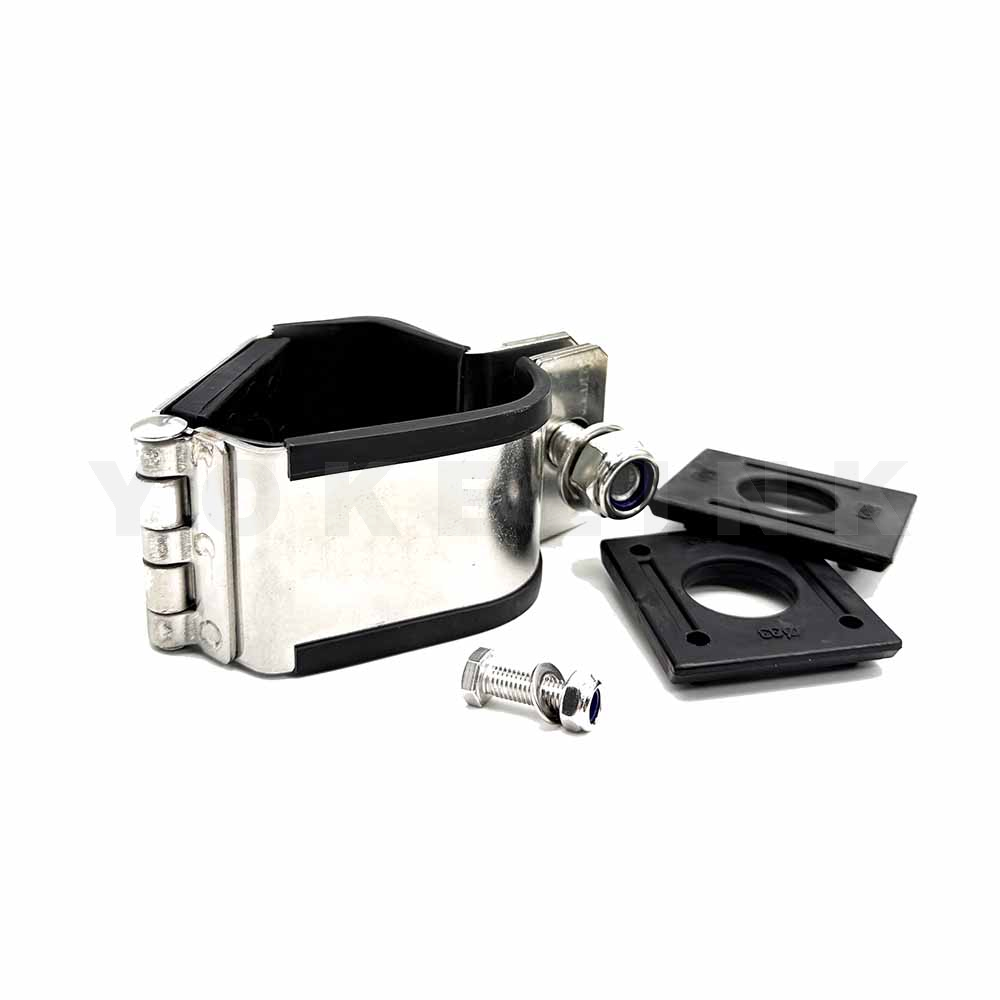

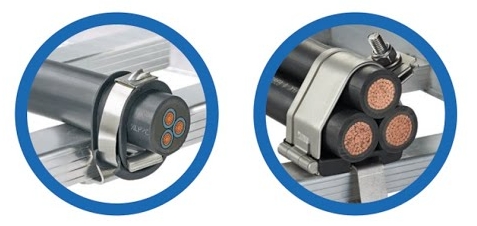

Trefoil & Single Cable Cleats

Cable Cleats are designed to support and retain your cables within your cable tray system in every conditions. More importantly, Cable Cleats prevent the damage in short circuit condition. Unfortunately, short circuit always happens, and when it do, it's destructive and dangerous to the cables and cable system. Yokelink Cable Cleats are one of the first lines of defense to help protect the person, the cables and cable system.

Cable Cleats Features:

1. Cleat Material: Composite

2. Metallic Frame: 50mm*2.1mm, marine grade, Non-magnetic 316L

3. Closure hardware: 316L SS M8, M10 or M12 bolt and Nylon Lock nut

4. Integral Pad: Low Smoke, Low Fume, Halogen Free

5. Tools Required: Wrench

6. Mounting Bolt: Provided with the Cable Cleat

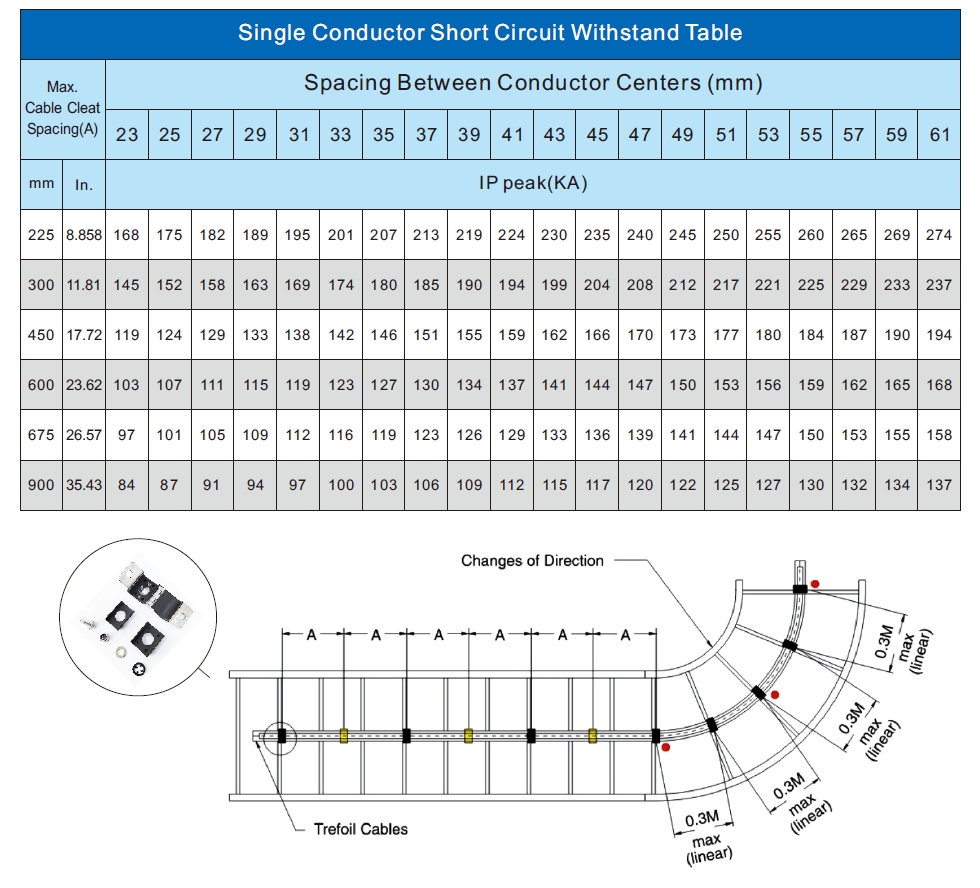

Trefoil Cable Cleats Specification

Stainless Steel Cable Cleats For Conductor Hardware (8)

How to select Cable Cleats?

1. Know the Cables

- Which type of cable is being used, Single or Multi-conductor?

- What is the outer diameter of Cables?

- What is the available short circuit current (RMS or IP Peak) of the cable?

- If a ground wire is installed in the cleats, know the outer Diameter of the ground wire .

2. Know the cable cleat System

- What is the cable formation, Single or Trefoil?

- What type of the cable tray is installed?

3. Determine the Cleat Space for Installation.

Buy Cable Cleats from Yokelink

Stainless Steel Cable Cleats For Conductor Hardware (7)

Stainless Steel Cable Cleats For Conductor Hardware (9)

Yokelink cable cleats ensuring durability in harsh environments. Cable cleat Designed to secure and organize cables, cable cleat prevent movement and damage, making them ideal for industrial, commercial, and residential use. Yokelink Cable cleat Available in sizes ranging from 10mm to 50mm and more, they accommodate various cable diameters. Easy to install and suitable for both indoor and outdoor applications, Yokelink cleats provide reliable, long-lasting cable management. Buy cable cleats from Yokelink for a secure, efficient solution!
