Product details

Electric servo cylinders have a range of benefits in various industries, since they are safe, efficient, and easy to use. An electric linear actuator uses the rotational motion of a low-voltage DC motor to effectively make products that can pivot and move in various directions.

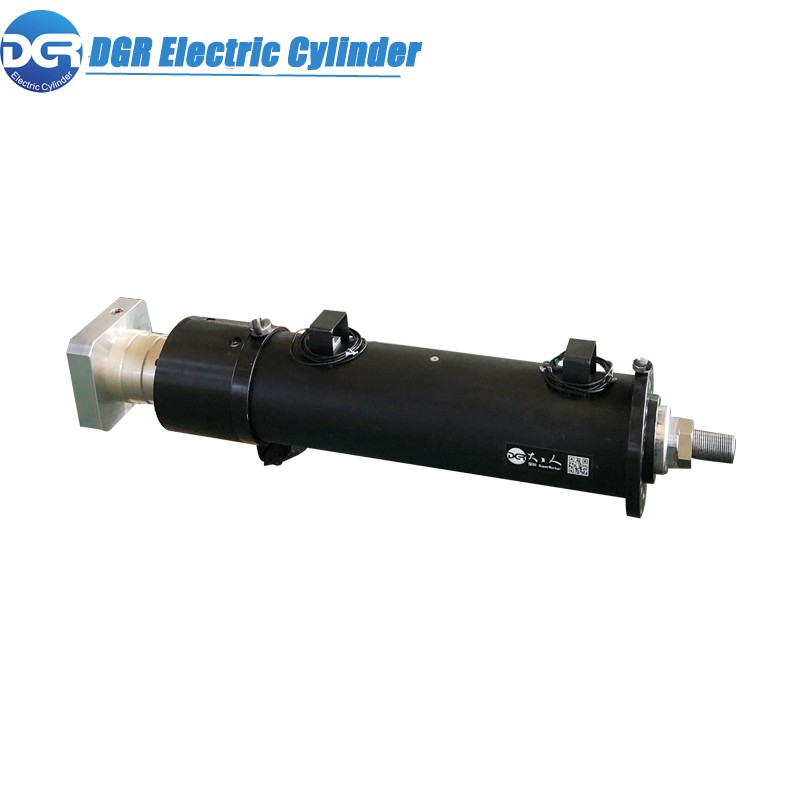

Electric Cylinder DGRHT50 can be worked in wet environment without getting rusty and ill-operated, so it has advanced protection capability. The inside of the cylinder body is a pair of high-strength tapered roller bearings that meet both thrust and tension conditions; It is equipped with anti-rotation structure; Electric Linear Automation for Applications can has different usage. With a proven track record of delivering consistent and reliable performance, this standard electric cylinder has established itself as a trusted and market-leading product.
24V 48V DC Linear Actuator:

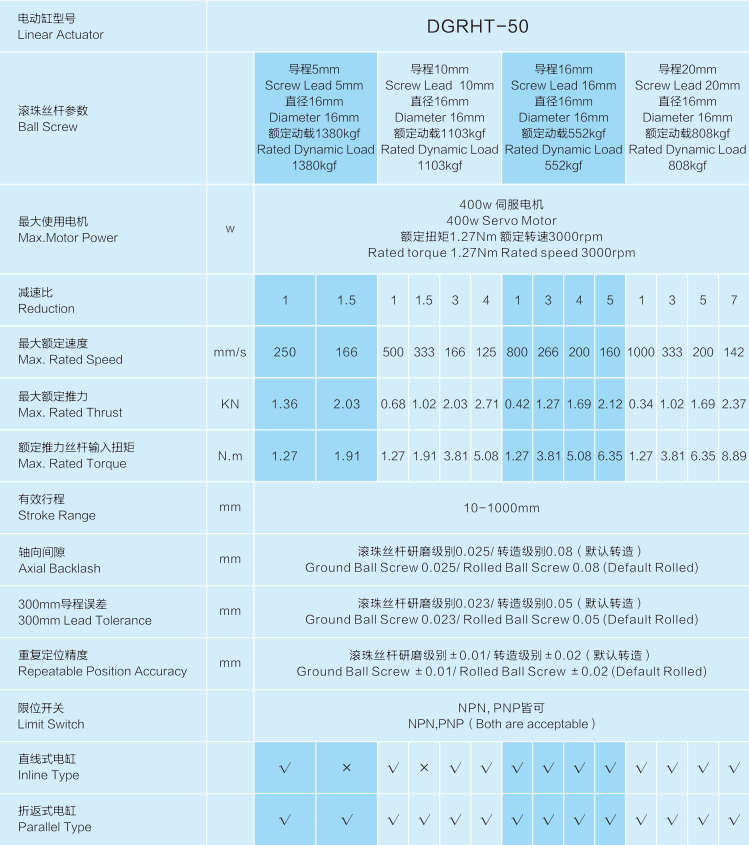

Its maximum rated speed reaches 166-1000mm/s, effective stroke 10-1000mm.

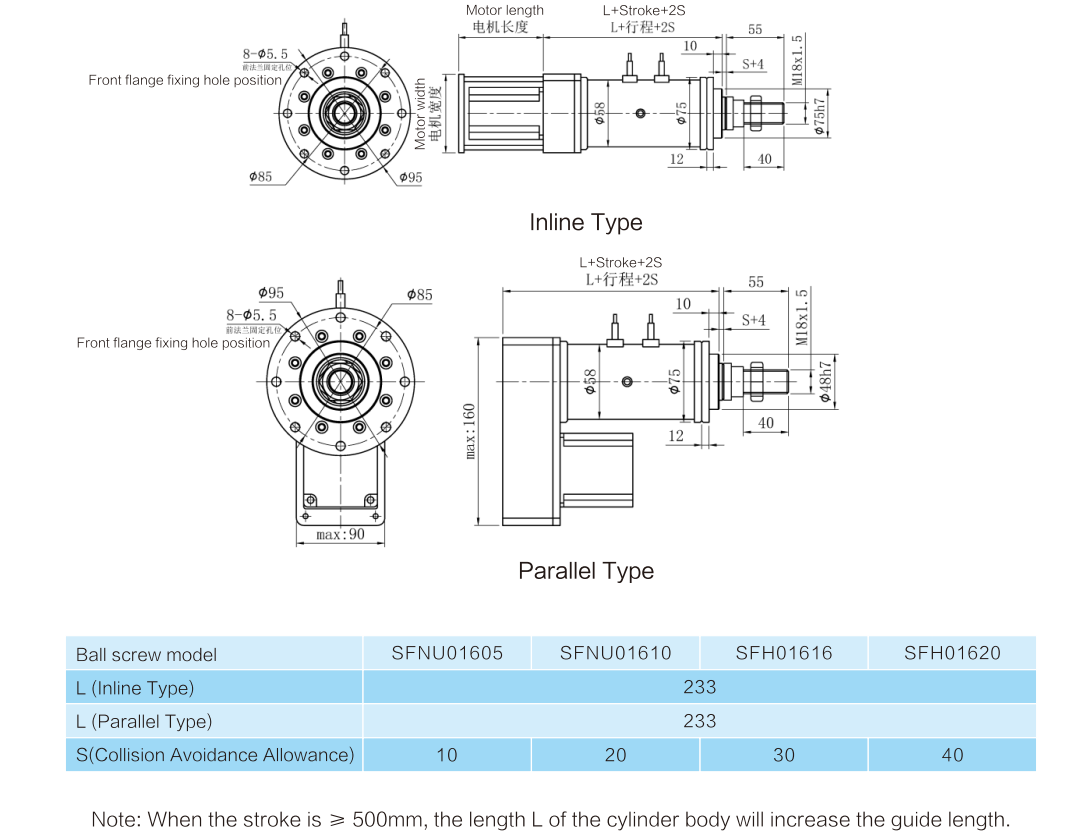

You can check the two types of the linear Actuator: Inline and parallel.
Take the three important factors into consideration: the speed, the stroke and the force

Note:
1.If you need drawings and life of ball screw, please consult customer service for details.
2.If the maximum stroke exceeds 1000mm,it is recommended to add a guide device.
3.The Parameters may be affected by different brands of motors,please consult customer service for details.

Features

1. High Accuracy

Precise position control with repeatability of up to 0.02mm.

2. High Reliability

Multiple, multiple security measures

3. Long Lifespan

Run over a distance of 100,000km

4. Wide Thrust Range

Select famous branded roller ball screws, ball screws, and lead screws which are made of high-quality materials for our electric cylinders in order to reach double the theoretical rated push-pull force.

6. Refined Design and Processing

A. The connection between the screw nut and the piston rod is rigid.

B. Snap fastener will be required to locate the part in its fixed position to avoid assembly errors that affect mechanical properties.

C. All screw threads are coated with screw locking adhesive after commissioning to ensure the equipment is stable and trouble-free.

D. Adopt domestic ball screw and bearing products, light load output, high-cost performance.

E. All heavy-duty cylinders use sliding key guides. (The square cylinders are using guided rod).

Applications

Due to its closed-loop servo control, low maintenance cost, and flexible configuration, electric cylinders are now widely used in entertainment industries, automotive industries, mechanical processing, and medical equipment that require precision control.

Electric servo cylinder(electric linear actuator) is widely used in all mechanical field to help realize automation. You can find them everywhere, like mechnical devices manufaturing factories, heavy duty industry, automated production lines, automotive industry, intelligent robot, medical industry, racing field(like racing simulator), entertainment industry, new energy field(like solar panel installation), printing industry(includs 3D printing), textile industry, packing industry, logistics field, etc.

Certification

FAQ

Q1. What are your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown wooden cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What are your terms of payment?
A: T/T 50% as deposit, and 50% before shipping. We'll show you the photos of the products and packages before
you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB.
Q4. How about your delivery time?

A: Generally, it will take 10-25 days to produce the products, and 5 days by air, 25 days of the ship by sea. The specific delivery time depends on the items and the quantity of your order.
