Product details

Solar pump Inverter

solar water pump, also known as photovoltaic water pumps, are the most attractive water supply method in areas with abundant sunlight around the world, especially in remote areas lacking electricity. By utilizing the freely available and inexhaustible solar energy, the system operates fully automatically, starting work at sunrise and ceasing at sunset. It requires no human supervision, and the maintenance workload can be minimized. It is an ideal green energy system integrating economic efficiency, reliability, and environmental benefits.Solar water pumps operate through photovoltaic water - pumping inverters. A ,solar pump inverter is a photovoltaic water - pumping system that uses the electricity generated by the photovoltaic array to drive the water pump. The entire system mainly consists of a photovoltaic array, a photovoltaic water - pumping inverter, and a water pump. The solar water pump with solar panel is an opto - mechatronic system that has developed rapidly in recent years. It uses the electricity generated by solar cells, and through devices such as maximum power point tracking, conversion, and control, it drives a DC, permanent - magnet, brushless, sensor - less, double - potted stator - rotor motor, or a high - efficiency asynchronous motor, or a high - speed switched reluctance motor to drive a high - efficiency water pump, lifting water from deep underground to the ground for farmland irrigation or for human and livestock drinking.

Datasheet

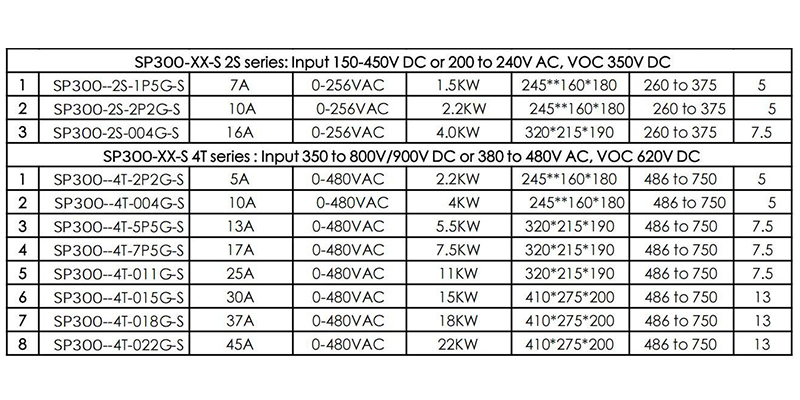

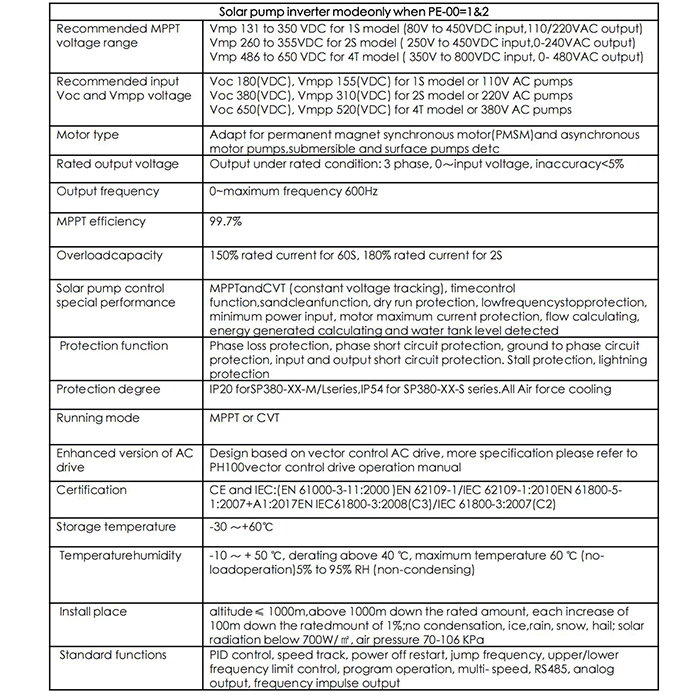

Technical Specification

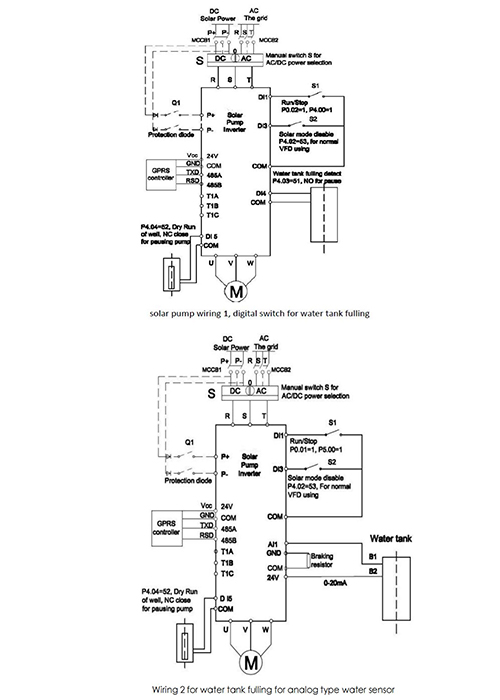

Solar Pump System Diagram

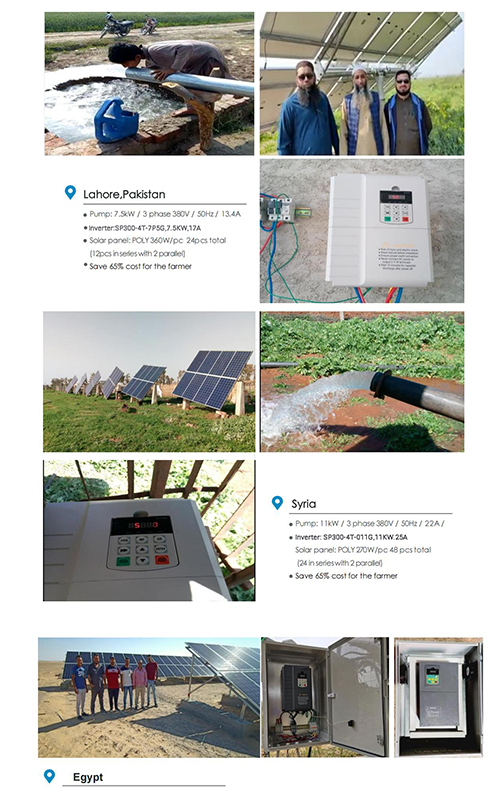

Application
