Plano convex lens is employed in microscopes and magnifying glasses to converge all the incoming light rays to a specific point.
The lens is used as a lens system in cameras as they focus light rays for a clear image.Lens has medical purposes as well, like the correction of hyperopia It is used in a projector
Specifications:
Material: N-SF3
Diameter: 22.5mm
Diameter Tolerance:+0.0/-0.05mm
Center Thickness: 5.5mm
Thickness Tolerance:+/-0.1mm
Focal Legnth Tolerance:+/-1%
Surface Quality:40/20
Centration:<3 arc minutes
Clear Aperture:>90%
Bevel: Protective bevel as needed
Coating:Upon your request

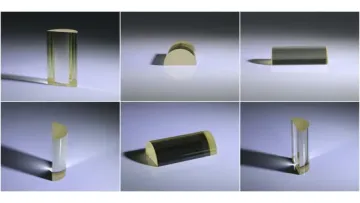

Realpoo Optics is a professional manufacturer of optics. Optics includes spherical lens, aspherical lens,diffraction grating and flat lens. Spherical lens such as cylindrical lens, ball lens, convex lens etc. Flat lens includes optical window and mirror. Spherical can be offered with AR coating or without coating.
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
Main Product:
Convex Lens,
Prism ,
Cylindrical Lens,
Laser module,
Concave Lens,
Collimator Lens
