SANY Group SY26U 2.5t Agricultural Earth Digging Machinery
Zero tail swing radius and independent boom swing allow operation in extremely confined spaces
The independently developed intelligent control system matches pump output to available engine power for greater hydraulic system efficiency and lower fuel consumption.
Load sensing hydraulic system for excellent efficiency and performance.
Yanmar engine satisfies the emission standards of final Stage IV in EU and America.With all excellent engine spare parts and hydraulic
Engine Upper Gasket Kit
Our mini excavator owns beautiful appearance, high configuration, superior performance, low fuel consumption, wide operating range. It is suitable for loosing soil of vegetable green house, campus greening of municipal departments, digging the hole for tree planting of Fruit-land Nurseries, concrete pavement crushing, sand-gravel material mixing, construction work on the narrow place and so on. Use the quick hitch can add the attachment tools like auger, hydraulic hammer, loading bucket, gripper and so on.It can reduce maintenance and operating costs. Liberate the workforce, improve the mechanization, low investment, high return.Hydraulic Crawler Excavators,Diggers Excavator 13.5Tons,Hydraulic Main Pump all qith excellent quality .
Specifications
Model
SY16C
SY16C(T4f)
SY18C(T4f)
SY26U(T4f)
SY35U(T4f)
SY35U
SY50U(T4f)
Arm Digging Force
9.2KN
9.2KN
9.2KN
14.39KN
18.2KN
18.2KN
22.9KN
Bucket Capacity
0.04m³
0.04m³
0.04m³
0.06m³
0.12m³
0.12m³
0.15m³
Bucket Digging Force
15.2KN
15.2KN
15.2KN
27.4KN
30.4KN
30.4KN
32.5KN
Carrier Wheel on Each Side
/
/
/
1
1
1
1
Engine Displacement
0.854L
1.267L
1.267L
1.267L
1.6L
1.642L
2.19L
Engine Model
3TNV70
3TNV80F
3TNV80F
3TNV80F
3TNV88 Tier 4 final
3TNV88
4TNV88-PSY
Engine Power
10.3kW
14.6kW
14.6kW
15.2kW
18.2kW
19.6kW
29.1kW
Fuel Tank
23L
23L
23L
34L
40L
50L
78L
Hydraulic Tank
21L
21L
21L
30L
40L
40L
52L
Operating Weight
1.85T
1.75T
1.85T
2.76T
3.86T
3.78T
5.3T
Radiator
3.8L
3.8L
3.8L
2.4L
6.7L
6.5L
4.2L
Standard Boom
1.81m
1.81m
1.81m
2.1m
2.54m
2.54m
2.7m
Standard Stick
1.13m
1.13m
1.13m
1.3m
1.4m
1.4m
1.5m
Thrust Wheel on Each Side
3
3
3
3
4
4
4
Gradeability
58%
30°
30°
25%
58%
30°
30°
Rated power
10.3/2200 kW/rpm
14.6/2400 kW/rpm
14.6/2400 kW/rpm
15.2/2500 kW/ rpm
20.4/2200 kW/rpm
18.2/2400 kW/rpm
29.1 / 2400 kW/rpm
Max. torque
64.7 Nm / 1800rpm
64.7 Nm / 1800rpm
64.7 Nm / 1800rpm
64.7 Nm/1800rpm
94.2 Nm / 1320rpm
94.2 Nm / 1320rpm
144.9 Nm / 1500rpm
Transport dimensions
3575*980*2420
3575*980*2420
3575*980*2420
4285*1550*1620
4915*1720*2515
4915*1720*2515
5390*1960*2630
SPECIFICATION:
1. 1.3 tons, 1.5 tons, 1.6 tons, 1.8 tons, 2 tons, 3 tons smaller diggers can be equipped with high precision pilot control system.
2. Adopting Japan NACHI / American ETON hydraulic motor, small size, light weight, high efficiency and long service life.
3. Use Shimadzu gear pump / DOOSAN load sensitive variable displacement piston pump for continuous operation for up to 8 hours.
4. The boom can swing from side to side with high flexibility to meet the needs of small space operations.
5. Optional with tail or no-tail to meet the construction needs under different conditions.Also the Front End Loader 1.5Tons,
Road Construction Graders.
6. Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.and the smaller loader.

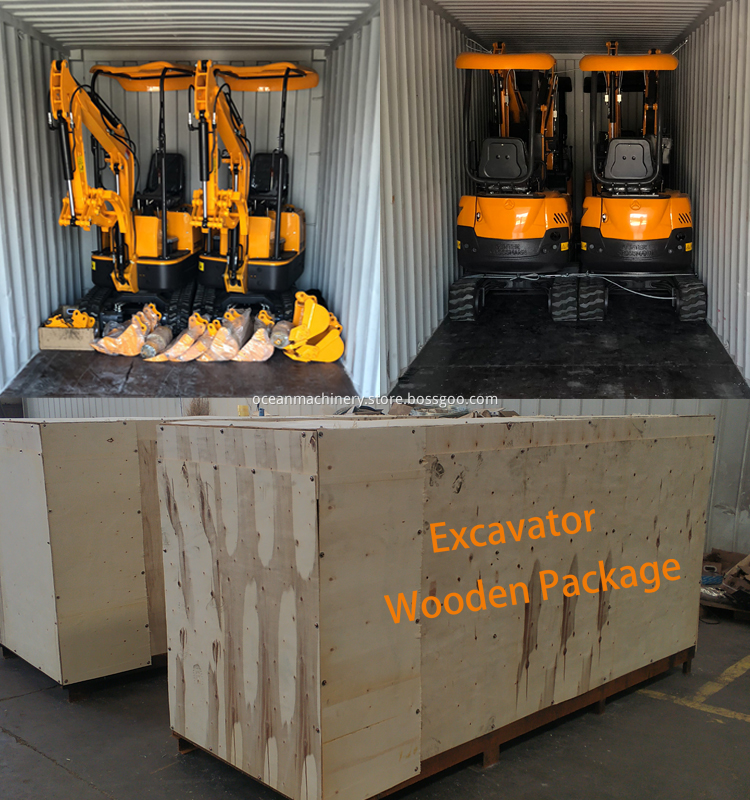

Packaging :
