Tilt Back Fully Automatic 12-28" Tire Changer with Three Positions Pressing Helper Arm
The YuanMech Car Tire Changer Machine is our "professional tire dealer" or "large car dealership" assist arm tilt back wheel clamp tire changer. This Automatic Tire Changer is packed with several user based features to ease up the process of tire changing. The carefully designed parts are durable and fail-safe. The C9583 is a top-of-the-range tire changer model designed to work on low-profile and large-sized steel or alloy rims.
The power assist helper arm will safely secure the edge of the tire, moving along with the activated turntable. The bead will almost always seat without a struggle. Makes changing the toughest tires a one-man job.
Product details:
1. Powerful side-mount bead breaker breaks the toughest beads.
2. Adjustable blade offers multi-angle tire capacity.
3. The bead breaking blade returns smoothly when it detaches from the tire.
4. Quick deflation valve as standard.
1. An helper arm will help with stiffer sidewalls, run-flats and other low-profile tires.
2. Three positions for pressing the tires to ensure high efficiency in mounting and demounting process.
Combination of powerful lifting disc and press roller
This rubber bump-stop reduces shock loading and wear on the cylinders.
Scientific structure, robust and strong column base support.
High quality, explosion-proof filter, lubricator and regulator.
1. An air pressure dump valve lets you release air from the tire.
2. Foot-controlled tire inflator. Inflate tires without lifting a finger.
The pedals' high responsiveness prevents tire tears and considerably speeds up operations. And all pneumatic locks and switches are easy to reach.
1. The motor has strong copper rotor construction, high-quality bearings, thermal-cool insulation and durable rolled steel frames.
2. The gearbox never needs maintenance and has a massive oil and grease reservoir for improved heat dissipation and component lubrication.

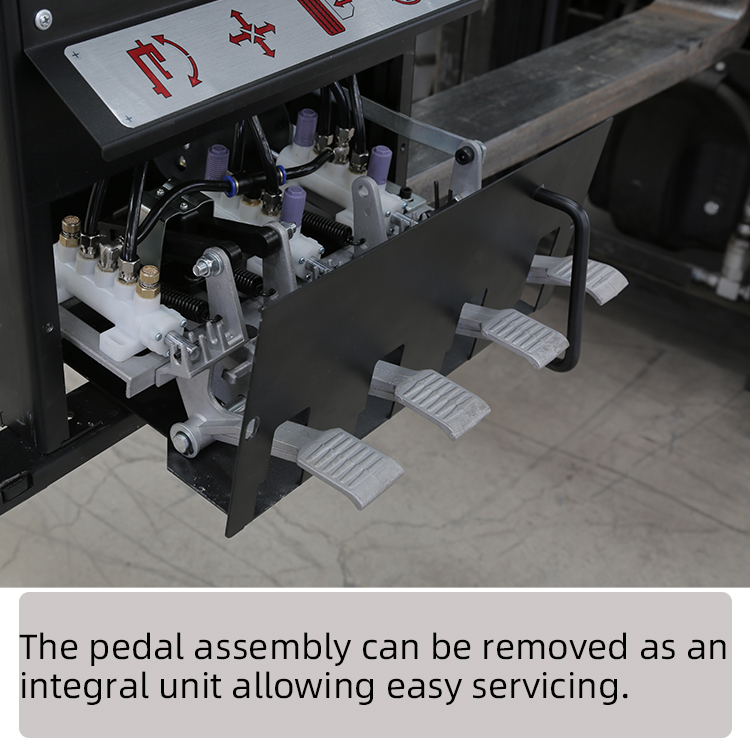

The pedal assembly can be removed as an integral unit allowing easy servicing.
1. The high-torque electric turntable features increased speed and reversible direction for quicker tire removal and installation.
2. High strength and rust proof clamps provide firm hold and grip.
Stainess steel and aluminum pneumatic cylinders reduce machine vibration and keep friction low for long life operation.
Accessories included
Product specifications:
Product name
Tilt back tire changer with right side helper arm
Model
C9583
Bead breaking force
2800kg
Voltage
110V /220V /240V / 380V /415V 50Hz / 60Hz
Outside clamping
12-26"
Inside clamping
14-28"
Power
0.75kW / 1.1 kW
Working pressure
8-10 bar / 117-145 psi
Warranty
14 Months
Motorcycle ATV adapter
Optional
Bead blaster
Optional
Certificate
CE Approved
Wheel width
3-15”
Max wheel diameter
1100mm
Customer Service ability
It is a tradition that we take care of our customers after the sale with a huge parts inventory and Great Customer Service. The big plus is that we offer what can be described as a comprehensive after-sales service as we have technical staff proficient in English, easy to read service manuals and online Cloud service where you can view and download multiple resources regarding machine trouble shooting and operation. Our service and guidance is available 24/7 to keep your equipment working correctly and as expected in every way.
We also have tire shop tools and equipment and tire changer wheel balancer sets, welcome to consult and buy.
There are also Tire changer Accessories and Spare parts in the store,Welcome to consult.
