3d Drainage Geonet For Slope Protection
3d Drainage Geonet For Slope Protection is a new type of geosynthetics.
Which is widely called as 3d Composite Drainage Networks Geonet or 3d Composite Drainage Geonet.

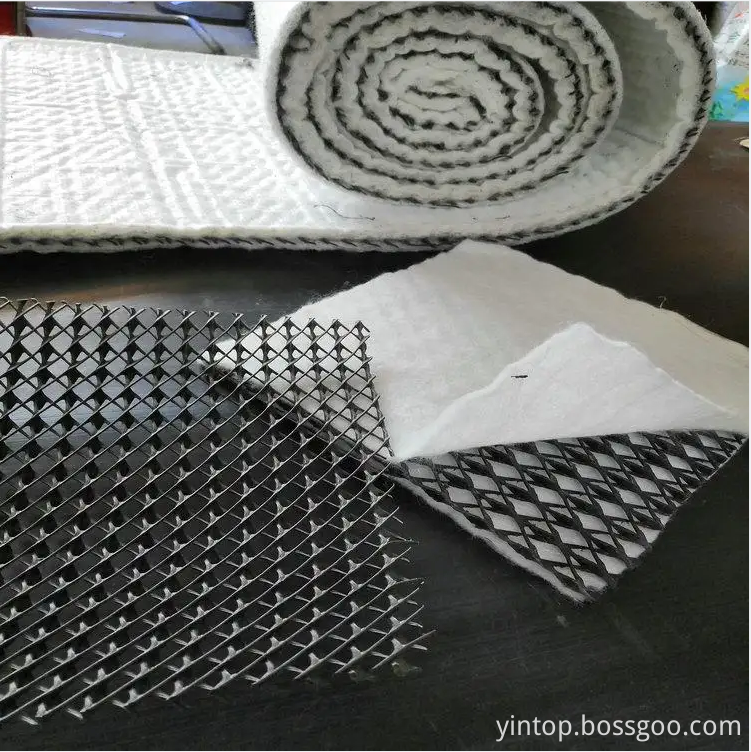

It’s made of a tri-dimension geonet coated with geotextile on both sides.
Network core consists of a tri-dimension thick vertical rib and a rip on top and bottom .
It can drain underground water quickly,there is a protection system,which can block the capillary water under high load.
At the same time, it can also reinforce and isolate of foundation.
The Network Core is made by the HDPE Material,same as Shade Net,Virgin Material keep this Net much longer lifetime.
Applications:
1,Landfill drainage;
2, Roadbed and road drainage;
3,Railway drainage, tunnel drainage, underground structure drainage.
4,The retaining back wall drainage,
5,gardens and sports grounds drainage
|
Drainage Network Core |
Units |
Specification |
|||
|
Unit weight |
g/m2 |
750 |
1000 |
1300 |
1600 |
|
Thickness OV=20kpa |
mm |
5.0 |
6.0 |
7.0 |
7.6 |
|
Hydraulic conductivity |
m/s |
K x 10 -4 |
K x 10 -4 |
K x 10 -3 |
K x 10 -3 |
|
Elongation |
% |
<50 |
<50 |
<50 |
<50 |
|
Tensile strength ( core network) |
KN/m |
8 |
10 |
12 |
14 |
|
Geotextile |
g/m2 |
200-200 |
200-200 |
200-200 |
200-200 |
If you are interested in the product, contact 2bvideo.com for more information for more information
