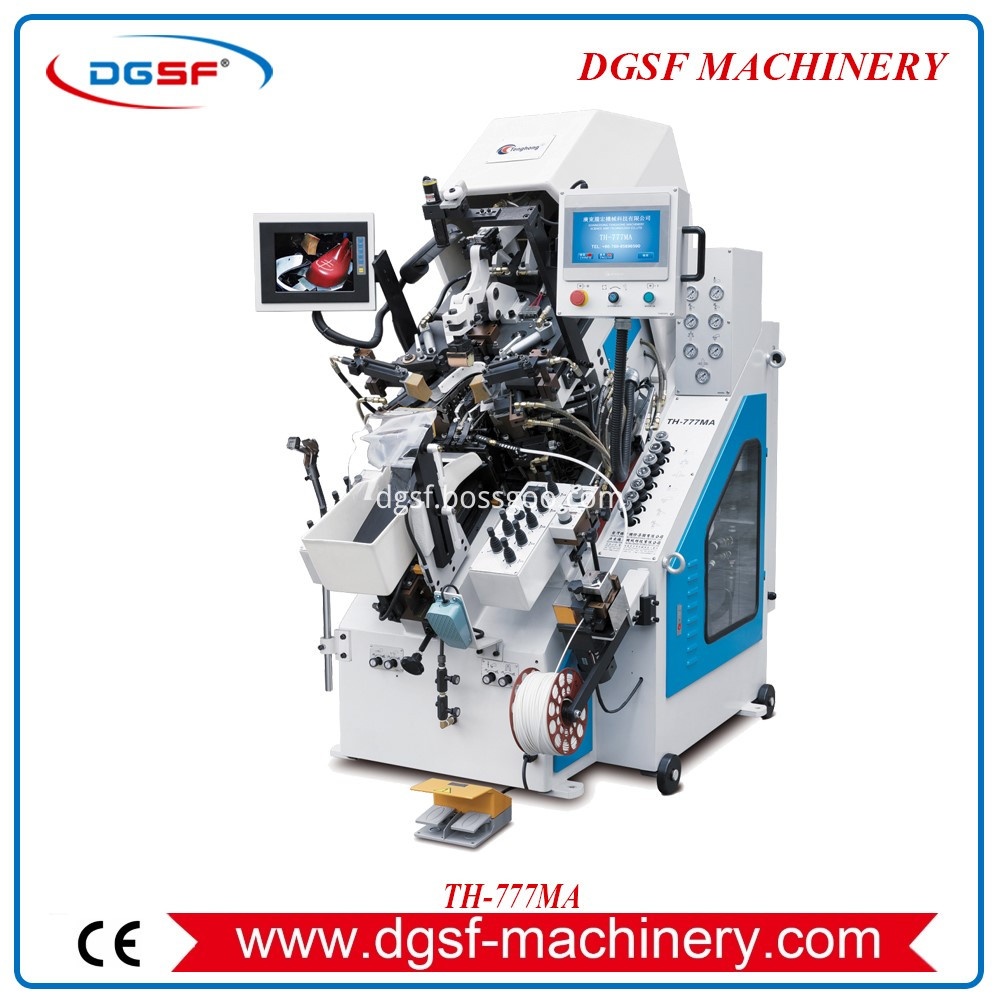

9 Pincer Computer Memory Control Automatic Cementing Toe Lasting Machine TH-777MA
Product Description
◎The insole and vamp of TH-777MA Automatic Shoe Lasting Machine do not need to glue manually in the beginning because of the automatic cementing system. It can reduce labour and vamp will stick with insole tightly after the oven forming section to keep the perfect shape.
◎The Lasting Machine first pincer and the second set of pincer are designed of easy-tooling structure, quickly changed it without tools
◎The Toe Lasting Machine second pincer`s angle memorized by linear wire potentiometer could deflect angle according to shoe shapes.
◎Designed of three-tier pincer trajectory structure, the assembly can shift from each side, matching the size of the first pincer for an easy-tooling structure without tools.
◎Accurately memorized the position of pincer trajectory, it uses wire potentiometer importing from Italy to change positon to data.(Including switch positon memory of second pincer`s angle)
◎The Shoe Lasting Machine pincer trajectory could automatically/manually switch to the left or right foot and displayed by the signal light.
◎With scale displayer, the newly designed of wiper downward position electric adjustment could adjust without any tools quickly and get perfect lasting position according to different types of shoes.
◎The riding position and the starting position of the last supporter could be adjusted on the side of the machine with numerical displayer.
◎The brand new design of five pointed toe-band, to perform better-lasting result with easy tooling mechanism.
◎Parameters memory of wiper movement used wire potentiometer importing from Italy to change wiper`s position to data, and it accurately memorized lasting movement of different shoes.
◎Importing from Japanese FUJI`s colorful monitor interface and with up to 300 sets of memory of shoe models, it memorized all the parameters of lasting.
Product Specifications
Model TH-777MA
Amount of pincers 9
Automatic cementing YES
Motor power 2 HP
Heating power 1.75KW
Hydraulic pressure 50kg/cm²
Oil Pressure 50 kg/cm2
Capacity 1500-1800 pairs
N.W. 1150KG
G.W. 1200KG
Voltage 380V / 220V 50-60HZ
Hydraulic oil capacity 110 liters
Machine size(LxWxH) 980X1750X1950 mm
Packing size(LxWxH) 1080x1850x2150mm
HS.code 84532000
Country of origin Made in China
Product Images
