Product details

Product Introduce

Our company have many kinds of steel plate, galvanized sheet is one of them.Galvanized steel plate is to prevent corrosion on the surface of the steel plate, prolong its service life, coated with a layer of metal zinc on the surface of the steel plate, the galvanized steel plate is called galvanized steel plate.

Galvanized sheet and strip steel products are mainly used in construction, light industry, automobile, agriculture, animal husbandry, fishery, commerce and other industries. The construction industry is mainly used to manufacture anti-corrosion roof panels and roof grilles for industrial and civil buildings; In light industry, it is used to manufacture the housing of household appliance shells, civil chimneys, kitchen appliances and so on . In automobile industry, it is mainly used to manufacture corrosion resistant parts of cars, Agriculture, animal husbandry and fishery are mainly used for food storage and transportation, meat and aquatic products frozen processing tools, etc. It is mainly used for the storage and transportation of materials and packaging tools.

In addition, our company also produces wear resistant steel plate and bridge steel plate.

Product Description

The following are some specifications that we often export, for reference only, if you have special requirements, we can customize, we will have professional designers to provide you with the most satisfactory style.

Product name	GI / GL / Galvanized steel sheet / Galvalume steel sheet
Standard	ASTM, Bs, EN, DIN, GB, JIS, ASME, etc.
Grade	Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S450GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
Application	Villas ,townhouse, apartments ,tourist destination building ,and roof conversion project
Thick	0.12-4.0 mm / BWG / AWG or as your request
Width	20-1500 mm or as your request, Normal width is 914/1000/1219/1250/1500 mm
Zinc Coating	30~600 G/M²
Surface Structure	Regular spangle,Minimum spangle, Zero spangle, Big spangle
Surface Treatment	Chromated/Non-Chromated, Oiled/Non-oiled, Skin pass
Package	Waterproof paper & plastic film & iron packing & bunding, or as customer's requirement
Description	Galvanized steel is mild steel with a coating of zinc. The zinc protects the steel by providing cathodic protection to the exposed steel, so should the surface be damaged the zinc will corrode in preference to the steel.

bse metal type	Grade	CHEMICAL COMPOSITION %
bse metal type	Grade	C	Si	Mn	P
cold rolled steel sheet	DC51D+Z (St01Z, St02Z, St03Z) , DC51D+ZF	≤0.10	-	≤0.50	≤0.035
	DC52D+Z (St04Z), DC52D+ZF	≤0.08	-	≤0.45	≤0.030
	DC53D+Z (St05Z), DC53D+ZF	≤0.08	-	≤0.40	≤0.030
	DC54D+Z (St06Z), DC54D+ZF	≤0.01	≤0.10	≤0.30	≤0.025
	DC56D+Z (St07Z), DC56D+ZF	≤0.01	≤0.10	≤0.30	≤0.025
hot rolled steel sheet	DD51D+Z (St01ZR, St02ZR)	≤0.10	-	≤0.50	≤0.035
hot rolled steel sheet	DD54D+Z (St06ZR)	≤0.01	≤0.10	≤0.30	≤0.025

TYPES OF STEEL PLATE

As there are different sizes, there are different types of steel plate: stainless steel (commonly known), high-carbon, low-carbon, or alloy steel plates. Each of these types of steel plate are used for different applications, some may be household items while others are much larger, like buildings or tanks. For example, at Clifton, we sell AR400,AR450, and AR500 steel plates (amongst others). These are abrasion resistant carbon steel plates, which is the most prominent type of steel we have at Clifton.

HOW IS STEEL PLATE MADE?

High temperature steel is rolled into sheets, where the steel gains strength. Multiple layers of steel are compressed together to create a single piece of steel plate, which can then be cut or burned to the specific size needed. The type of steel created is determined based on the composition of elements used in the molten metal. Check out our post on11 elements of steel and what they do to learn more about what how different elements affect certain properties of steel.

Specifications

Whether steel qualifies as plate or sheet depends on the specification used for certification. There is a large overlap in popular thicknesses between plate and sheet, but steel plates are offered in a much broader range of sizes.

Common plate specifications:

ASTM A36: a very popular structural steel specification.
ASTM A572 and A656: these specifications define HSLA (high-strength low-alloy) grades.
There are also specifications written for specific applications such as weathering grades (A588, A606) for atmospheric corrosion resistance, floor plate steel (A786), and steel produced for bridge applications (A709).
Plate specifications are not limited to ASTM; other governing bodies and OEMs write specifications for steel plate.

At Steel Warehouse, our steel plate specifications include, but are not limited to ASTM, SAE, and Euronorms from 3/16” up to 12” thickness.

There are many other grades of steel plates and sheets with specialized properties. If you need it, we can get it!

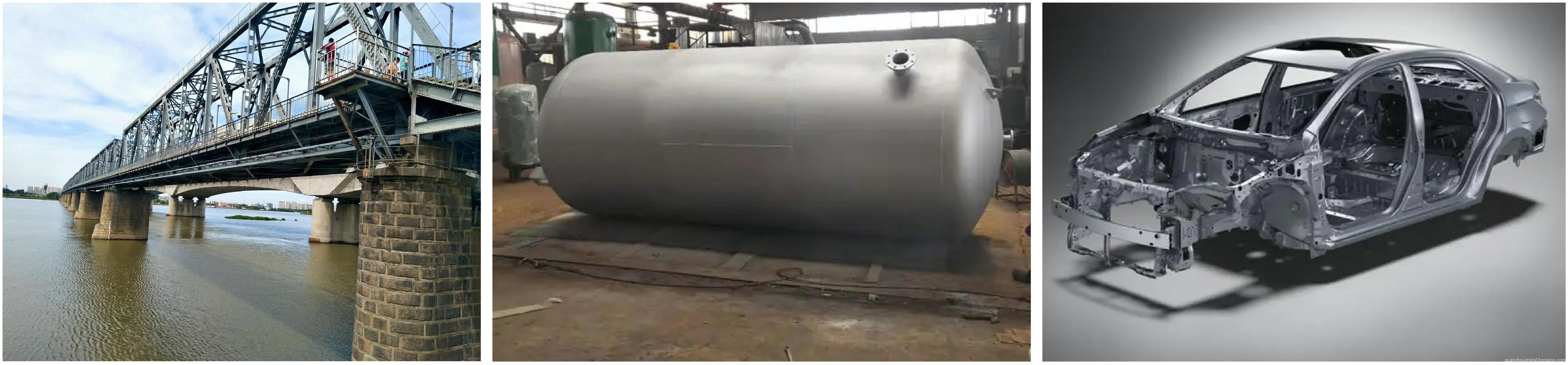

Steel Plate Industries & Applications

Steel plate can be used in a variety of industries and applications, as it is a very versatile and commonly used form of steel. Some common industries and applications include

Construction:commonly used for structures like bridges

Heavy Equipment/Machinery: commonly used in construction and earthmoving equipment, cranes, and more

Automotive: steel plate can be used in automotive construction

Agriculture:typically used for agricultural equipment like harvesters, plows, and tillers

Defense: steel plate produced to military specifications can be used in armored tanks, personnel vehicles, aircraft carriers, and more

Aerospace:aircraft-quality plate steel can be used for the machine tools and other equipment used to fabricate aircraft parts

Pressure Vessel: pressure vessel plate is a specific type of steel plate used for pressure vessel storage containers

Packaging And Transportation

We offer different modes of transport depending on the customer's destination: rail transport and ship transport，etc.The Shipping Mark shall consist of: Trade mark, Seller's name, Product name, Applicable standards,Specifications, Package No., Contract No., Heat No., Production date, Weighing method, Net weight, Gross Weight, Consignee and Protection symbols, etc.
