Double cold and double hot sweeping outside counter moulding machine HZ-626B
Machine is used for shoe back part in sweeping to outside making process;
1. This machine is especially. According to the different models of the shoes and the different making methods, the operation is easy. What we need to do is just changing the cutter, which can achieve the procedures, such as entering into the procedure of making the wooden shoe last, method of pulling the upper into shoe last, method of upper sewing and method of upper aversion. The machine is the one fixed with multiple functions.
2. This machine employs the personified design. The molds, the cutter, the working method, and the changing operation are easy and convenient. The effects the shaping is excellent.
3. The down stretching procedure of the clips employs the curve degree of the back heels. The cubic shape of the back heels is average and the angle Vis accurate and is not out of shape when the shoe surface is shaped.

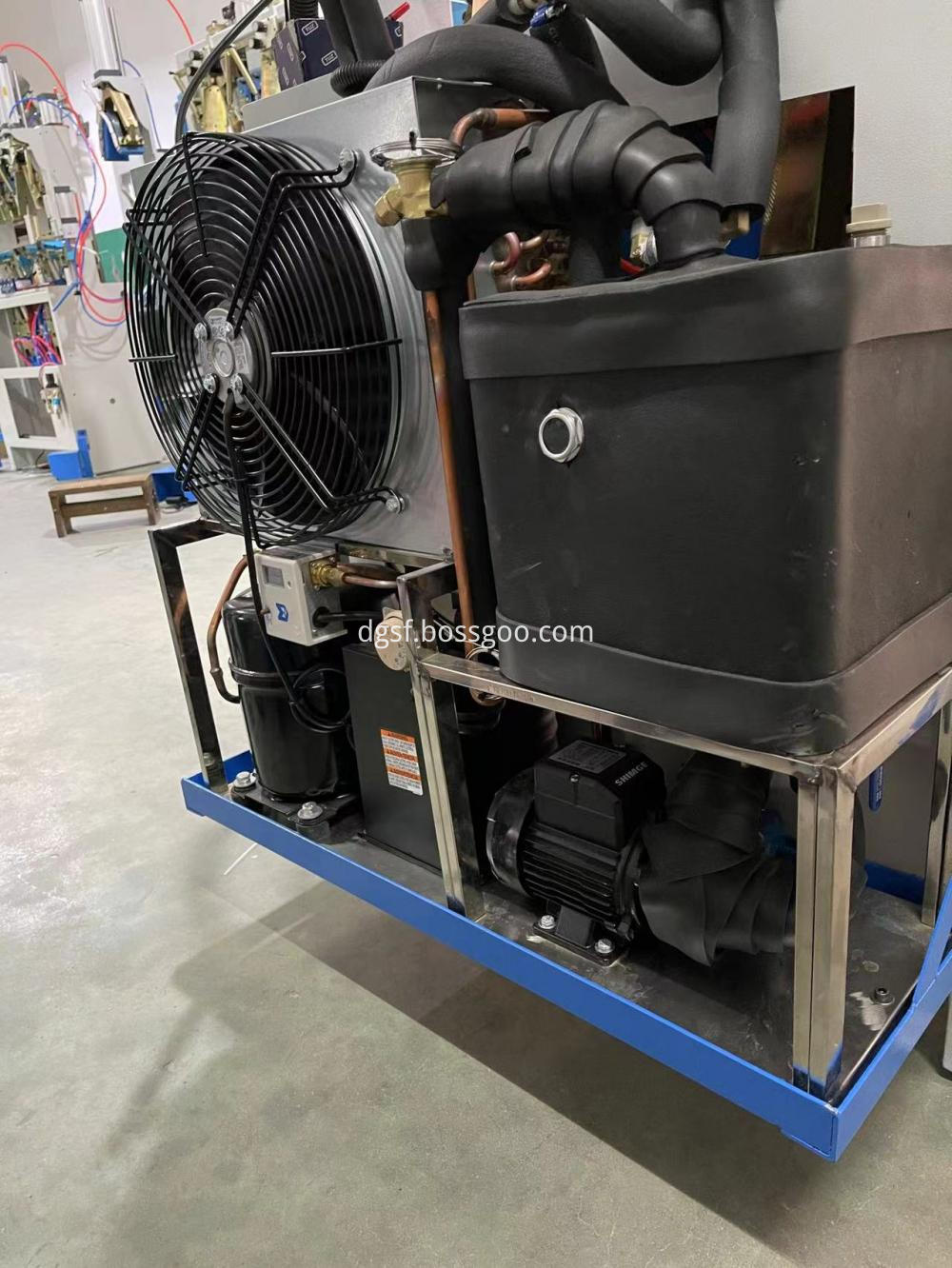

4. The freezing system of this machine employs the circulation of the closed model, using the frozen liquid. The freezing is very quick.
5. The freezing mold of this machine can incline outside, which makes the placement easier. And it is fixed with the correction lighters, which makes the shaping more convenient.
Model No. HZ-626B
Cold mold type Plastic
Hot mold type Rubber
Controlling system Without PLC
Hot station 2hot
Cold station 2cold
Dimension (LWH) 1560x850x2000(LxWxH)mm
Packing Size(LWH) 1600x980x2200(LxWxH)mm
N.W. 570KG
G.W. 610KG
Voltage 220V/50Hz
Power 2.7KW
Production 1100 pairs/8 hours
Air pressure 0.6Mpa
HS.code 84522900
Country of origin Made in China
