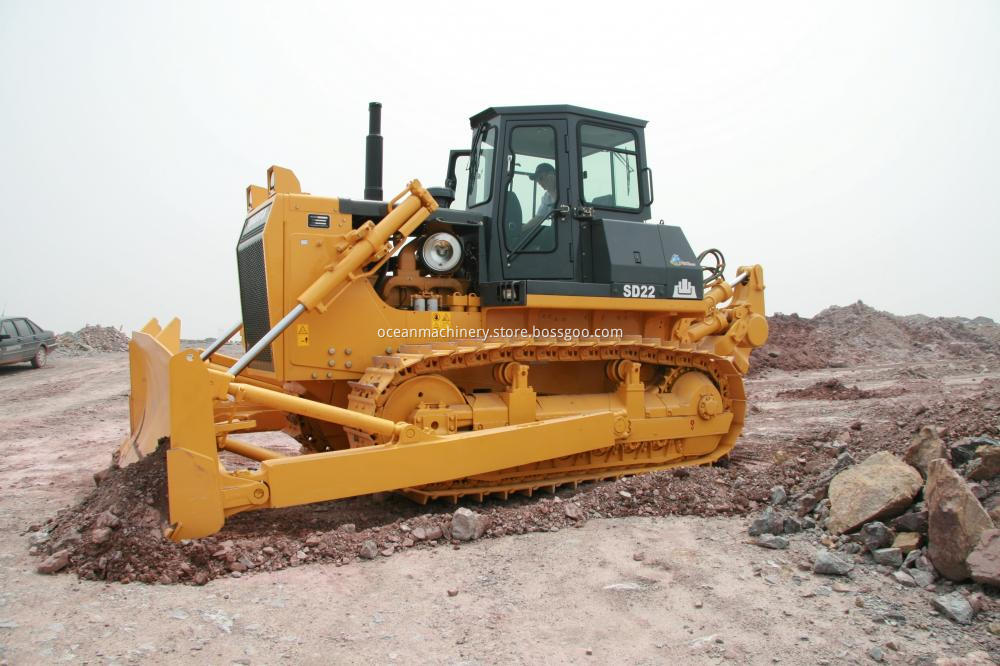

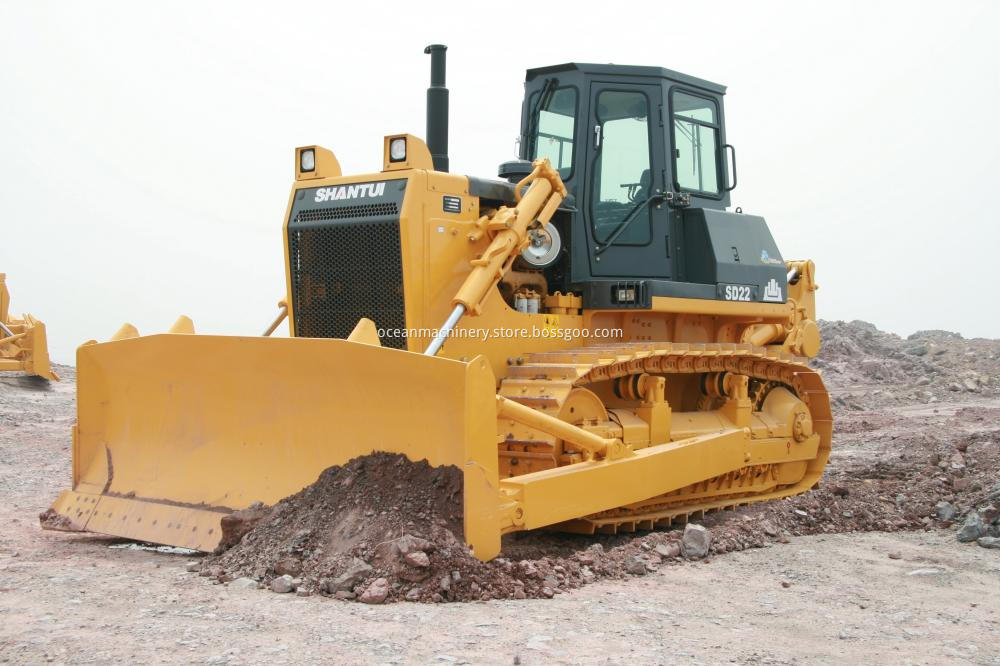

Shantui SD22 Dozer sales with 220hp
Bulldozer is a kind of earthwork construction machinery which can excavate, transport and discard rock and soil. For example, it is used for building dump, leveling automobile dump, gathering dispersed ore and rock, leveling working plate and building site, etc. It can be used not only for auxiliary work but also for main mining. For example, the stripping and mining of sand deposits, the traction and boosting of scrapers and ploughs, and the reduction of stripping step height with other earthmoving machinery in the non-transportation mining method.Toghter with the Custom Excavators,180Hp Motor Grader
and other road machinery ,our bulldozer with play a good effective when working .
Advantage:
1:Flexible operation and convenient rotation
2:The required working face is small ,can have worked toghter with heavy excavators ,dump trucks etc .
3:Fast speed
4.Some engine spare parts ,Bulldozer Spare Parts,engine spare parts for free .
Rated parameters:
|
model |
Cumming NAT855-C360 |
|
type |
turbo charged,inter cooled,in-line,4-cycle |
|
NO. Of cylinders-bore X stroke |
6-139.7x152.4mm |
|
piston displacement |
14010ml |
|
flywheel horsepower |
235kw(320hp) |
|
rated revolutions |
2000r/min |
|
Max. Torque |
1440N.M/1440r/min |
* The crawler bulldozer adopts three forward gears and three reverse gears, power gear shift, planetary gear, multi-plate clutch, hydraulic
combination, and forced lubrication gearbox with fast and easy operation, high drive efficiency, and high reliability.
* Central drive: includes spiral bevel gear, one-stage deceleration, and splash lubrication with high drive power, high
reliability and low noise.
* Steering clutch: includes wet type, multi-plate type, spring compression type, and normal joint type with easy operation and reliable separation.
* Steering brake: includes wet type, floating type, direct clutch type, hydraulic power assisted type, and linkage operation with steering clutch, with easy operation and easy adjustment.
* Final drive: includes two-stage deceleration of straight gear, and has configurations of standard type and wet-land type according to different working conditions.and all the engine spare parts ,Engine Upper Gasket Kit with excellent quality .
and we have other dump trucks and pile drivers Pile driver price ,also can contact with me have a negotiation .
Packaging and shipping :
Working condition:
