Product details

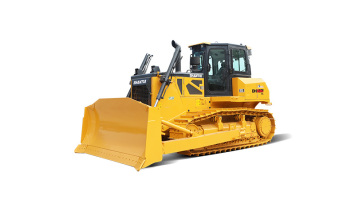

SHANTUI Construction machinery track type DH17 bulldozer price for sale

* This bulldozer with Weichai engine and high-efficiency fuel injection pump features high torque, high performances, high parts universality, and low maintenance cost.
* The electronically controlled static pressure drive system equipped can automatically adapt to the load variation and provide best bulldozing speed under different working loads.
* The intelligent matching technology can achieve best working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~15%.


The accurate control can realize the bulldozing operations in narrow spaces.
* The chassis system features long ground length, high ground clearance, stable traveling, and excellent trafficability and the semi-U blade equipped features powerful operation capability.
* The optional three-tooth ripper and traction frame are available to meet the diversified operation needs.


Dh17 Crawler Bulldozers 1 Jpg




Technical Specifications
Engine
Model & type
Weichai VP10G190E354(CHINA II) Weichai ViD1 0G190E214(CHINA I)
Gross pover
140/1 88/1900 KW /HP/rpm
Net pover
127/170/1900 KW /HP/rpm
Piston displacement
9.726 L
Number of cylinders
6 -126 X 130 mm (bore X strolæe)
Maximum torque
900 N·m@1400-1 600 rpm
Walking
hydraulic
system
Type
Electronic control
Traveling pump (Rexroth)
2
Traveling motor (Rexroth)
2
Traveling system pressure
42 Mpa
Travel speed
Forward
0-10km/h
Reverse
0-10km/h
Undercarriage
system
Carrier rollers
2 each side
Track rollers
7 each side
Width of track shoes
510/610 mm
Pitch
203 mm
Hydraulic
System
Type
2 way bhydraulic pilot control +1 way electric bhydraulic hybrid control
Maximum pressure
21 MPa
Working pump (Parker}
1
Main valve (Hydrocontrol)
1
Blade
Blade type
Straight tilt b lade/ Semi-U Blade
Dozing capacity
4.5/4.7 m3
Blade width
33 88/3400 mm
Blade height
1149/1200 mm
Maximum drop below ground
520 mm
Maximum lfting height
1010 mm
Riipper
(Optional)
Ripper type
Three shank ripper
Maximum dgging depth
475 mm
Maximum lift above ground
570 mm
Maximum tilt
460 mm





Shantui bulldozer factory display




Packaging & Shipping



All the crawler bulldozer series will work smoothly toghter with other machinery ,like truck,wheel loaders ,motor graders ,road roller etc.

Welcome your new inquiry! We all the time treat customer like our family !


The company is mainly engaged in Shantui bulldozer accessories, Komatus accessories   ,Caterpillar ,Doosan ,Hitachi other top brand machinery , including undercarriage track assembly series, hydraulic torque converter, hydraulic gearbox, steering clutch, final drive gear, rollers, supporting wheels, drive parts .
We can offer the construction machinery parts including
Engine Spare Parts,Diesel Fuel Injector,Cummins Cylinder Block,Engine Upper Gasket Kit
Bulldozer series:
Shantui SD16 , SD22, SD32 SD42, Komatus D50 D60 D65 D85 D155 D275 D355 D375 D475 and other bulldozers supporting rollers, support rollers, guide wheels, knife angle blades, various covers, final drive accessories, ripper accessories, push rods and shovel heads, etc.
Excavator series:
Komatsu PC60.PC130.PC200/220.OC300.PC360.PC400 series excavator pins, bushings, cylinder piston rods, rollers, guide wheels, tensioning devices, buckets and accessories, hoses and hard pipes, etc. Accessories.
engine:
Cummins, Shangchai, Weichai engine parts.
