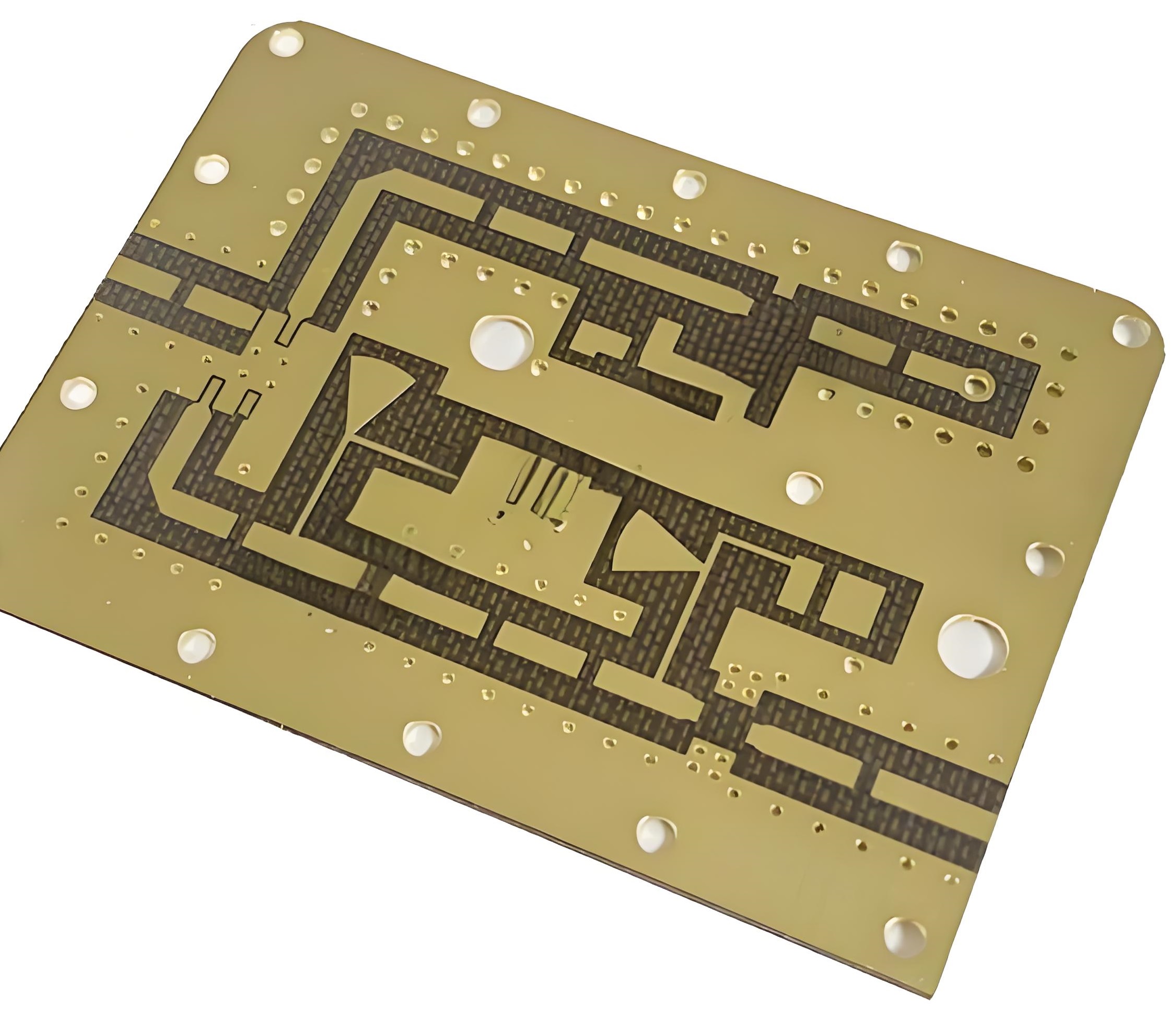

Taconic RF-35 high frequency circuit board
Product Name: Radar PCB
Material: / Ceramic PCB
Quality standard: IPC-6012
Dielectric constant: 2.0-16
Layers: 1 Layer - 70 layer
Thickness: 0.254mm - 6.0mm
Copper thickness: H/H-1OZ
Surface technology: Silver(Can choose Gold or OSP)
Application: Communication radar PCB, detection radar PCB
Product Details
Taconic rf-35 benefits:Low cost, Excellent peel strength, Exceptionally low DF, Low moisture absorption, Very high thermal reliability
Taconic rf-35 applications : Filter, coupler, splitter, combiner and mixer, Antenna, High power Amplifier, TMA, TMB, LNA, Repeater, Passive components, Medical scanners
1. RF-35 is the organic ceramic laminate material in TACONIC product ORCER.
2. It is a reinforced glass material based on glass fiber cloth, which is a combination of TACONIC’s ceramic filling technology and glass fiber coated PCB technology.
3. RF-35 is the best choice for low-cost, high-volume commercial microwave and wireless frequency applications.
4. The glass transition temperature of RF-35. Over 315 degree Celsius.
Taconic RF-35 material properties table.
5. RF-35’s ultra-low water absorption and low loss factor minimize the phase shift in the frequency range.
6. The dimensional stability of RF-35 is due to the use of glass fiber cloth in its design and development.
7. RF-35 PCB materials, generally single-sided or double-sided 1/20Z, 10Z and 20Z thick electrolyte copper foil. Different sizes of plates can be selected according to requirements.
8. Taconic RF-35 1/20Z and 10Z copper foil boards, even if standard epoxy materials are used, have excellent peel strength and can be reworked at any time.
If you are interested in the product, contact 2bvideo.com for more information for more information
