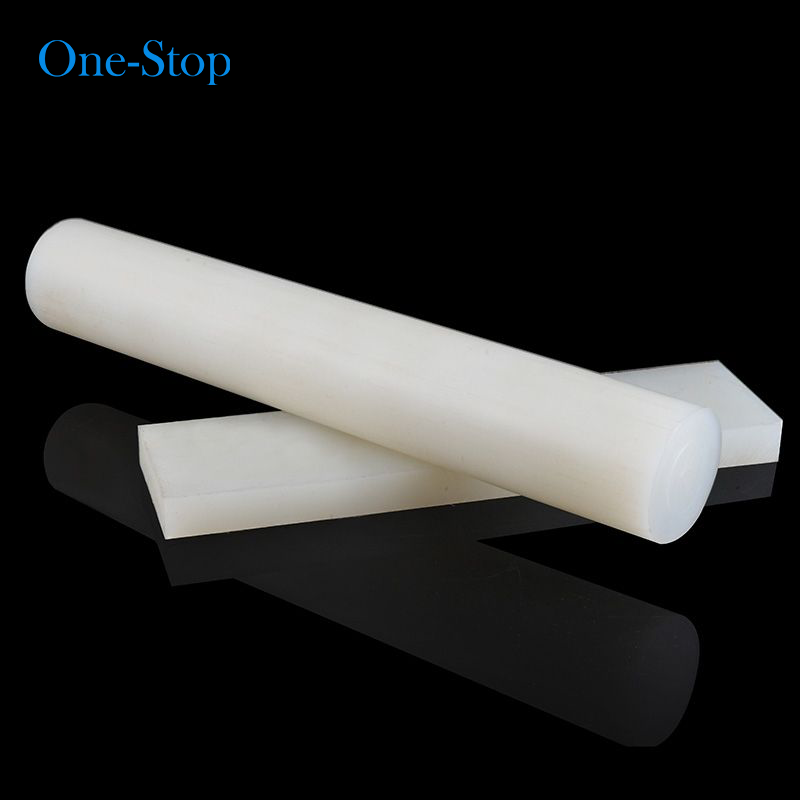

OEM ODM PVDF rod polyvinylidene fluoride rod bars
PVDF (polyvinylidene fluoride) is a kind of light fluoride material, with the working temperature ranging from -70
to 150 . It features superior corrosion resistance, mechanical property, electrical insulating property, low friction
coefficient, weatherability, and radiation tolerance. Moreover, the tensile strength is two times higher than PTFE,
the compressive strength six times higher than PTFE, and the abrasion resistance similar to nylon.
PVDF plates, rods are formed by the die pressing or extrusion of polyvinylidene fluoride resin. It can be widely
used as the corrosion-resistant materials, abrasion-resistant materials, corrosion-resistant equipment linings,
transparent viewing mirrors, vacuum sealing materials, electrical and electronic components, and motor or
instrument parts, etc.
Main Performance of PVDF bar rods
1, appearance: uniform texture, smooth surface; color was white.
2, the mechanical properties with the following table
|
Main Performance of PVDF bar rods |
|||
|
Items |
unit |
value index |
|
|
Density |
g/cm3 |
2.122.17 |
|
|
Tensile strength |
Mpa |
≥35 |
|
|
Elongation at break |
% |
≥250 |
|
|
Hardness |
Xiaoshi hardness |
D70- D80 |
|
|
Name |
diameter (mm) |
Length (mm) |
|
|
Molded Bar |
5-25 |
200 |
|
|
|
30-150 |
50-200 |
|
|
Extrusion bar |
5-30 |
1000 |
|
|
Specifications |
|||
|
Name |
thickness (mm) |
Width (mm) |
Length (mm) |
|
Molded plates |
1-40 |
100-1000 |
100-2000 |
Specifications of PVDF bar rods:
1:1000mm X 2000mm with thickness 1-50mm
2:1500mm X 3000mm with thickness 1-15mm
Other specifications can be customized
Applications of PVDF bar rods:
The ideal chemical equipment,anti-corrosion materials,especially suitable for the occasion of the acid,organic
solvents,halogens and their mixtures to use.
Widely used in electronics,electrical industry,such as electronic computer wires,Phi double-casing of aviation
wires and geophysical cable.
The outer coating for optical fiber,high dielectric constant capacitors film and band,etc.
For sheet/board/plate/rod/tube, the products will be sent for 1 day. And we support OEM and ODM.
