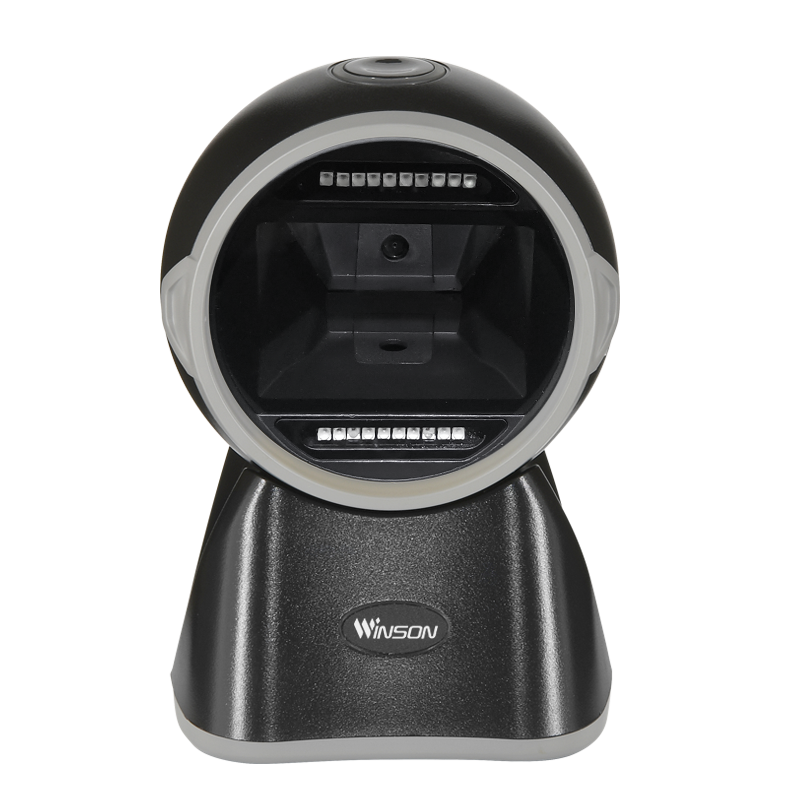

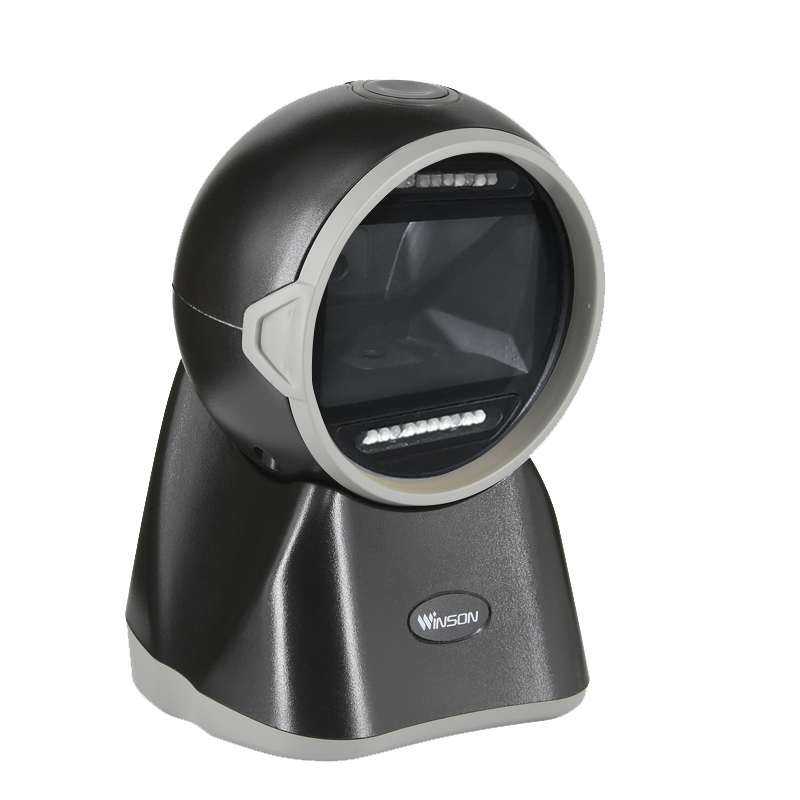

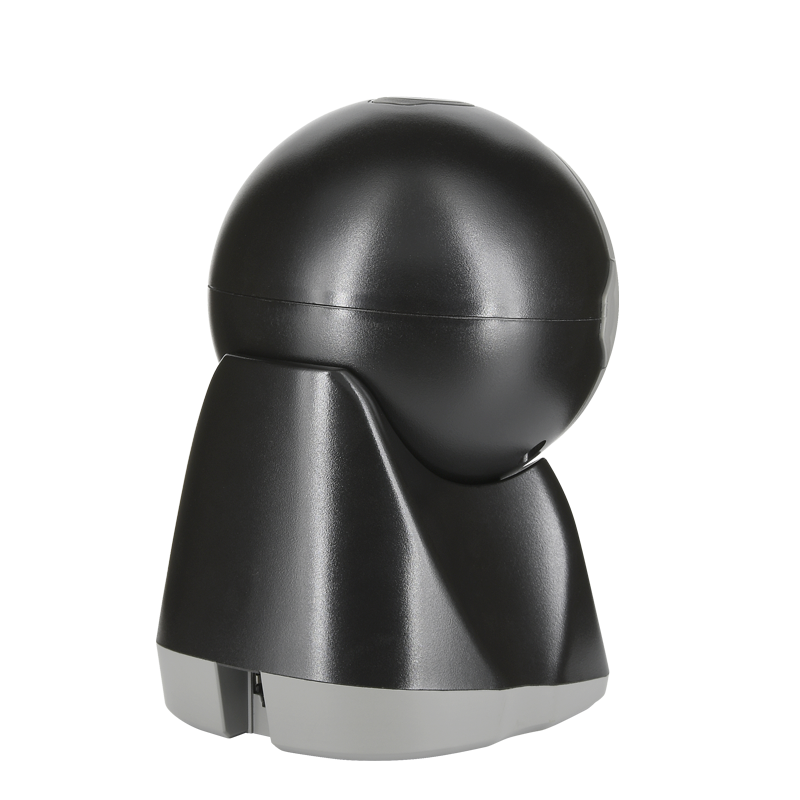

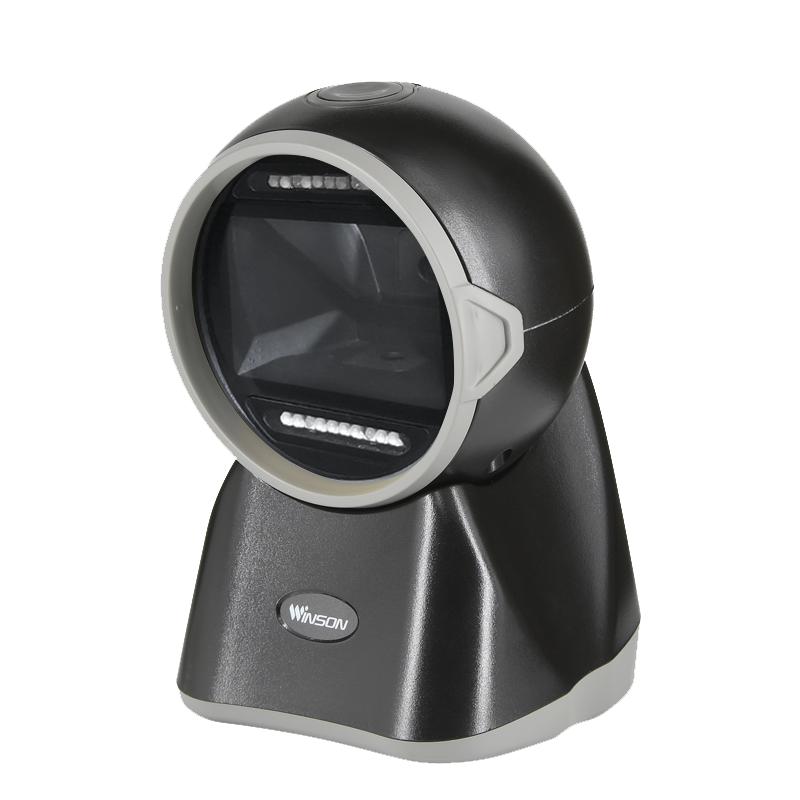

Winson WAI-6510 2D CMOS Barcode Reader Supermarket Desktop Barcode Scanned
| 1.2d Handheld Barcode Scanner Quickly scan various barcodes; |
| 2.On Counter Scanner Support reader 1d&2d paper and screen barcode; |
| 3.Support multiple keyboard language; |
| 4.Desktop Barcode Reader T97 Support read small high-density barcode; |
| 5.C2 Qr Code Desktop Reader Play and pluy, no need to manual install driver; |
| 6.Suitable for supermarkets and Retail Stores. |
|
Technical Specifications |
|
|
Electrical Characteristics |
|
|
Interface Supported |
RS-232/USB HID KEYBOARD/USB VCP |
|
Input Voltage |
DC 5V±10% |
|
Current |
Max:200mA |
|
Optical Characteristics |
|
|
Image Sensor |
CMOS Array Sensor |
|
Sensor Resolution |
1280 X 800 Pixels |
|
Light Source |
RED LED |
|
Performance Characteristics |
|
|
Field of View |
58°(H),45°(V) |
|
Min Resolution |
1D:0.076mm/3mil(PCS 0.9) 2D:0.152mm/7mil(PCS 0.9) |
|
Min .PCS value |
>30% UPC/EAN 13(13mil) |
|
Language |
Multiple Languages |
|
Data Edition |
Support for custom data output |
|
Decode Capability |
1D : UPC-A / UPC-E / EAN-8 / EAN-13, ISBN, Code 39, Code 93, Code 128, Code 32, Codabar, MSI Plessey, Interleaved 2 of 5, Pharmacode , 2D : PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR Code, DotCode |
|
Physical Characteristics |
|
|
Dimensions |
100mm*95mm*158mm(L*W*H) |
|
Weight |
265g |
|
Indicator |
Beeper, LED |
|
Environmental Characteristics |
|
|
Temperature |
0° to 50°C (operation) -10° to 60°C (storage) |
|
Humidity |
20 - 85% (operation) ) 20 - 85% (storage) |
|
Shock Drop Test |
1.5m drop onto concrete surface |
