Winson WAI-1318 2D Barcode Scanner Auto Sensing Desktop Barcode Scanner for Supermarket Chain store

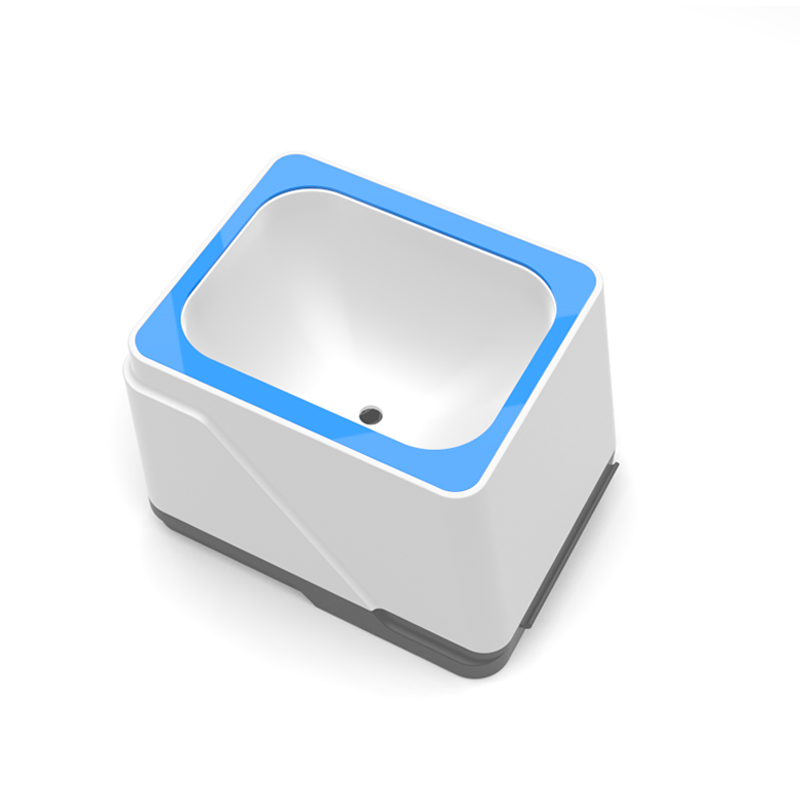

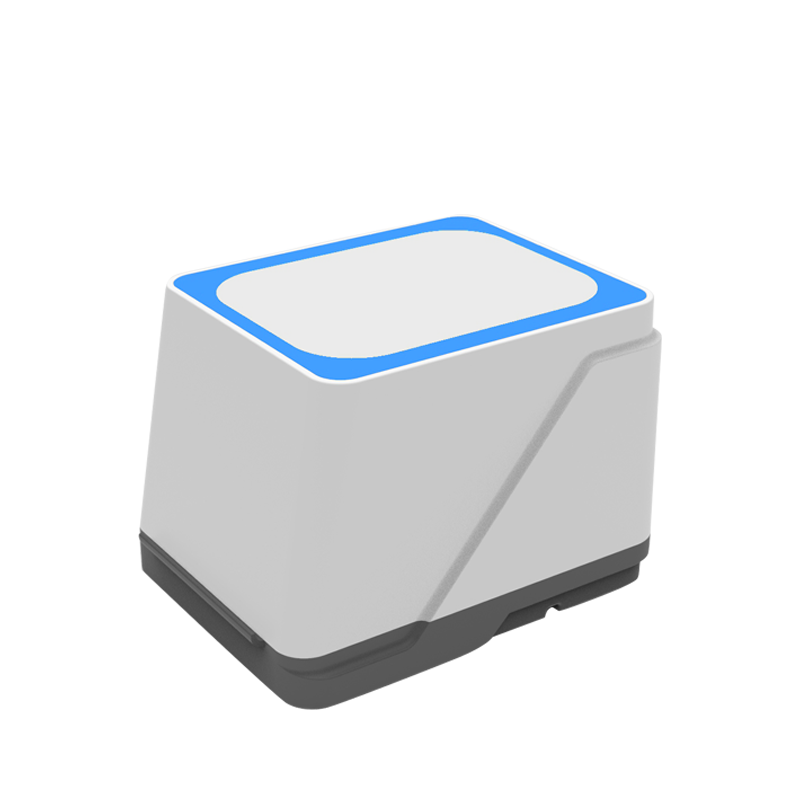

Desktop Qr Code Reader Built in 2D scanner, side speakers
Code Two Qr Code Desktop Reader Auto-sensing scanning saves power and time -- when the product barcode passes through the scanning window, the module wakes up to read the barcode instantly.
|
Technical Specifications |
|
|
Electrical Characteristics |
|
|
Interface Supported |
USB HID KEYBOARD/USB VCP/RS-232 |
|
Input Voltage |
DC 5V±10% |
|
Current |
Max:190mA |
|
Optical Characteristics |
|
|
Image Sensor |
CMOS Array Sensor |
|
Sensor Resolution |
640X480 Pixels |
|
Light Source |
White LED |
|
Performance Characteristics |
|
|
Scanning Angle |
Pitch angle:±45°;Skew angle:±50°;Tilt angle:±180° |
|
Field of View |
53°(H),40°(V) |
|
Min Resolution |
10mil |
|
Min .PCS value |
>30% UPC/EAN 13(13mil) |
|
Language |
Multiple Languages |
|
Decode Capability |
1D: Code128,GS1-128,AIM-128,EAN-8,EAN-13,ISSN,ISBN,UPC-A,UPC-E,Interleaved 2 of 5(ITF),Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5,Code93,Code11,Code39,Codabar,GS1-Databar(RSS),Plessey,MSI-Plessey 2D:QR Code,Data Matrix,PDF417 |
|
Physical Characteristics |
|
|
Dimensions |
110mm*84mm*75mm(L*W*H) |
|
Weight |
200g |
|
Indicator |
Beeper, LED |
|
Environmental Characteristics |
|
|
Temperature |
0° to 50°C / 32° to 122°F(operation) /-10° to 60°C /14° to 140°F(storage) |
|
Humidity |
20 - 85% (operation) ) 20 - 90% (storage) |
|
Shock Drop Test |
1.2m drop onto concrete surface |
