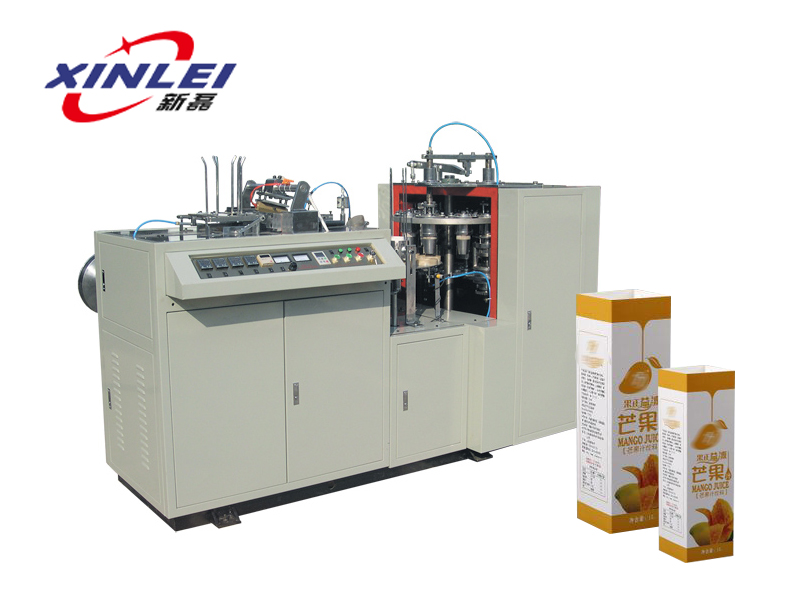

XL-DP09 paper cup machine is improved based on the open cam system.
This machine runs a whole procedure of paper-feeding,cup-fan-wall sealing, oiling, and bottom punching, heating, rolling, rimming, rounding and tripping. It is idea equipment for producing drinking cups, market cups, coffee cups, advertising cups, etc. It is widely used for hot drink and beverage.
If you need double PE coated paper cups or paper gram higher 250g/m2, we recommend you to use Ultrasonic paper cup machine. It can produce single PE coated paper cups and double PE coated paper cups.
Technical Specification
Type:
XL-DP09 Open Cam Single Plate paper cup machine
Cup size:
3- 9 oz(different size mold exchanged)
Suitable paper material:
180-350g/m2（single or double PE-coated paper)
Capacity:
70-90 pcs/min
Power source::
220V、380V 50HZ（please inform us your power in advanced）
Total power:
7.5KW
Weight:
N.W.: 1400 KGS G.W.:1500KGS
Machine size:
2000 x 900 x 1600 mm
Package size:
2100 x 1100 x 1700 mm
Power Source
50/60HZ, 380V/220V (better use 380v, 3 Phase)
Working Air Source:
Air pressure 0.4Mpa; Air out-put:0.6m³/min；
Need to buy air compressor by user
Cup bottom heating
1 side PE paper by heating knurling
2 side PE paper by cool device (circle water)knurling
Packing
Wooden cases
