Packaging Details: |
Free fumigation wooden box |
Guide Sleeve and Spindle for sucker rod guide
1. suck rod guides
|
Type |
Centralizer I/D(inch) |
For Tubing diameter(inch) |
|
FZ3/4 |
3/4 |
2-3/8"/2-7/8" |
|
FZ7/8 |
7/8 |
2-3/8"/2-7/8" |
|
FZ1 |
1 |
2-7/8"/3-1/2" |
2.The major technical indicators
Compressive strength: 60 - 90 MPa
Impact Strength: 3.5 - 4.8 kJ/m2
Scope: 16mm,19mm, 22mm,25mm Sucker Rod
Maximum OD: 46mm/58mm
Length: 98.4 mm
Medium temperature: 0-80 °C
3.Use principles
a.If it is little partial-wear well section, a set of this product will be installed on the middle of each sucker rod.
b.If it is less serious partial-wear well section, two sets of this product will be installed on the middle and one end of each sucker rod.
c.If it is serious partial-wear well section, three sets of this product will be installed on the middle and ends of each sucker rod

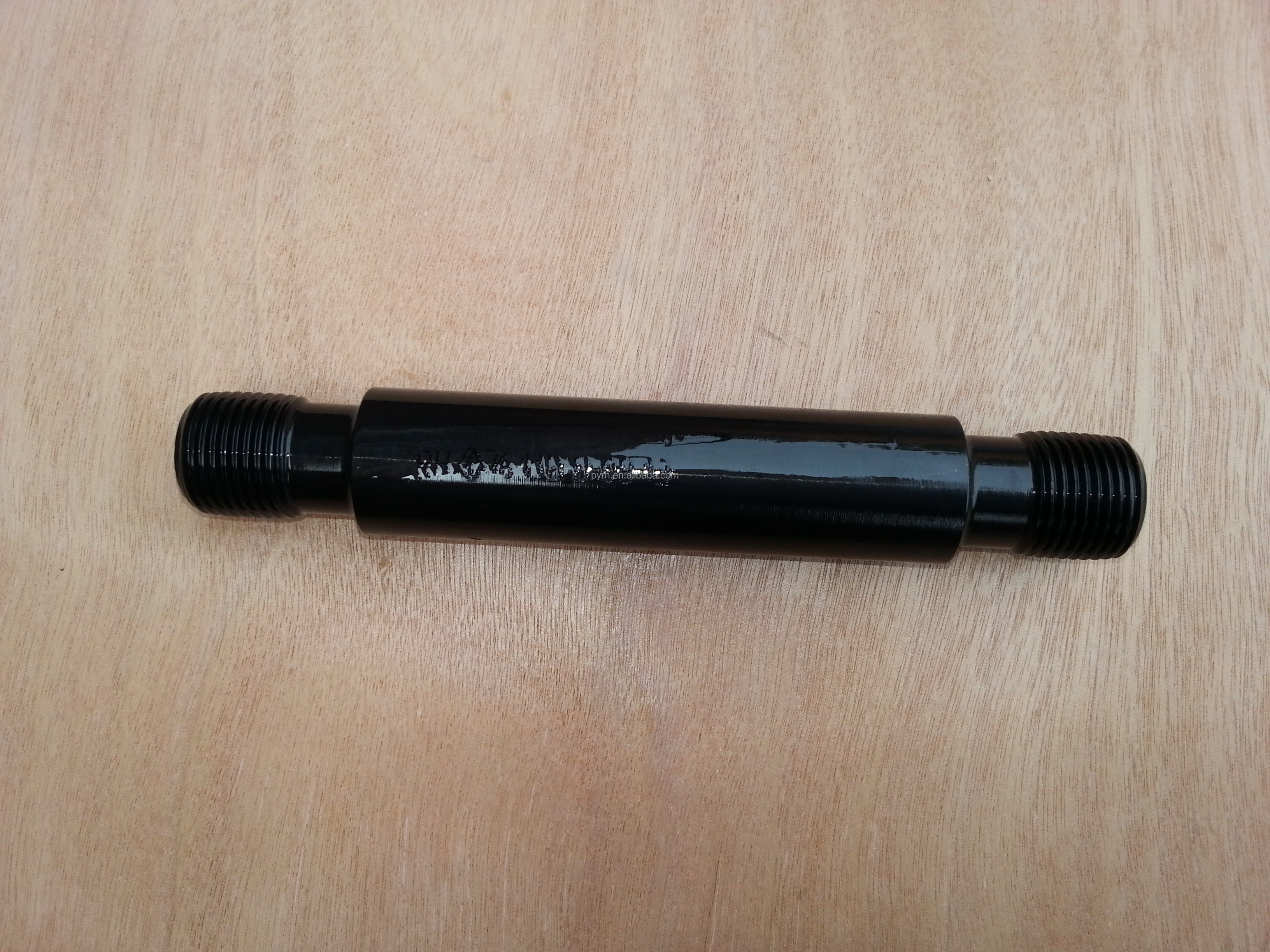

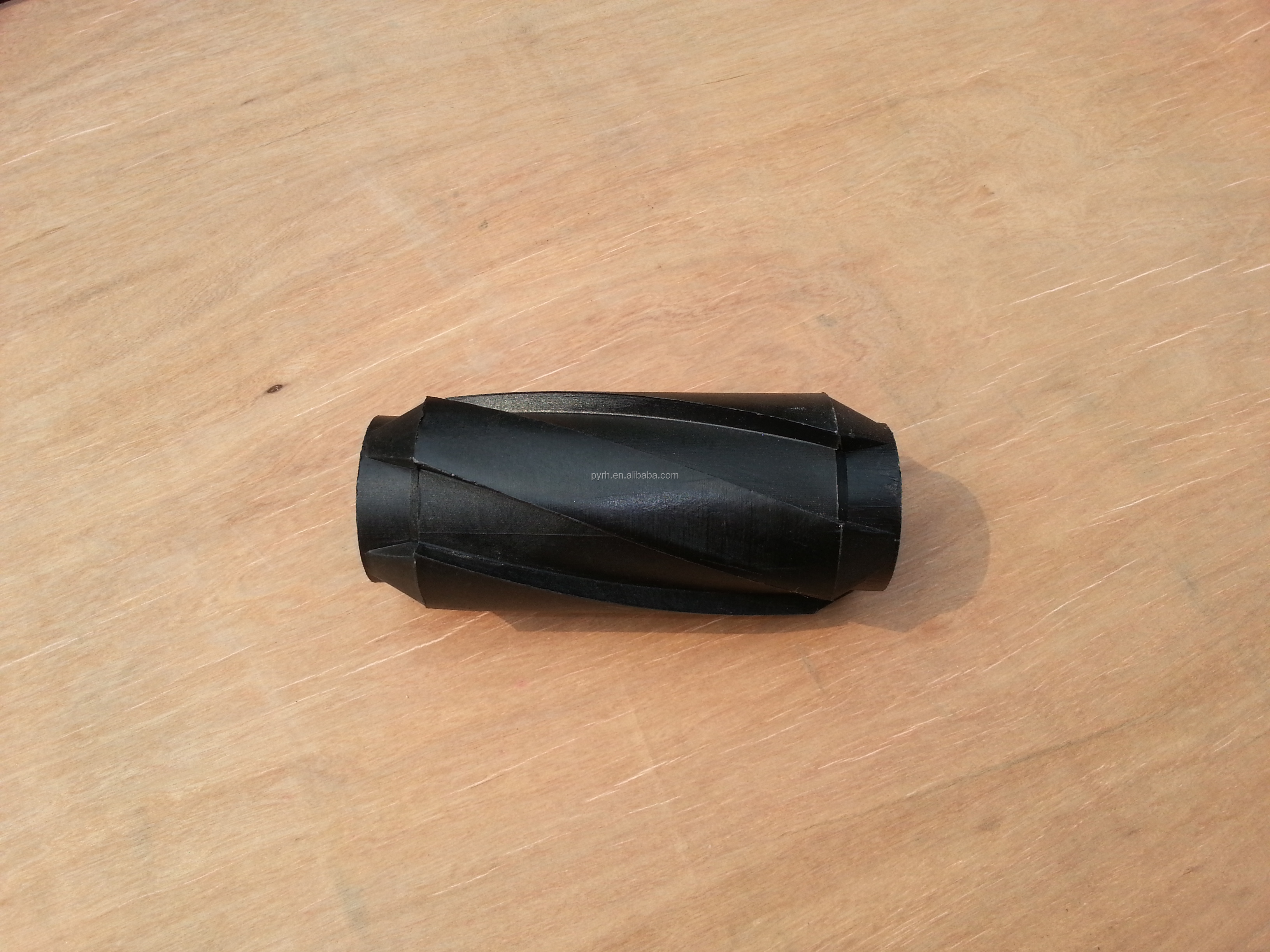

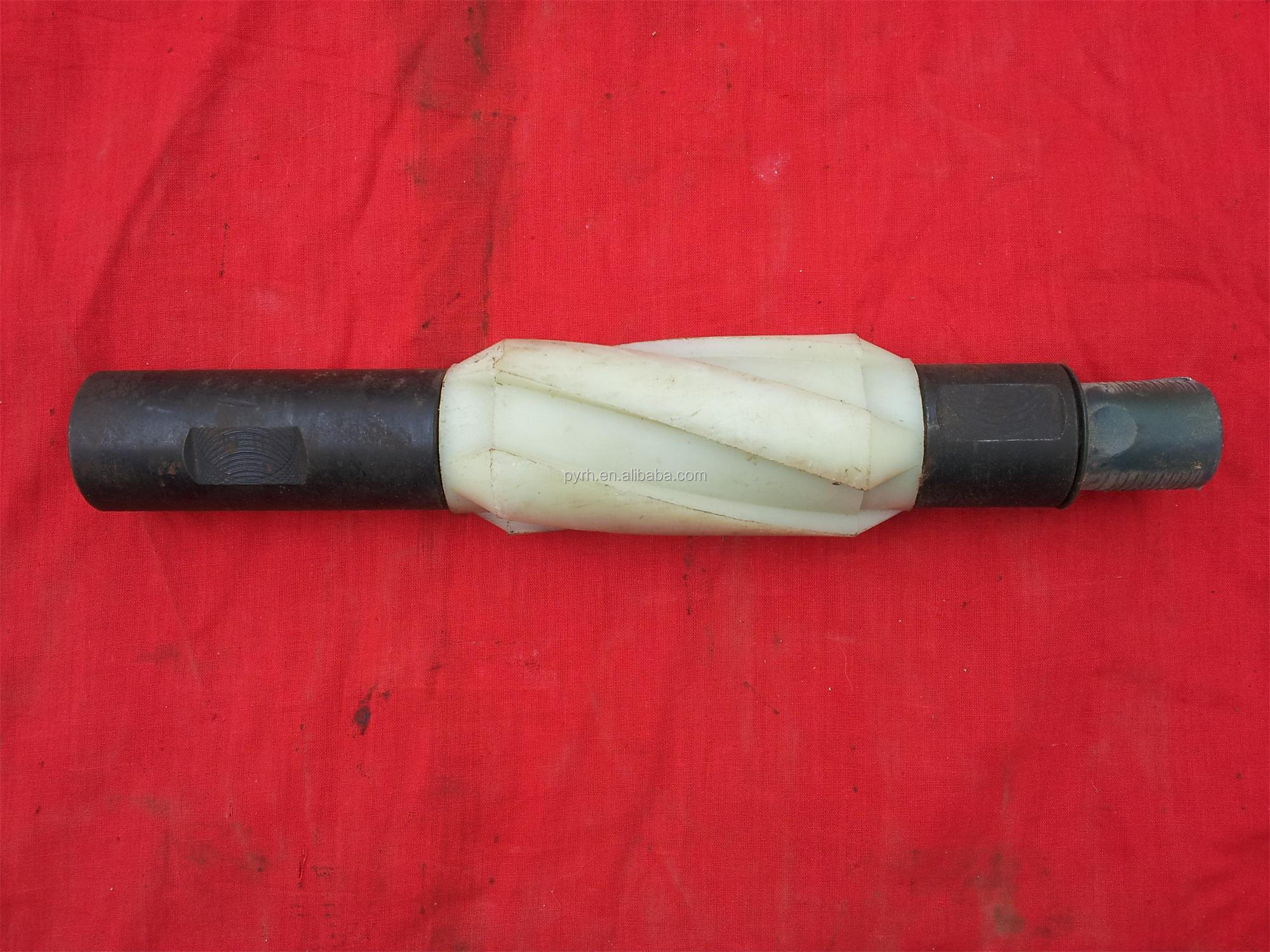

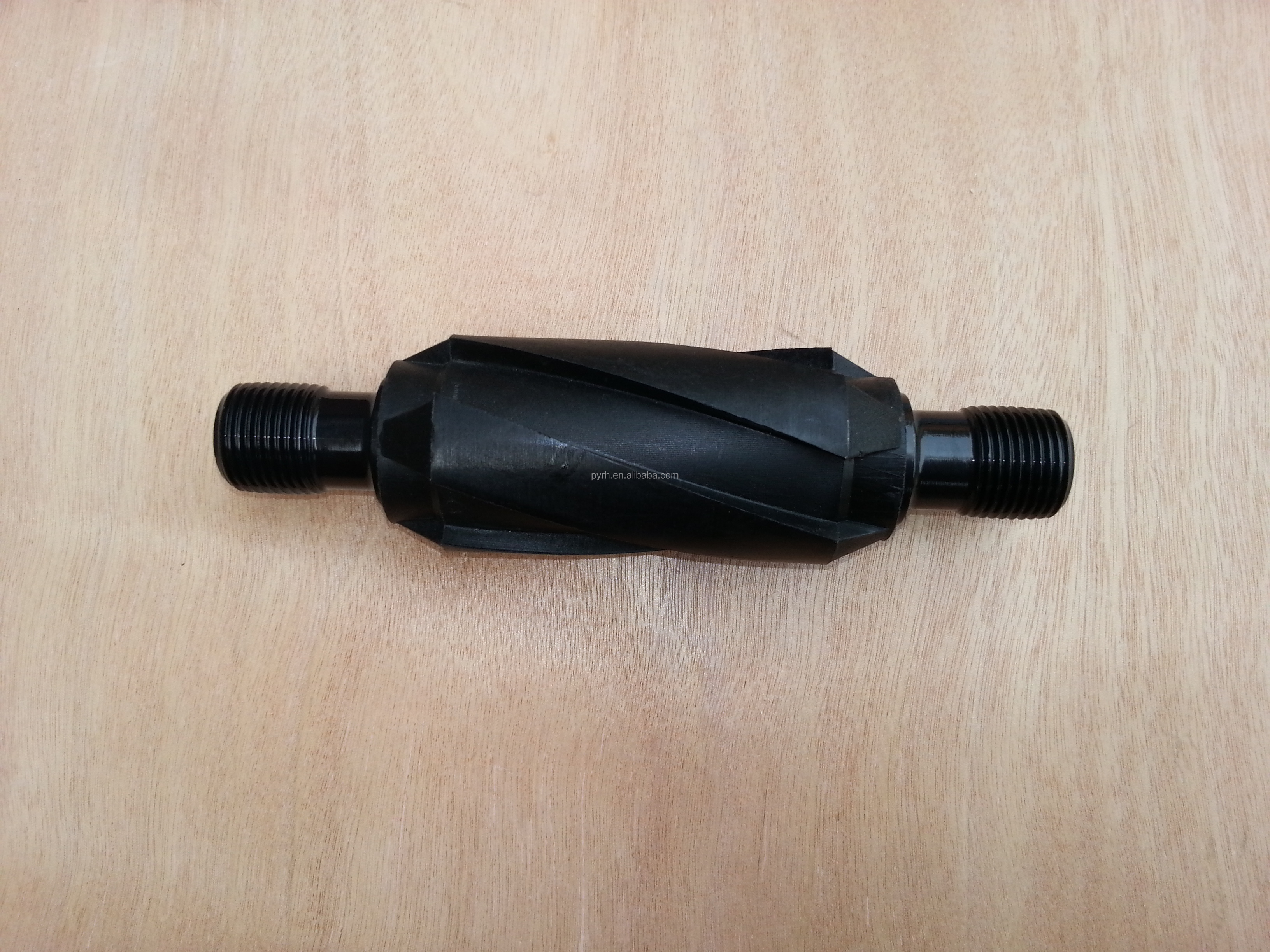

The photos
We can provide you with more service as per your request , please be free to contact us and visit us!
If you are interested in the product, contact 2bvideo.com for more information for more information
