Product details

Automatic snap button attaching machine

The automatic button attaching machine is suitable for the riveting of snap button and plastic steel button in various industries such as clothing, garment making, shoe making, leather goods, stationery, etc.

Specially in garment making and jeans production, automatic snap button attaching machine are very useful replacement of automatic sewing machines for button process.

We make manual industrial sewing machine work into simple and comfort operation:

You simply put on the fabric on attaching position, step on the pedal and IH-B06 do the rest: feeding upper and bottom buttons automatically from both sides, and perfectly detect and adjust the positon based on surface picture, meanwhile the machine is drilling a hole on fabric, then attaching button together, and so on we are able to reach 60-120 buttons/min.

IH-B06 is a popular product with excellent automation replacement of jeans sewing machine, it greatly simplifies the manual operation steps, thus reducing the burden and pressure of everyone, can be widely used in many scenarios.

In this automatic design replacement of sewing machine for jeans, not only you can achieve high efficiency, but also high quality.

When you apply such button fastener, no need of separated manual work such as punching/drilling fabric then attaching together. Investment on such machine the return cycle will be 1 to 2 years.

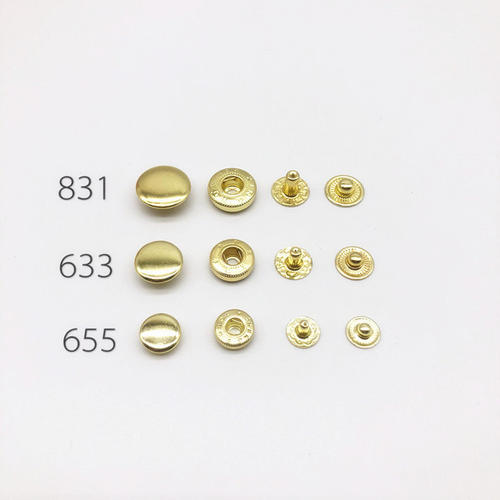

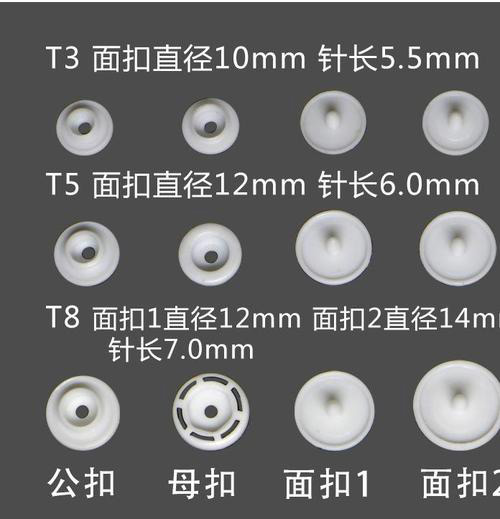

Available for top and bottom (male and female) buttons type: 831 633 655 and T3, T5, T8 buttons .

For different button sizes, we just need to simply changing the molding set, very easy to do this locally.

If you need all molds of your sizes, please tell us then we can prepare based on reasonable cost.

831 633 655 snap button T3 TT5 T8 SNAP BUTTON

Product Paramenters

Item NO.:	IH-B06	Application:	Button Automatic Attaching
Voltage/Frequency:	220V 50Hz	Efficiency:	60-120pcs/min
Power:	0.4KW	Working Pressure:	4-6kgf/cm²
Net Weight:	130kgs	Gross Weight:	145kgs for wooden box 7565132cm

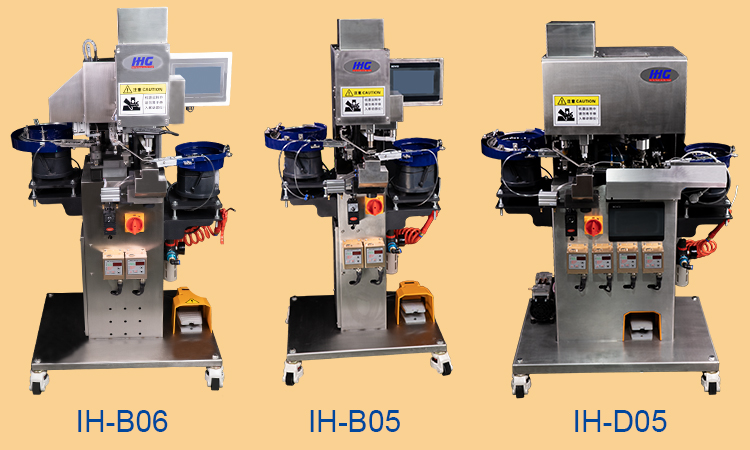

We provide all solutions for your button fastening requirement:

Simply IH-B06 is advanced version of IH-B05: with automatic button surface detection and position adjustment.

IH-D05 is for button attaching with cushion/gasket between fabric and button, also very high efficiency.

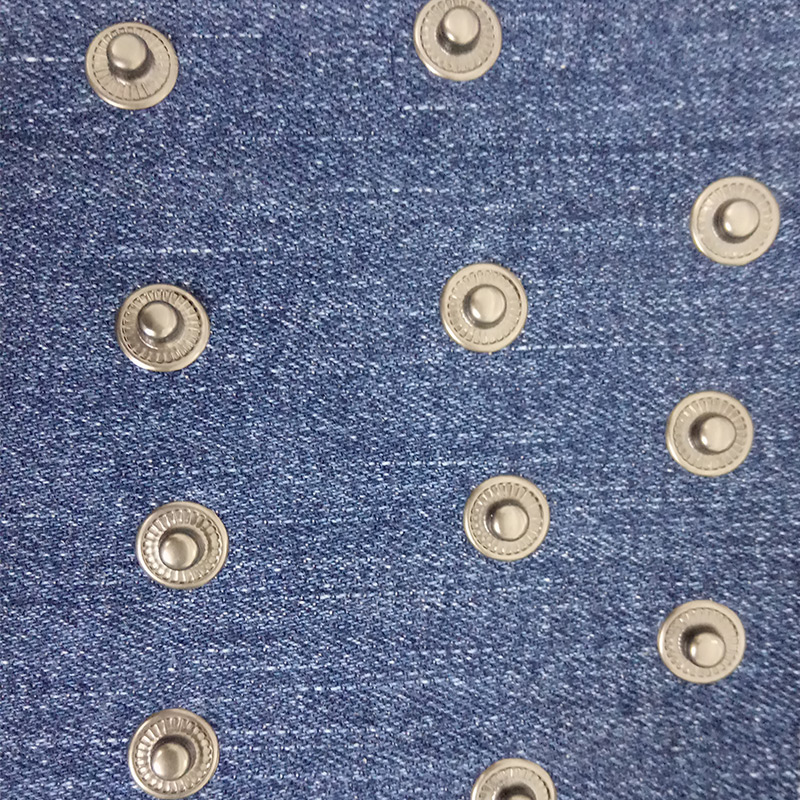

Here's the testing material sample of snap button attaching:

IH-B05 and IH-B06 is attaching machine for snap buttons without cushion, please remind that IH-B05 has no positioning function:

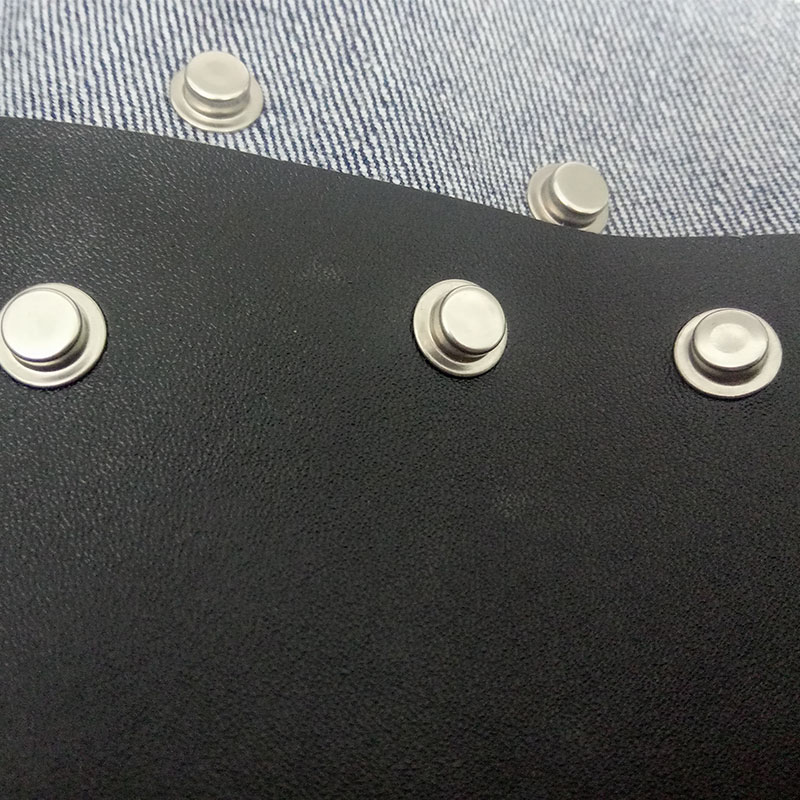

IH-D05 is attaching machine for snap buttons with cushion:

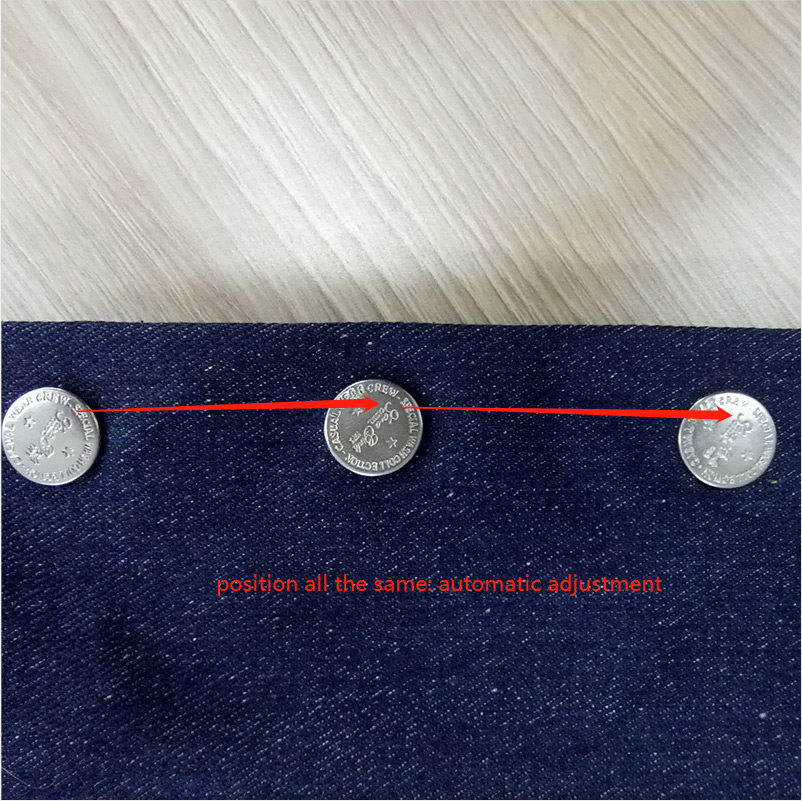

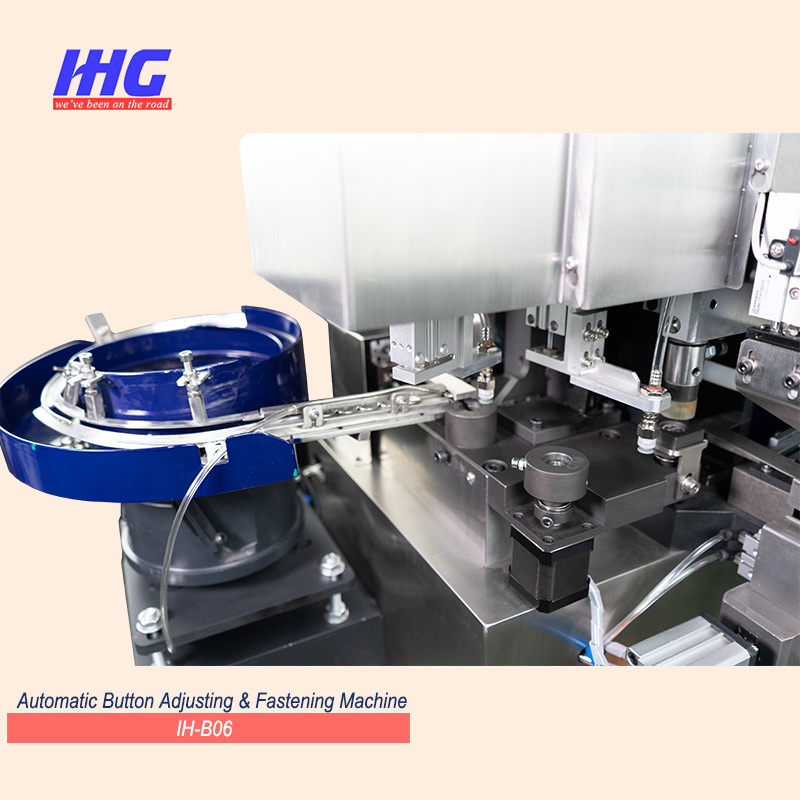

For IH-B06, Automatic Camera Identification and Direction Adjusting Function Inside!

IH-B06 is newly developed snap button fastening / attaching machine for jeans and garment factory with high end quality

requirement: all carved pictures on the button attaching in unified direction.

All buttons attached in the same position as you set in the first place.

Big fashion brands will require such sewing quality for their products standing out.

During the feeding, we protect the buttons very well, no scratch.

Also the worker will be happy to work with such well-designed machines.

In fact this patented design is quite simple, thus the performance is stable and reliable.

Through many years of R&D, we are able to make sure all buttons feeding automatically without manual operation. And by changing the mold quickly, we are able to deal with diffrent orders in a short time, you won't wast your time on adjusting the button fastening machines.
