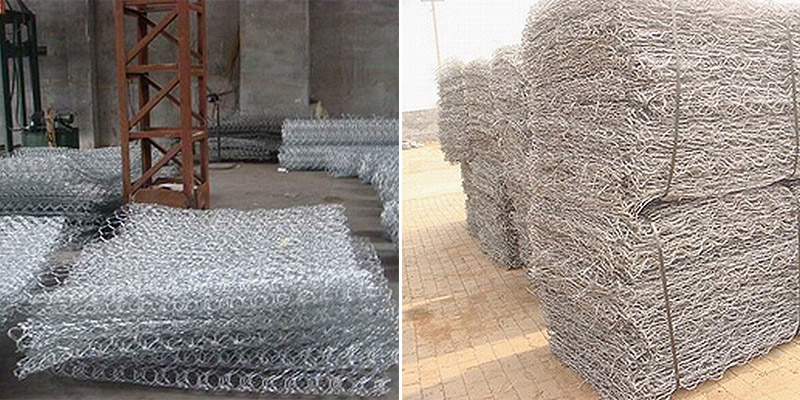

Galvanized Gabion Mesh
Gabion are made of double - twisted hexagonal wire mesh. To fill with stones at the river bank or seaside to stop flood, on the mountain prevent rock falling.
1.Gabion materials: hot dipped galvanized wire and Galfan coated wire
2. Gabion mesh wire:2.0mm,2.2mm,2.7mm,3.0mm,
3. Gabion selvage wire :2.4mm,2.7mm,3.4mm,3.9mm
4 Gabion mesh size : 6*8cm, 8*10cm, 10*12cm, 12*15cm
5. Gabion lacing wire : 2.2mm, 5% of gabion weight
6. Gabion Zinc coating : 225-275g/m2 according to EN 10224-2
7. Gabion size : 2X1X0.5m , 2X1X1m, 3X1X1m, 4X2X0.5m, 6X2X0.3m
8. Gabion box Steel according to EN 10218-2 ,Tensile strength between 380N/mm2 and 500N/mm2
Gabion box applications:
1)Control and guide of water or flood
2)Flood bank or guiding bank
3)Preventing of rock breaking
4)Water and soil protection
5)Bridge protection
6)Strengthening structure of soil
7)Protection engineering of seaside area
|
Specification of heavy hexagonal wire mesh |
|||
|
Opening (mm) |
Wire Diameter (mm) |
PVC Wire Diameter Inside/outside (mm) |
Max Breadth (m) |
|
60X80 |
2.0-2.8 |
2.0/3.0-2.5/3.5 |
4.3 |
|
80X100 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
4.3 |
|
80X120 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
4.3 |
|
100X120 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
4.3 |
|
100X150 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
4.3 |
|
120X150 |
2.0-4.0 |
2.0/3.0-3.0/4.0 |
4.3 |
|
Others we can do as your requirement |
|||
