Post Tensioning Jack of YC series is a kind of feed through pre-tensioning As the end of the tension rod is connected to the anchor with thread, it can be applied to various forged anchors, chilled iron anchor used for stayed-cable bridge and other similar anchors, as well as pre-tension pulling for pipes.
In accordance with actual requirement, the support of two heavy-weight jacks can be replaced with a base plate and rolling hinged bearing provided by the manufacturer, to be used as a vertical jack, or for horizontal pushing during installation.

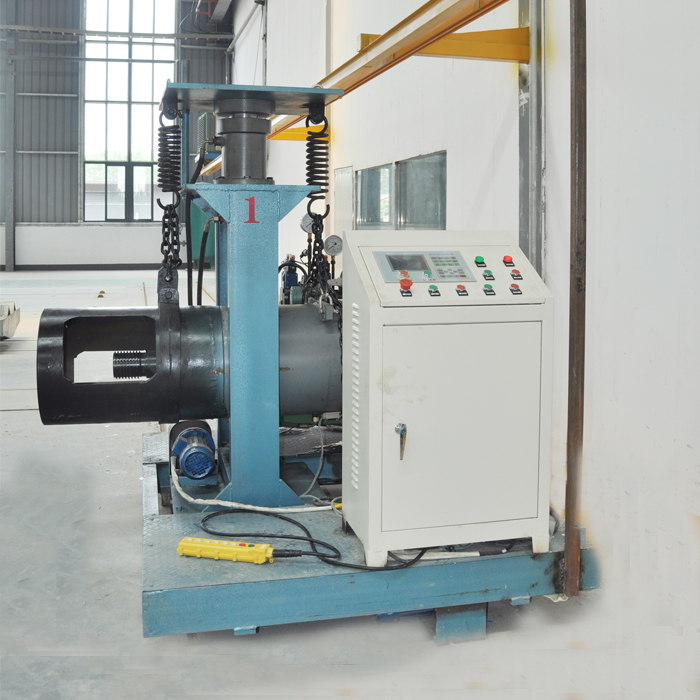

Concrete Pile Tension Jack machine is a kind of feed through pre-tensioning jack with a tension rod in the center, having 4 types of tensioning.
Strength, namely: 1000 KN, 2000 KN, 3000 KN, 4000 KN. As the end of the tension rod is connected to the anchor with thread, it can be applied to various forged anchors, chilled iron anchor used for stayed-cable bridge and other similar anchors, as well as pre-tension pulling for pipes.
In accordance with actual requirement, the support of two heavy-weight jacks can be replaced with a baseplate and rolling hinged bearing provided by the manufacturer, to be used as a vertical jack, or for horizontal pushing during installation. The customer can also demand a change in thread specifications for the connection of the anchor to enlarge the scope of application.our company is professional in the field of Tension Jack,such as Post Tension Hydraulic Jack.
|
Item |
100 |
120 |
200 |
300 |
600 |
|
Rated oil pressure |
46Mpa |
32Mpa |
43Mpa |
37Mpa |
48Mpa |
|
Tension stroke |
200 |
200 |
200 |
300 |
300 |
|
Plunger area,tension cylinder |
212.64cm² |
418.6 cm² |
452.4 cm² |
790 cm² |
1209.7 cm² |
|
Theoretical tension strength |
1063KN |
2093KN |
3000KN |
3955KN |
5950KN |
|
Plunger area,back stroke cylinder |
106.8 cm² |
171.3 cm² |
216 cm² |
311 cm² |
572.27 cm² |
|
Diameter of feed through hole |
74mm |
104mm |
112mm |
144mm |
175mm |
|
Net pitch between supports |
150 |
210 |
210 |
370 |
470 |
Taizhou amity care international co.,ltd is regarded as the foreign trade department of Taizhou xurui
machinery manufacturing co;, all abroad (overseas) tasks and international businesswill be
undertaken by "amity care ".
We are manufacturers of centrifugal spinning machine ,mould ,heading machine ,cutting
machine,cage welding machine , tension jack for pre-stress .feeding machine for different
capacity ,weave welding machine ,sheet cutting machine etc. we also can supply setting up
a new factory full line service . We have already exported various kinds of concrete pile ,
pole and pipe concern making machines to overseas countries and regions such as indonesia
,parkistan,Vietnam ,myanmar ,korea,malaysia ,south african etc .Mideast, Southeastern Asia.
