Stainless Steel Plate

Stainless Steel Plate

3 year ago

52 0

Shandong Guanzhou Iron and Steel Group Co., Ltd

 3 year year

Product details

Product Introduction

WHAT IS STAINLESS STEEL SHEET?

The surface of the stainless steel plate is smooth and has high plasticity, toughness and mechanical strength, and is resistant to corrosion by acids, alkaline gases, solutions and other media. It is an alloy steel that does not easily rust, but it is not absolutely not rusty. Stainless steel plate refers to a steel plate that is resistant to corrosion by weak media such as atmosphere, steam, and water, and acid-resistant steel plate refers to a steel plate that is resistant to corrosion by chemically aggressive media such as acid, alkali, and salt. Stainless steel plates have been around since the beginning of the 20th century, and now have a history of more than a century.

Stainless steel does not stain, corrode, or rust as easily as regular carbon steel and provides high strength and impact resistance along with the aesthetic appeal. The material also has anti-bacterial qualities and is easy to clean and sanitize.

Stainless steel sheet is typically sold in the annealed condition and is available in most grades. Our stainless steel sheets come in both a standard 2B finish and various polished finishes. Polished surfaces range from the standard #4 to a mirrored finish #8 and are usually covered with a removable vinyl coating. Our standard sheet sizes include 4’ x 8’, 4’ x 10’, and 5’ x 10’, but customized sizes are also available. Stainless steel plate is sold in the HRAP (Hot Rolled Annealed and Pickled) condition and finishes.

HOW DO YOU CUT STAINLESS STEEL SHEET?

Like sheet, stainless steel plate comes in standard sizes varying in width from 4’ to 8’ and in length from 8’ to 20’, but can also be customized to suit the application. Stainless cut plate may be sheared in thicknesses up to 3/8”, and plasma cut in thicknesses over that. Waterjet, band-saw, or laser cutting is also available. If you can’t find the size or grade that you’re looking for, feel free to contact us for assistance.

Product Specification

Thickness	0.3~300mm
Length	0.5~10m or customized
Width	0.5~3m or customized
Standard	ASTM, AISI, DIN, EN, GB, JIS
Grade	304, 304L, 316, 316L, 201, 202, 301, 301QH, 301HH, 301FH, 302, 309, 309S, 310, 310S, 317L, 321, 330, 347, 405, 409, 410, 410S, X2CrNi12, 3CR12, 3Cr12L, 420, 430, 431, 440A, 600, 625, 718, 904L, 15-5, 17- 4, 17-7, A286, 2205 and more
Technique	Cold rolled, Hot rolled
Surface	2B, 2D, BA, HL, 4K, 8K, NO.1, NO.3, NO.4
Edge	Mill edge/Slit edge
Certificates	BV, ISO, SGS, CE
Package	Export standard package, bundled or be required. The inner size of container is below: 20ft GP: 5.9M(L)X2.13M(W)X2.18M(H) about 22-26CBM 40ft GP: 11.8M(L)x2.13m(W)X2.18M(H) about 54CBM 40ft GP:11.8M(L)X2.13M(W)X2.72M(H) about 68CBM
MOQ	1 TON
Payment terms	TT(30% deposit advance, 70% balance) or L/T at sight
Price term	EX-FACTORY, FOB, CIF or CFR
Delivery time	10~20days after receiving deposit
Application	dyed machine, film processing equipment, building constructure, food industry

Surface description

Surface	Definition	Application
No.1	The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling.	Chemical tank, pipe etc.
2D	When finishing acid cleaning by heat treatment or equivalent processing.Temper cold rolling is performed till proper gloss is acquired.	Areas without surface gloss requirement,such as construction, DDQ and general purpose.
2B	Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.The surface brightness and flatness of No.2B is better than No.2D. No.2B could nearly satisfy comprehensive uses.	Medical equipment, Food industry, Construction material, Kitchen utensils etc.
No.3	Polished with abrasive belt of git#100 to #200, have better brightness with discontinuous coarse stria.	Kitchen utensils, Building construction etc.
No.4	Polished with abrasive belt of grit #150 to #180,have better brightness with discontinuous coarse stria,but thinner than No.3.	Kitchen utensils, Building construction, Medical equipment etc.
Hairline	Polished with abrasive belt of grit #150 to #320 on the NO.4 finish and has continuous polishing streaks.	Building Construction etc.
BA (No.6)	Cold rolled, bright annealed and skin-passed, the product have excellent brightness and good reflexivity.	Kitchen utensils, Electric equipment, Building construction etc.
Mirror (No.8)	The product have excellent brightness and prefer reflexivity can to be the mirror.	Building construction, decoration etc.

Grade Specifications for Stainless Steel Plate

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 301	1.4310	S30100	SUS 301	–	–	–	–
SS 301L	–	S30103	SUS 301L	–	–	–	–
SS 304	1.4301	S30400	SUS 304	304 S31	08Х18Н10	Z7CN18‐09	X5CrNi18-10
SS 304L	1.4306 / 1.4307	S30403	SUS 304L	304 S11	03Х18Н11	Z3CN18‐10	X2CrNi18-9 / X2CrNi19-11
SS 310	1.4841	S31000	SUS 310	310 S24	20Ch25N20S2	–	X15CrNi25-20
SS 310S	1.4845	S31008	SUS 310S	310 S16	20Ch23N18	–	X8CrNi25-21
SS 316	1.4401 / 1.4436	S31600	SUS 316	316 S31 / 316 S33	–	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316 S11 / 316 S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 321	1.4541	S32100	SUS 321	–	–	–	X6CrNiTi18-10
SS 409	1.4512	S40900	–	409 S19	SUH 409	Z3CT12	–
SS 410	1.4006	S41000	SUS 410	410 S21	–	Z10C13 / Z13C13	X12Cr13
SS 420	1.4021	S42010	SUS420J1	420S29 / 420S37	–	–	X20Cr13
SS 420J1	1.4021	S42010	SUS420J1	420S29	–	Z20C13	X20Cr13
SS 420J2	1.4028	S42000	SUS420J2	420S37	–	Z20C13	X20Cr13
SS 430	1.4016	S43000	SUS 430	430 S17	–	Z8C17	X10Cr17

Chemical Properties

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 301	0.150 max	2.0 max	1.00	0.045 max	0.030 max	16.0 – 18.00	–	6.00 – 8.00	–
SS 301L	0.03 max	2.0 max	1.0 max	0.045 max	0.030 max	16.0 – 18.0	–	6.00 – 8.00	–
SS 304	0.08 max	2.0 max	0.75 max	0.045 max	0.030 max	18.0 – 20.0	–	8.00 – 11.00	–
SS 304L	0.035 max	2.0 max	1.0 max	0.045 max	0.03 max	18.0 – 20.0	–	8.00 – 13.00	–
SS 310	0.015 max	2.0 max	0.15 max	0.020 max	0.015 max	24.00 – 26.00	0.10 max	19.00 – 21.00	54.7 min
SS 310S	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	24.00 – 26.00	0.75 max	19.00 – 21.00	53.095 min
SS 316	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	16.00 – 18.00	2.00 – 3.00	11.00 – 14.00	67.845 min
SS 316L	0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	16.00 – 18.00	2.00 – 3.00	10.00 – 14.00	68.89 min
SS 316Ti	0.08 max	2.0 max	0.75 max	0.045 max	0.030 max	16.00 – 18.00	2.00 – 3.00	10.00 – 14.00	68.395 min
SS 321	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 – 19.00	–	9.00 – 12.00	–
SS 405	0.25 max	2.0 max	1.50 max	0.045 max	0.030 max	24.00 – 26.00	–	19.00 – 22.00	–
SS 409	0.08 max	1.0 max	1.0 max	0.045 max	0.045 max	11.75 max	–	–	–
SS 410	0.15 max	1.50 max	1.0 max	0.04 max	0.02 max	11.50 – 13.50	–	0.0 – 0.75	Balance
SS 420	0.16 – 0.25	1.50 max	1.0 max	0.04 max	0.015 max	12.00 – 14.00	–	–	–
SS 430	0.08 max	1.0 max	1.0 max	0.04 max	0.02 max	16.00 – 18.00	–	–	Balance

Mechanical Properties

Grade	Density	Melting Point	Tensile Strength ksi (min.)	Yield Strength (0.2%Offset) ksi (min.)	Elongation
301 1/4	–	–	125	75	≥25% (in 50 mm)
301 1/2	–	–	150	110	18%
301 Full Hard	–	–	185	140	9%
SS 301L	–	–	515	205	40%
SS 304/304L	8.0 g/cm3	1400 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	40%
SS 310/310S	7.9 g/cm3	1402 °C (2555 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	40%
SS 316/316L	8.0 g/cm3	1400 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	40%
SS 316Ti	8.0 g/cm3	1399 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35%
SS 321	8.0 g/cm3	1457 °C (2650 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35%
SS 405	–	–	515	205	40%
SS 409	–	–	450	240	25%
SS 410	–	–	450 – 510	205 – 290	20% – 34%
SS 420/420J1/420J2	–	–	650 – 950	400 – 600	10% – 12%
SS 430	–	–	450 – 600	260	20%

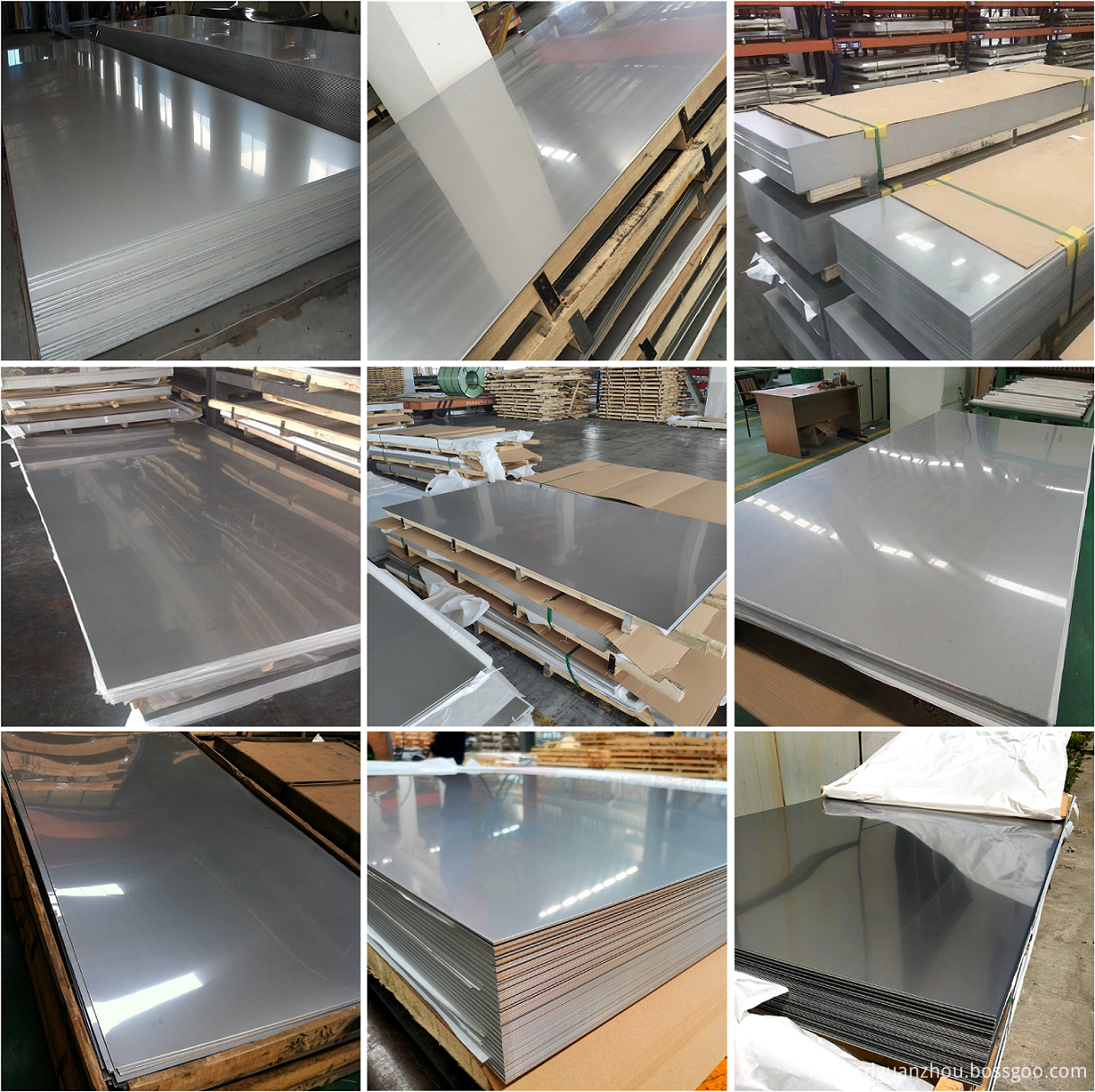

Product Display

Stainless Steel Plate

Performance

Corrosion resistance

The stainless steel plate has the ability to resist general corrosion similar to the unstable nickel-chromium alloy 304. Long-term heating in the temperature range of chromium carbide may affect alloys 321 and 347 in harsh corrosive media. Mainly used in high temperature applications, which require strong anti-sensitization properties to prevent intergranular corrosion at lower temperatures.

High temperature oxidation resistance

Stainless steel plates have high temperature oxidation resistance, but the oxidation rate will be affected by inherent factors such as exposure environment and product form.

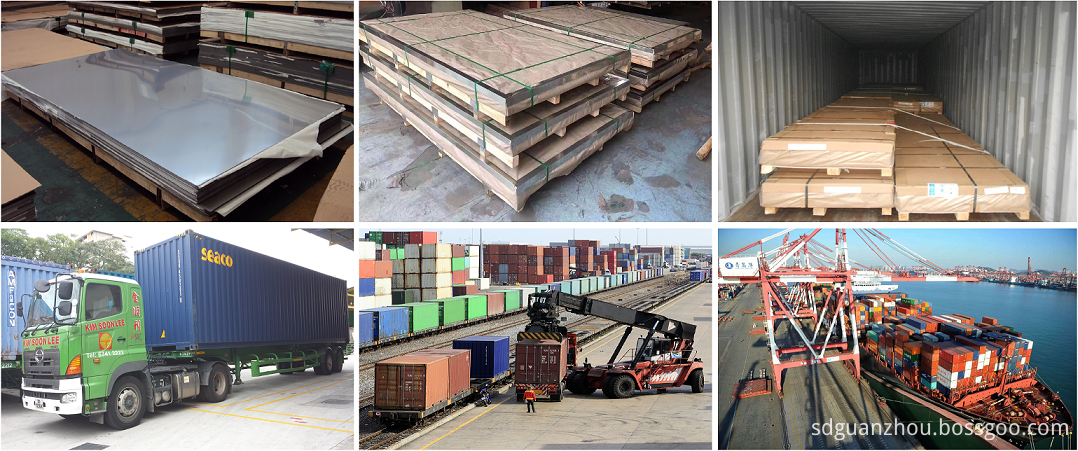

Packaging And Transportation

We offer different modes of transport depending on the customer's destination: rail transport and ship transport，etc.The Shipping Mark shall consist of: Trade mark, Seller's name, Product name, Applicable standards,Specifications, Package No., Contract No., Heat No., Production date, Weighing method, Net weight, Gross Weight, Consignee and Protection symbols, etc.

FAQ

Q1: Can you send samples?

A:Of course, we can provide customers with free samples and express shipping service to all over of the world.

Q2: What product information do I need to provide?

A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.

Q3: What ports of shipment are there?

A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.

Q4: What about product prices information?

A:Prices various according to periodic price changes of raw materials.

Q5: What is your terms of payment ?

A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.

Q6: Do you provide custom made Products service?

A: Yes,if you have your own design , we can produce according to your specification and drawing.

Q7: What are the certifications for your products?

A:We have ISO 9001, MTC, third parties’ inspections are all available such SGS, BV ect.

Q8: How long does your delivery time take?

A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.

Q9: How many countries you already exported to?

A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana,somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.

Q10: Can I go to your factory to visit?

A:Of course, we welcome customers from all over the world to visit our factory.

Q11: Does the product have quality inspection before loading?

A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too.

Q12: How to pack the products?

A: Standard export sea-worthy packaging, the inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.

Q13: What products does your company make?

Our main products include Stainless Steel Plate; Marine Steel Plate; Alloy Steel Plate; Weather Resistant Steel Plate; Pressure Vessel Plate etc. The company's products are of high quality, low price, and fast delivery, and are well received by domestic and foreign users.
