Product details

 High quality reasonal price rent a komatsu caterpillar dozer D65 with 160HP 220HP

Power System

 The Cummins KTA19 vertical 4-storke turbocharged engine features strong power.

 The three-element single-stage single-phase hydraulic torque converter features high operating efficiency.

Drive system

 The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.

and the Bulldozer Spare Parts,excavator spare parts ,Bulldozer Spare Parts,forklift parts and so on .

 Shantui's self-made drive system features stable performance and reliable quality and has been long proved by the market.

Driving/Riding Environment

The ergonomic cab features large space, excellent vision, and good airtightness.

 The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.

we still have SD22bulldozer ,SD32 DOZER.bulldozer for sale,mini dozer,hbxg dozer china,d6 dozer for sale


Sd22w Bulldozer 2 Jpg

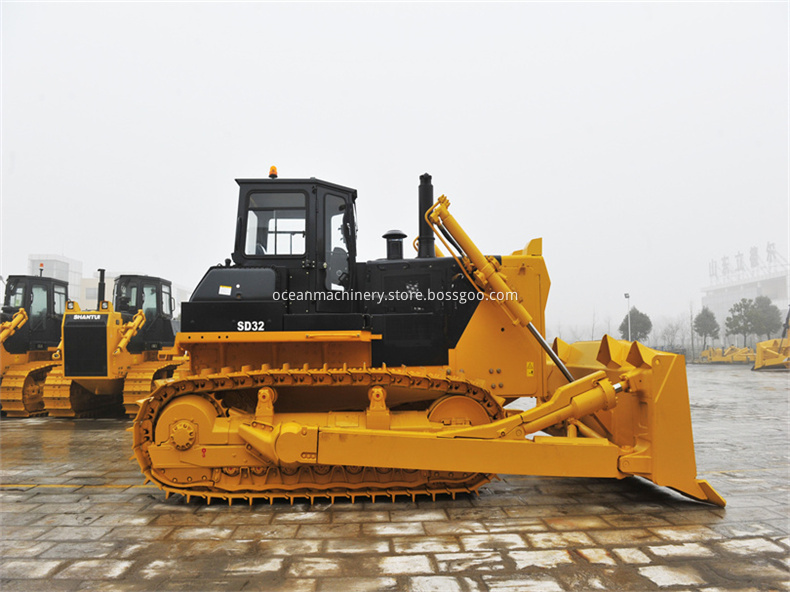

sd32 (1)

sd32 (2)

Engine Model & type Cummins NTA855-C360S10; In-line, water-cooled; 4-cycle,
overhead valve direct injection, turbocharged diesel
Rated revolution 2000 rpm
Horsepower Gross power: 257/345/2000 kW/HP/rpm //
Net power: 235/320/2000 kW/HP/rpm
Number of cylinders 6—139.7 x 152.4 (mm x stroke)
Piston displacement 14010 ml
Min. fuel consumption 245 g/kW·h
Maximum torque 1440 N·m@1400rpm
Power Torque converter 3-element, 1 stage, 1 phase
transmission Transmission Planetary gear, multi-disc clutch, power shift,
system forced lubrication
Main drive Spiral bevel gear, splash lubrication,
single-stage speed reduction
Steering clutch Wet, multi-disc, spring loaded,
hydraulically separated, hydraulic control
Steering brake Wet, floating band, foot brake with hydraulic booster
Final drive 2-stage speed reduction of spur gear, splash lubrication
Travel speed Gear 1st 2nd 3rd
Forward 0~3.6 km/h 0~6.6 km/h 0~11.5 km/h
Reverse 0~4.4 km/h 0~7.8 km/h 0~13.5 km/h
Undercarriage Type Swing type of sprayed beam, suspended structure of equalizer bar
system Carrier rollers 2 each side
Track rollers 7 each side (single flange 5, double flange 2)
Track type 41 each side
Width of track shoes 560 mm
Pitch 228.6 mm
Hydraulic Maximum pressure 14 MPa
System Pump type Gear pump
Discharge 355 (1795 rpm) L/min
(at revolution of 2000 rpm)
Bore of working cylinder × 140 mm × 2
no. (double-acting type)
Blade Blade Type Straight-tilt Angle Semi-U blade
Dozing capacity 10 m 3 6 m 3 11.9 m 3
Efficiency 580 m 3 /h 350 m 3 /h 690 m 3 /h
(Theoretical value 40 m)
Blade width 4130 mm 5000 mm 4130 mm
Blade height 1590 mm 1140 mm 1710 mm
Maximum drop below ground 560 mm 630 mm 560 mm
Maximum tilt adjustment 1000 mm 500 mm 1000 mm
Weight of blade 4520 kg 4932 kg 4924 kg
Riipper Maximum digging 842 mm
(Optional) depth of 3-shank ripper
Maximum lift above ground 883 mm
Weight of 3-shank ripper 3802 kg
Maximum digging 1250 mm
depth of single ripper
Maximum lift above ground 965 mm

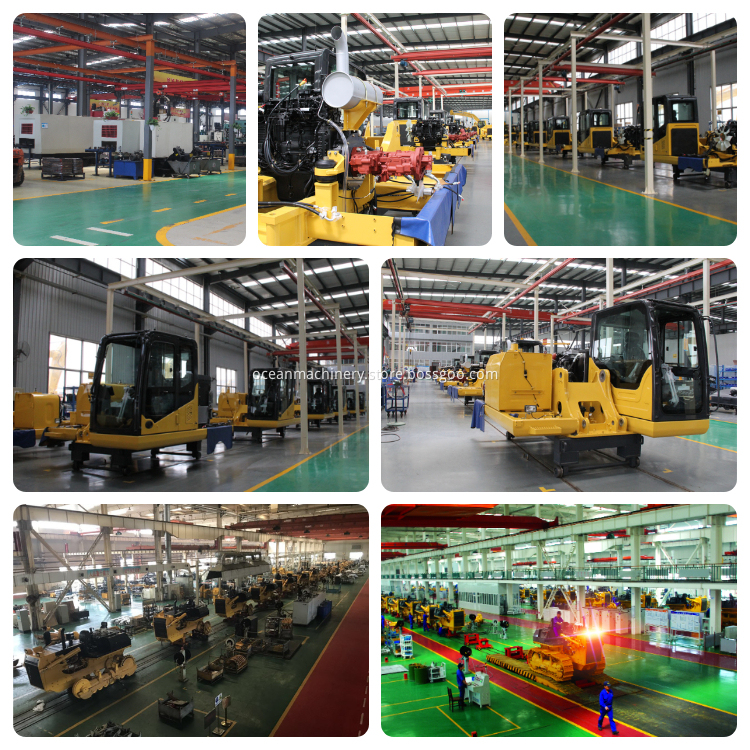

Factory line :

factory line 2

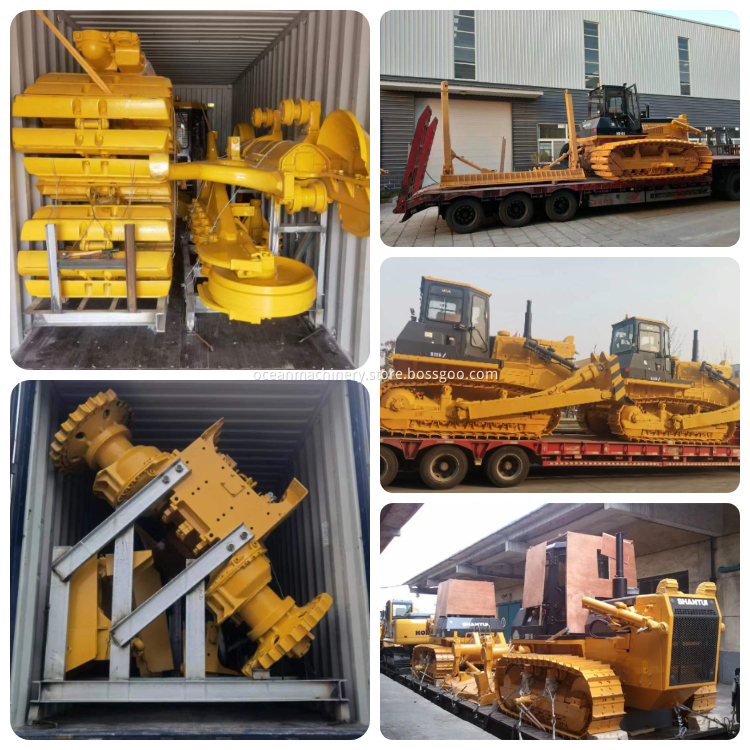

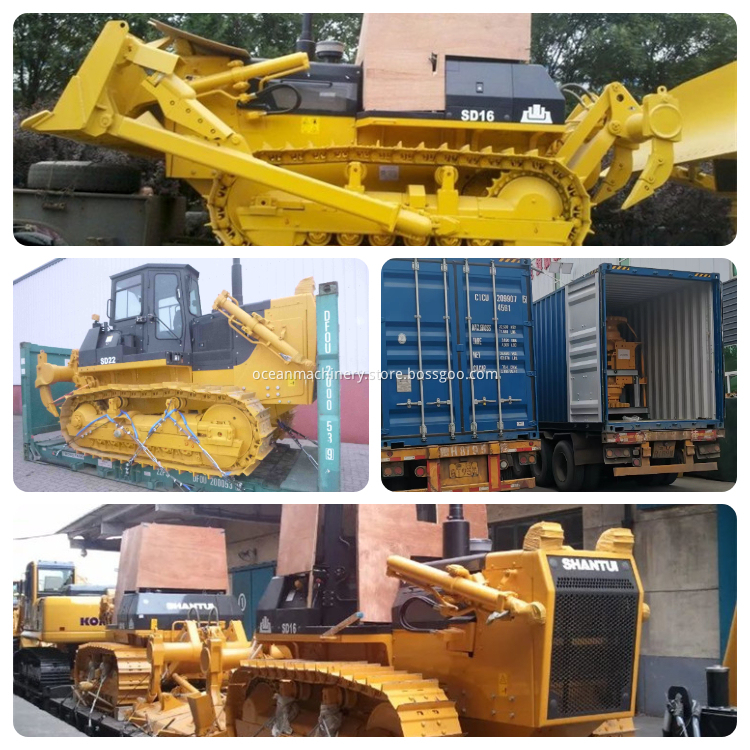

Pakaging type :

packaging picture 4

packaging picture

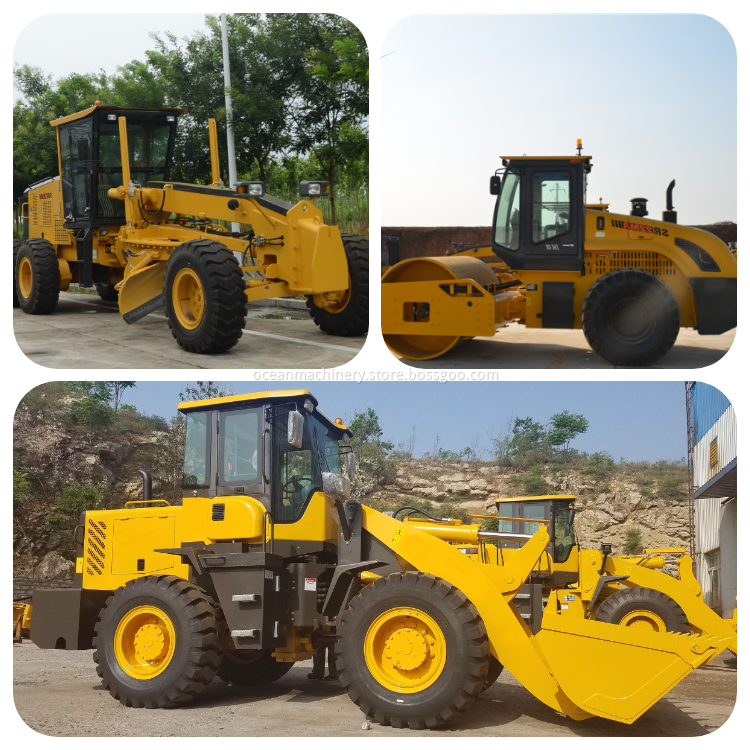

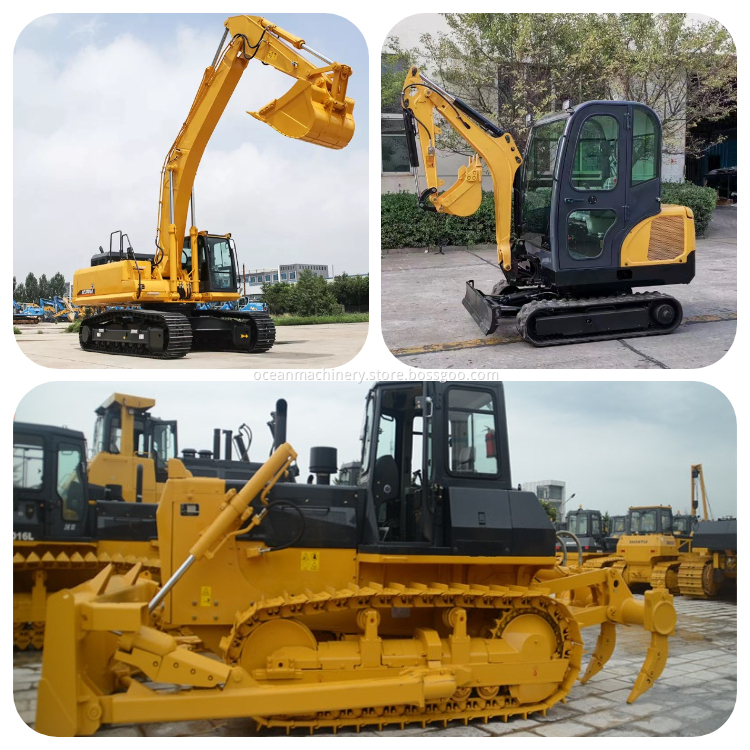

Related machinery :'
