Product details

Thermal film extrusion coating machine JF2200


Thermal film extrusion coating machine is the advanced products elaborately manufactured by our factory combined with actual production condition. The structure of this machine is reasonable, appearance is novelty, easy to operate and maintain, less energy consumption, high efficiency, products enjoy excellent quality, which is the ideal equipment for producing BOPP, BOPET thermal film.


Item

Parameters

Applicable film coating resin

EVA.EAA  coating level

Extrusion coating maximum width

1850 mm

Extrusion coating thickness

0.012-0.05 mm

Extrusion coating thickness error

≤±4% mm

Extrusion coating line speed

Max.150 m/min

Maximum extruding volume

350 kg/h

Run roller width

2020 mm

Die width

2260 mm (including blanking plate)

Die effective width

2200 mm

Unwind maximum diameter

φ800 mm

Rewind maximum diameter

φ800 mm

Paper-core specification

6 inches

Extruder power

110 KW

crew diameter

135mm L/D 28:1

Compressed air demanded

0.6 m3/min

Compressed air pressure

0.7 MPa

Electrical power supply



3 phase 5 cables 380V   50Hz

Full machine power

About 300 KW

External dimension

11.5m x 8m x 3.8m (L x W x H)

Full machine weight

About 30 tons

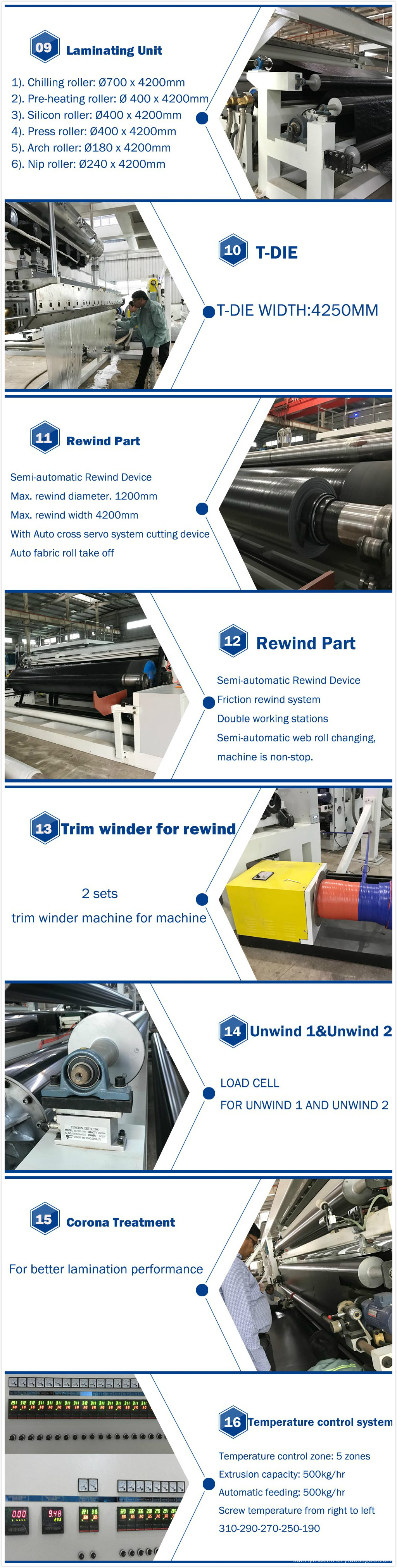

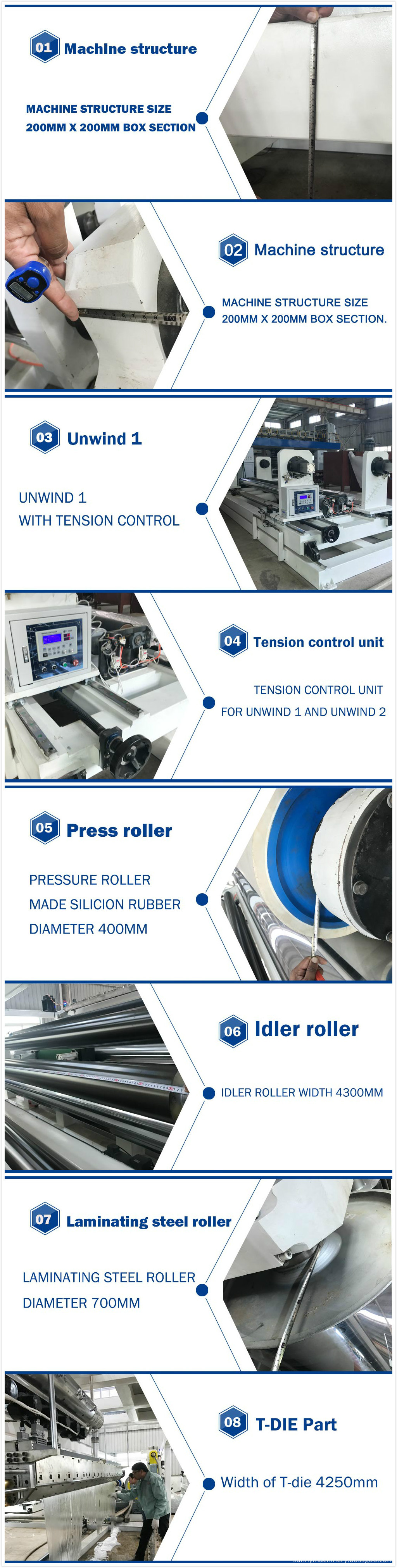

More details as below:

Extrusion Laminating Machine 01

Extrusion Laminating Machine 02

slitting machine

slitting machine

Extrusion laminating machine

Company Information

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 19 years of experiences.

 Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

 All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

  Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.

Slitting Machine

slitting machine ce

OUR EXHIBITIONS ALL OVER THE WORLD:

EXTRUSION LAMINATING MACHINE

slitting machine
