Product details

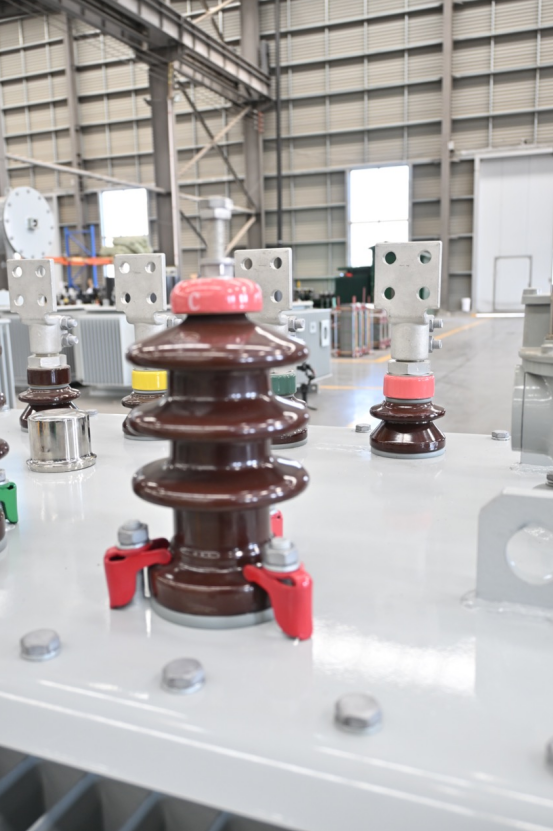

SH15-M-80 Sealed Amorphous Alloy Power Transformer is an oil-filled sealed type. Its principle is similar to that of a sealed power transformer. The basic elements of the amorphous alloy include iron, cobalt, nickel, silicon, boron, and carbon, among others. It is an isotropic soft magnetic material with low magnetization power, and it does not have structural defects that obstruct domain wall movement. The thickness is extremely thin, only 0.027mm, and the filling factor is relatively small, ranging from 0.75 to 0.8. Its electrical resistivity is very high, 3 to 6 times that of silicon steel sheets, and its hardness is 5 times that of silicon steel sheets. Amorphous alloy material is very sensitive to stress.

This transformer provides significant advantages in terms of energy efficiency and reduces losses, making it a reliable solution for power distribution and energy-saving applications.

Technical Specifications of SH15-M-80 Sealed Amorphous Alloy Power Transformer

Rated Capacity: 80KVA

No-load Loss: 60W

Load Loss: 1250W

No-load Current: 1.00%

These parameters describe the performance of the SH15-M-80 Sealed Amorphous Alloy Power Transformer:

No-load Loss: When the transformer is in no-load condition, it consumes 60W due to core material losses and other factors.

Load Loss: When the transformer is under load, the load loss is 1250W

No-load Current: In no-load condition, the transformer draws 1.00% of the rated current, indicating the amount of current consumed by the transformer when no load is applied.
