Product details

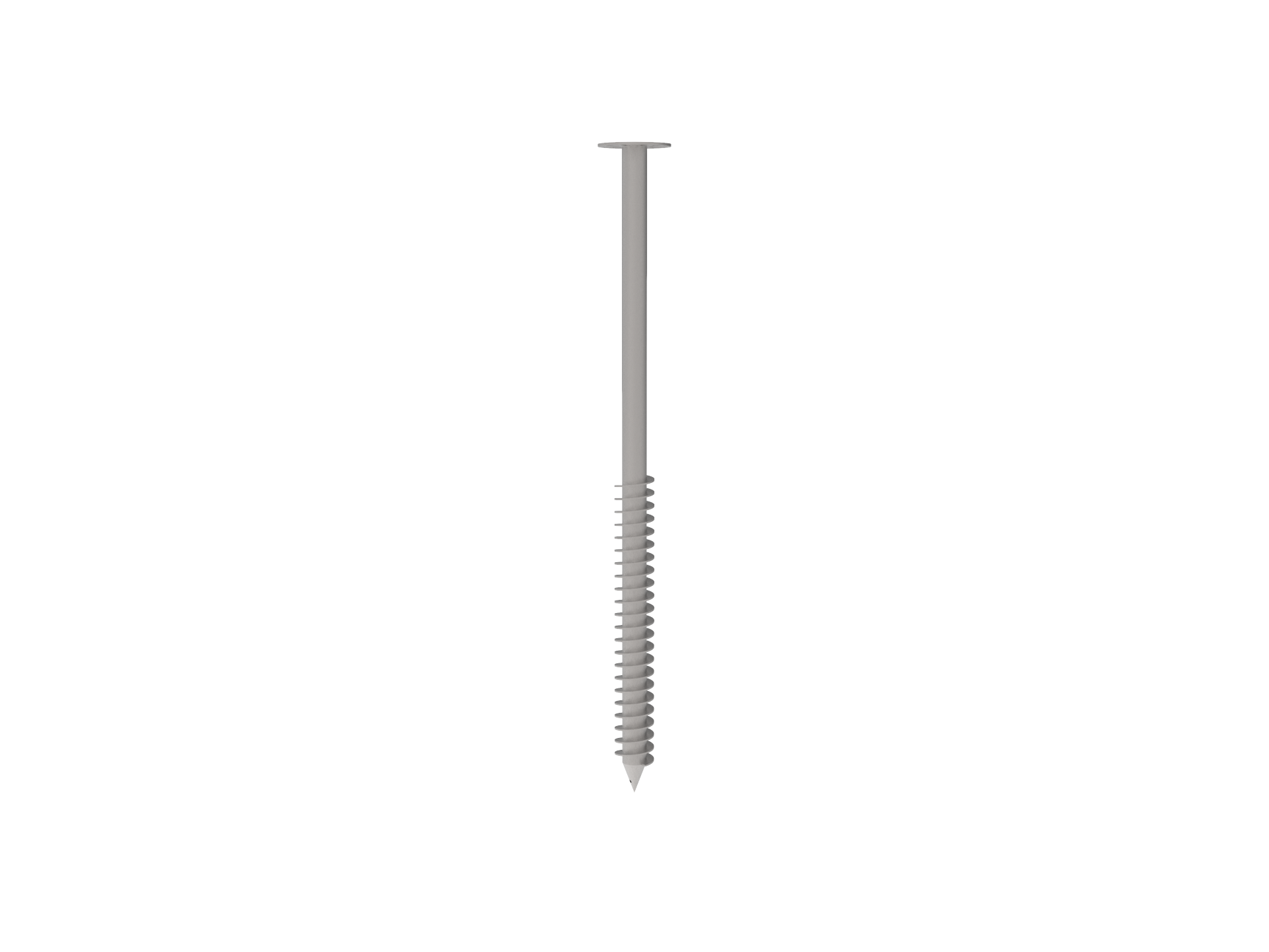

The Steel Compression Screw Piles is used as the base in the Ground Mounting for the assembly structure of ZAM Steel Floor Ground Mounting Kits and U-Shaped Steel Ground Bracket System. The Screw piles with flange or not are the same function but just fit for different installation ways for solar farm projects. Maywon has developed the screw piles with different shape and dimensions according to the ground conditions. The screw piles can be used in various of applications on ground solar projects.

Materials & Surface Treatment: HDZ Steel Q235B

Specification：Diameter 76mm*Length 1200mm/1600mm/1800mm/2000mm/2400mm/3000mm/3500mm

Assembly: Flange plate and screw M16/M20

Installation: Connect with All kinds of surroundings

Payment term: To order.
