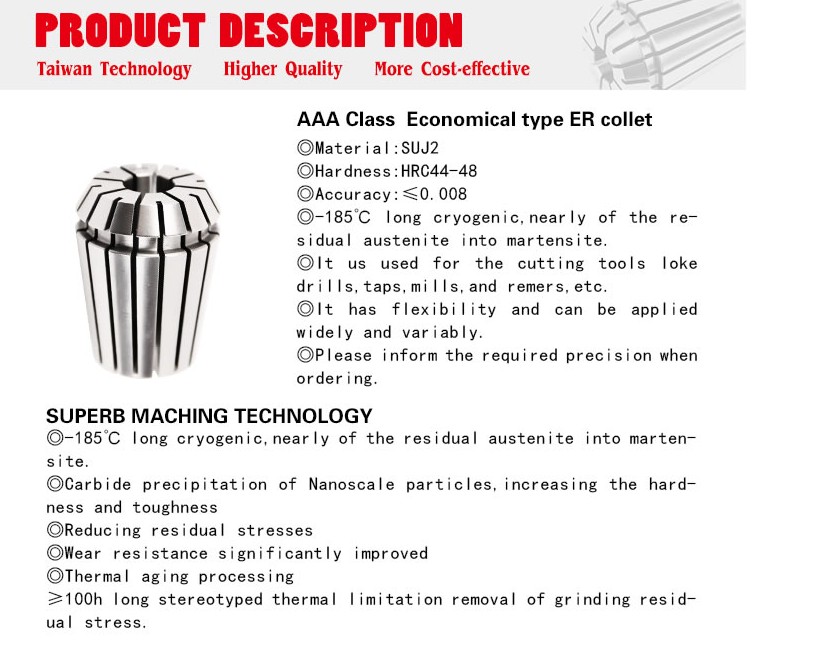

Milling Machine ER32 Collet Cnc Collet Chuck,ER collet chuck set ,The standard ER collet is the most widely used clamping tool in the world.Made from Alloy spring steel and fully hardened,the ER collets are ideal for many machining applications including boring, milling, reaming, tapping and grinding.
High accuracy ER collet chuck set
1.Precision Collet are applied for a variety of processing,including drilling, milling,tapping&grinding.
2.Spring Collet material: 65Mn. standard: DIN6499B
3.ER Collets hardness:HRC 44-48.
4. Din 6499 Collet full size: ER8,11,16,20,25,32,40,50.
5.BT-ER collet chucks, pull studs, wrenches/spanners available
ER Collets Set:
|
ER8 |
9 PCS |
1-5 mm(1,1.5,2,2.5,3,3.5,4,4.5,5mm) |
|
ER11 |
5PCS |
3-7mm(3;4;5;6;7mm) if 7PCS,includes 1&2mm |
|
ER16 |
8PCS |
3-10mm(3;4;5;6;7;8;9;10mm) |
|
ER20 |
6PCS |
3-13mm(3;4;6;8;10;13mm) |
|
11PCS |
3-13mm(3;4;5;6;7;8;9;10;11;12;13mm) |
|
|
ER25 |
7PCS |
4-16mm(4;6;8;10;12;14;16mm) |
|
15PCS |
2-16mm(2;3;4;5;6;7;8;9;10;11;12;13;14;15;16mm) |
|
|
ER32 |
6PCS |
6-20mm(6;8;10;12;16;20mm) |
|
11PCS |
4-20mm(4;5;6;8;10;12;13;15;16;18;20mm) |
|
|
18PCS |
3-20mm(3;4;5;6;7;8;9;10;11;12;13;14;15;16;17;18;19;20mm) |
|
|
ER40 |
7PCS |
6-25mm(6;8;10;12;16;20;25mm) |
|
15PCS |
4-26mm(4;5;6;8;10;12;13;15;16;18;20;21;23;25;26mm) |
|
|
23PCS |
4-26mm(4;5;6;7;8;9;10;11;12;13;14;15;16;17;18;19;20;21;22;23;24;25;26mm) |
|
|
ER50 |
12PCS |
10-34mm(10,12,14,16,18,20,22,24,26,28,30,32,34mm) |
