Product details

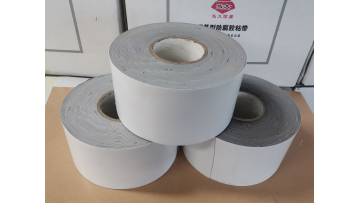

PE Corrosion Resistant Tape For Corrosion Protection

3-ply Adhesive Wrapping Tape:

Three ply tape consisting of stabilized polyethylene backing with plastic butyl rubber adhesive layer on both sides. The consistency of butyl rubber on one side should be formulated in such a way that under tension, it flows on uneven steel surfaces. The inner wrap tape must be fully compatible with the property of primer and the property of outer wrap. The tape must be self amalgamating between the layers and at overlaps. Highly conformable to any surface structure by thick butyl rubber layer facing pipe surface.

Product advantages
1. Thickness of adhesive layer is uniform and sealing is good.
2. Bonding force of substrate and adhesive layer is large. No adhesive failure occurs during storage and construction.
3. Heat resistance and aging resistance are good with strong capability of anti-UV.
4. Tensile strength is high and elongation at break is proper, which is in favor of mechanization and manual warp.
5. Varieties, specifications and colors are complete including inner wrap tape (inner tape), outer wrap tape (outer tape), joint wrap tape, anticorrosion primer and construction equipment etc.

logo

3-ply PE Adhesive Wrapping Tape（T 400 ）

I Description

TheT400 series is Cold applied tape coating system for corrosion protection of Oil, Gas, Petrochemical, and Waste Water underground or overhead pipelines. It is a three-ply cold applied tape with stabilised polyethylene bcking and butyl rubber adhesive layers on both sides.It is also used as inner-layer tape. It shall be applied by hand or with a wrapping machine

ⅡFeatures:

Excellent bonding between adhesive and carrier film via co-extruded intermediate layer.
Mechanically highly resistant tape system.
Practically impermeable to water vapour and oxygen.
Resistant to soil bacterial and soil electrolyte.
Compatible with coating from PE,PP,FBE,PU,CTE and Bitumen and ext… .

A Total Coating System with:

High adhesion and shear resistance

Resistance to corrosion disbondment

High electrical resistance

High dielectric strength

High corrosion protection for steel substrates

III Technical datas

PROPERTIES	UNIT	T 480	T 4100	TEST METHOD
Color Carrie film Adhesive inner layer Adhesive outer layer	--	black(grey/green) black black	black(grey/green) black blac	--
Thickness Carrie film Internal Adhesive External Ahesive	mm mm mm	0.3 0.34 0.16	0.3 0.45 0.25	ASTM D 1000
Tensile strength	N/cm	67	70	ASTMD1000
Elongation at break	%	450	500	ASTMD1000
Peel strength to pipe surface at 23 ℃ at 50℃	N/cm	18 1.3	20 1.5	EN 12068 Annex C
Peel strength tape to tape at 23 ℃ at 50℃	N/cm	25 3.5	30 4.0	EN 12068 Annex B
Dielectric strength	Kv/mm	32	33.8	ASTMD149
Insulation Resistance	Ohm.m²	10¹²	10¹²	EN 12068
Water Vapor Transmission	g/ m2 /24h	0.1	0.1	ASTM E 96
Brittleness temperature	℃	-46±4	-46±4	DIN53372
Water Absorption	%	0.1 max	0.1 max	ASTM D 570
Impact resistance at 23°	J	18	18	EN 12068
Cathodic disbandment at 23°c at 50°c	mm	15 30	15 30	EN 12068
Lap shear strength at 50℃	N/mm2	0.05	0.05	EN 12068
