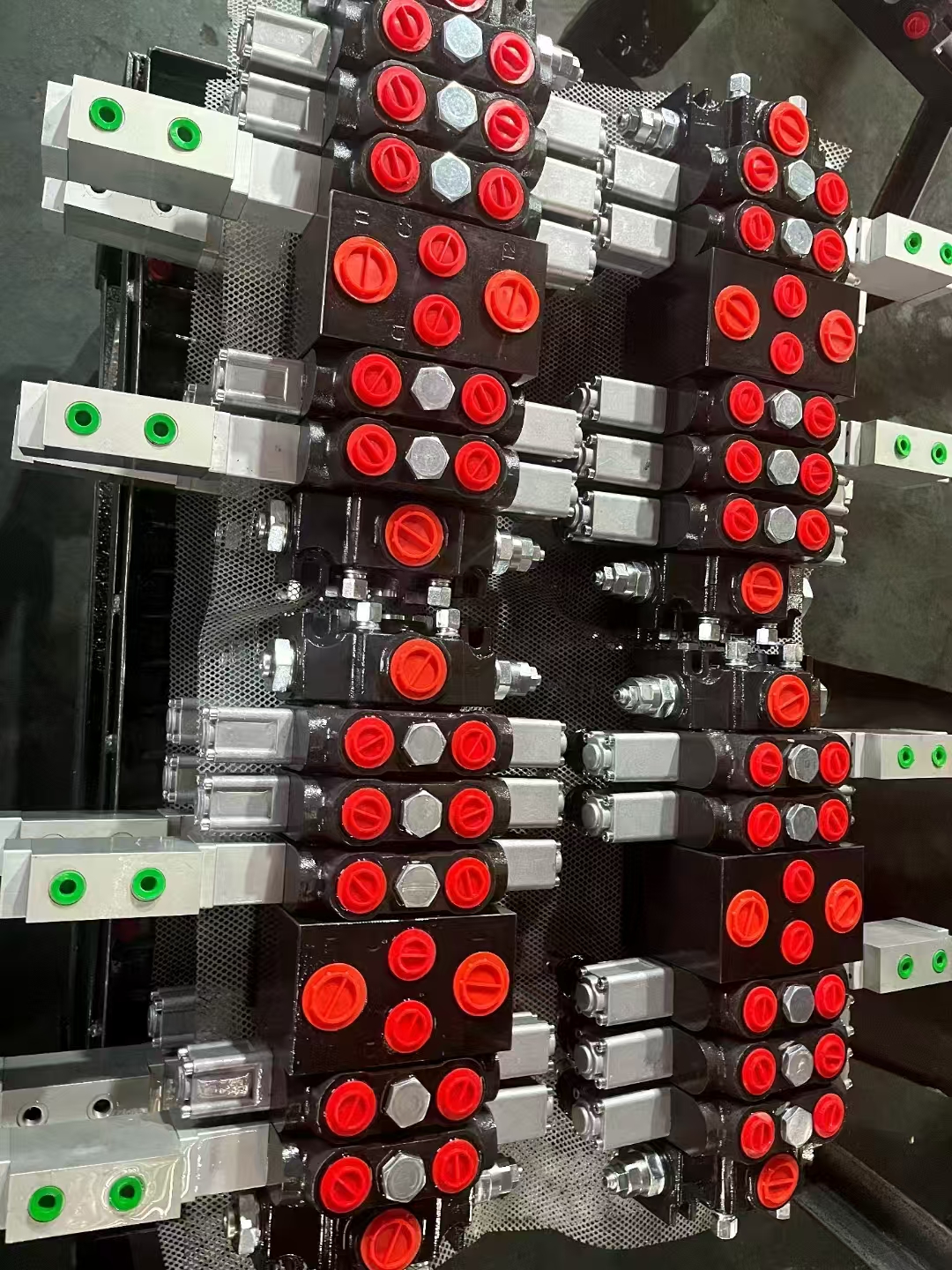

A multi-way valve is a hydraulic control component that is widely used in hydraulic systems to control the flow and pressure of hydraulic fluid, thereby regulating and controlling mechanical motion, protecting and controlling systems, etc. Here are some specific details about a multi-way valve:

Structure and Composition

• Basic Structure: A multi-way valve is usually composed of a valve cover, valve body, valve spool, and other components. The number and structure of the passages vary depending on their specific functions.

• Passage Configuration: Generally, a multi-way valve can be divided into inlet and outlet passages for connecting with external hydraulic systems, and control passages for controlling the flow and pressure within the hydraulic system.

Working Principle

• Pressure Compensation and Flow Control: A multi-way valve often incorporates a pressure compensation mechanism, such as a bypass valve. When the valve is not in operation and all valves are in the neutral position, the bypass valve compensates for the pressure difference, allowing a certain amount of fluid to bypass the main flow path. When a valve is activated, the bypass flow decreases under load pressure, providing the required flow rate based on the load pressure.

• Modular Design: A multi-way valve is typically designed with a modular approach, allowing different valve bodies to be combined according to specific functional requirements. This provides a flexible and reliable system solution.

Monoblock types with 1 to 3 working sections
Flow 40l/min with pressure 160bar, 200bar, 250bar
Spring side control options: T (spring return) and W (detent control)
Joining port: L (screw connection)
Parallel circuit

Spool function: O, P. Y, A

Nominal diameter: G1/2; G3/8; M18*1.5
Model examples: ZD-L102E-OT; ZD-L102F-OT.AT; ZD-L102F-OW;ZD-L102E-3OT;ZD-L102-T.OW.YT etc.

Lever side control options: manual.
