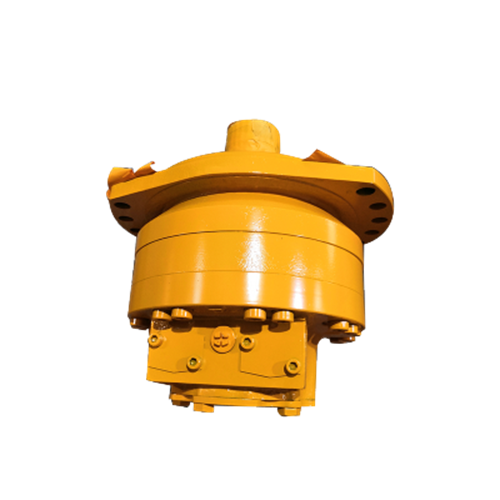

MS18 internal curve hydraulic motor

2 month ago

10 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 3 year year

Product details

The JM radial crankshaft-connecting rod hydraulic motor is a low-speed, high-torque hydraulic motor with a compensable six-lobed structure, featuring a series of characteristics such as good reliability, high cost-effectiveness, long service life, low noise, and a wide speed range. It can be widely applied in hydraulic transmission systems that require low-speed, high-torque operation, such as those in mining and construction machinery. It is particularly suitable for various rotating machinery, track and wheel driving mechanisms, and other transmission machinery.

Compared with existing radial piston crankshaft low-speed, high-torque hydraulic motors both domestically and internationally, the JM motor adopts hydrostatic balance and hydrostatic bearing technology for the hydraulic traveling motor, simplifying the structure and reducing frictional pairs. The manufacturing technology employs the latest techniques such as thermal spraying and a four-axis CNC machining center imported from the United States. Key bearings and seals use German-brand GM motor components, making it fully capable of replacing imported GM hydraulic motors.

1. The GM series motors have high mechanical efficiency and high starting torque (mechanical efficiency above 0.92 during startup).

2. The flat-face valve plate is simple and reliable, improving sealing performance, providing good low-speed stability, and minimizing leakage. Volumetric efficiency can reach above 0.97.

3. Due to the reduced frictional losses and improved sealing performance from the simplified structure, the hydraulic swing motor manufacturer's motor exhibits good low-speed stability and operates stably at 1 r/min.

4. As the piston and bearing sleeve are fixed with a retaining ring, they do not become obsolete, allowing the motor to operate under pumping conditions. When the inlet port is closed, the motor runs at high speed in a freewheeling state.

a71732747e839252e3d26dc23af5846ce606f19c
