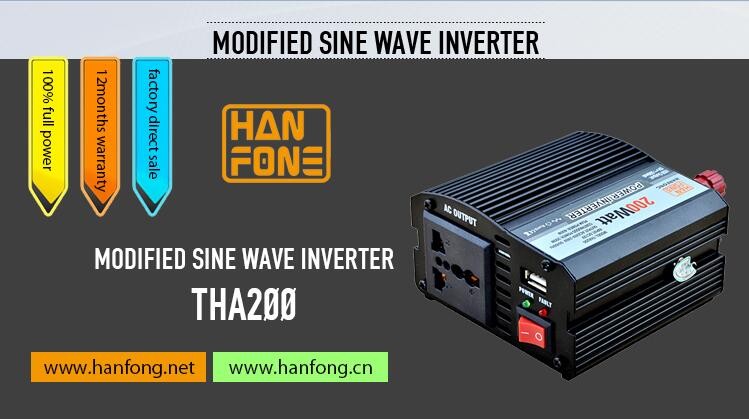

200W potable small size mini inverter type 12v 220v dc to ac car power converter Guangzhou manufacturer factory power inverter
12V 200W power inverter is modified sine wave inverter which converts DC power to AC power , 12V DC TO 220V AC inverter 12v to 110v car inverter . Full power inverter with strong protections., use for off grid system ,it is off grid inverter.
|
Model |
THA-200 |
|
|
INPUT |
Input voltage |
12VDC |
|
Input voltage range |
9.5VDC-15.5VDC |
|
|
Input current at no load |
0.2A-0.5A |
|
|
Output |
Output voltage wave form |
Modified sine wave |
|
Output voltage |
220 VAC |
|
|
Output voltage Regulation |
+/-10% |
|
|
Output Frequency |
50Hz+/-5% |
|
|
Output power(continuous power) |
200W |
|
|
Output power. Peak power |
400W |
|
|
Peak efficiency |
100% |
|
|
USB Charging port |
5VDC,500mA |
|
|

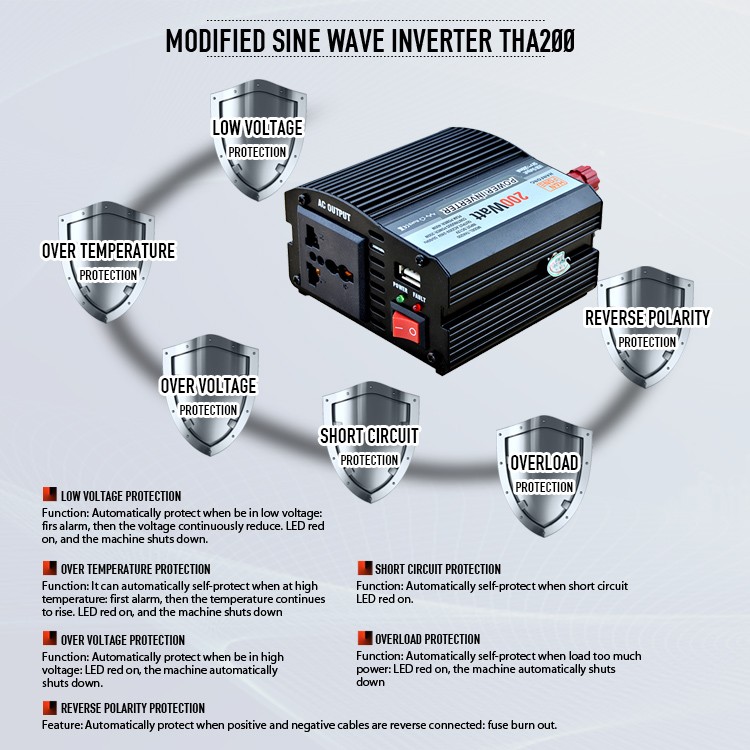

protection |
Low input voltage alarm |
Yes (10+/-0.3 VDC) |
|
Low input voltage shutdown |
Yes (<9.5 VDC) |
|
|
High input voltage shutdown |
Yes (>15.5 VDC) |
|
|
Soft start and DC/AC Isolate |
yes |
|
|
Over load shutdown |
Yes |
|
|
Leakage protection |
Yes |
|
|
Temperature protection |
Yes |
|
|
Short Circuit protection |
Yes |
|
|
Fuse |
20A |
|
|
Others |
Dimension (L*W*H)mm |
125*102*58 |
|
Weight(kg) |
0.48 |
|
For expand our oversea market ,we have took part in solar product and electronics products
exhibition around the world.
Over the past 19 years, we have earned many honors and certificates for company and also the products, such as Canton Fair Excellent supplier, CE, RoHS and patents certificates.
Guangzhou Hanfong New energy technology Co., Ltd. is a professional High-Tech modern enterprise, specialized in developing and producing series photovoltaic system. solar panel, fast charger, DC to AC inverter, UPS battery, solar controller,power inverter is our main product. Hanfong new energy technology is subsidiary of Guangzhou Gamatong electric co., ltd. Gamatong had decades of history in Communication and electric power industry. It is a professional High-Tech modern enterprise specialized in developing and manufacturing and sales founded in 1996.
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
Main Product:
Power Inverter,
Car Inverter,
Solar Inverter ,
Solar Charge Controller,
Portable Power Station,
Hybrid Inverter
