Red Bakelite Sheet Round Parts

2 week ago
2 0
Product details
Red phenolic laminate (Bakelite) machining components consist of layered thermosetting phenolic resin reinforced with organic or inorganic fillers. Key components include:

Phenolic resin (30-50%): Acts as the binding matrix, providing thermal stability and electrical insulation.

Fillers: Typically cellulose (wood pulp), cotton fabric, or paper (40-60%), enhancing mechanical strength and machinability. Modern variants may use fiberglass or mineral fillers.

Pigments: Iron oxide (Fe₂O₃) additives create the characteristic red color.

Additives: Lubricants (e.g., graphite) reduce friction; curing agents aid polymerization.

Manufactured under high heat/pressure, the cross-linked resin forms a rigid, non-conductive structure resistant to heat (≤120°C), chemicals, and wear. Composition varies by grade to optimize properties for electrical, mechanical, or thermal applications. Contains no asbestos in modern formulations.

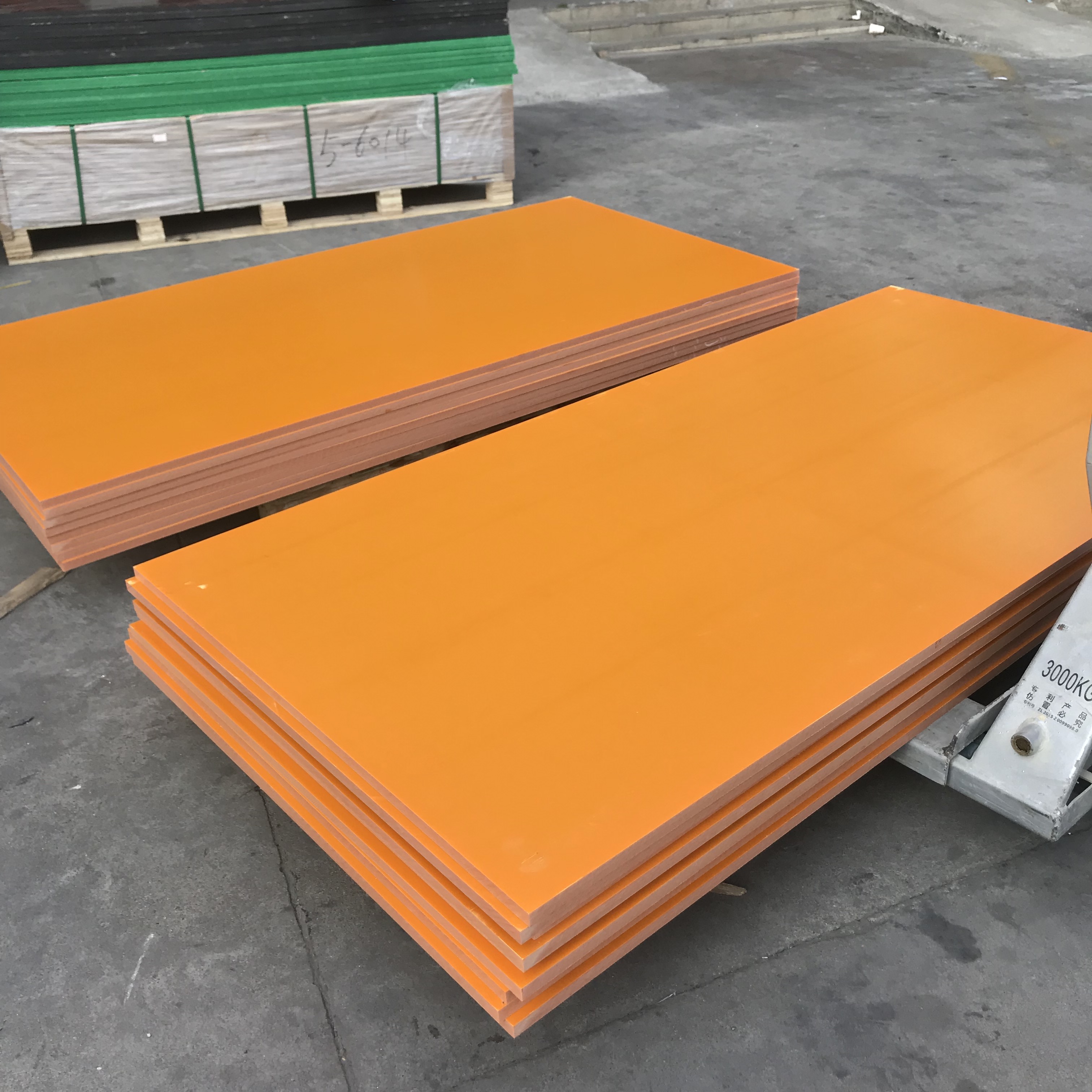

Bakelite Sheet (3)

Red phenolic laminate machining components exhibit key properties:

Electrical Insulation: High dielectric strength, ideal for electrical applications.

Thermal Resistance: Stable up to 120°C; avoids deformation under moderate heat.

Mechanical Strength: Rigid structure with good wear resistance; handles machining stresses.

Chemical Resistance: Resists solvents, oils, and mild acids.

Dimensional Stability: Low moisture absorption (<1%) ensures precision post-machining.

Machinability: Smooth cutting with minimal tool wear; retains edge sharpness.

Flame Retardancy: Self-extinguishing (UL94 V-0 rated).


bakelite parts


Red phenolic laminate machining parts are widely used in:

  1. Electrical Systems: Insulators, terminal blocks, and switchgear components (high dielectric strength).

  2. Automotive: Distributor caps, gears, and bushings (heat/wear resistance).

  3. Industrial Machinery: Bearings, rollers, guides (dimensional stability, low friction).

  4. Electronics: Circuit board supports, connectors (flame retardancy, precision).

  5. Aerospace: Non-conductive housings, sensor mounts (lightweight, thermal resilience).

  6. Consumer Appliances: Handles, knobs (color retention, chemical resistance).

  7. Tooling: Jigs, fixtures (machinability, durability).
    Suitable for high-voltage, high-wear, or temperature-sensitive environments, replacing metals in cost-sensitive applications. Excludes asbestos in compliance with safety standards.

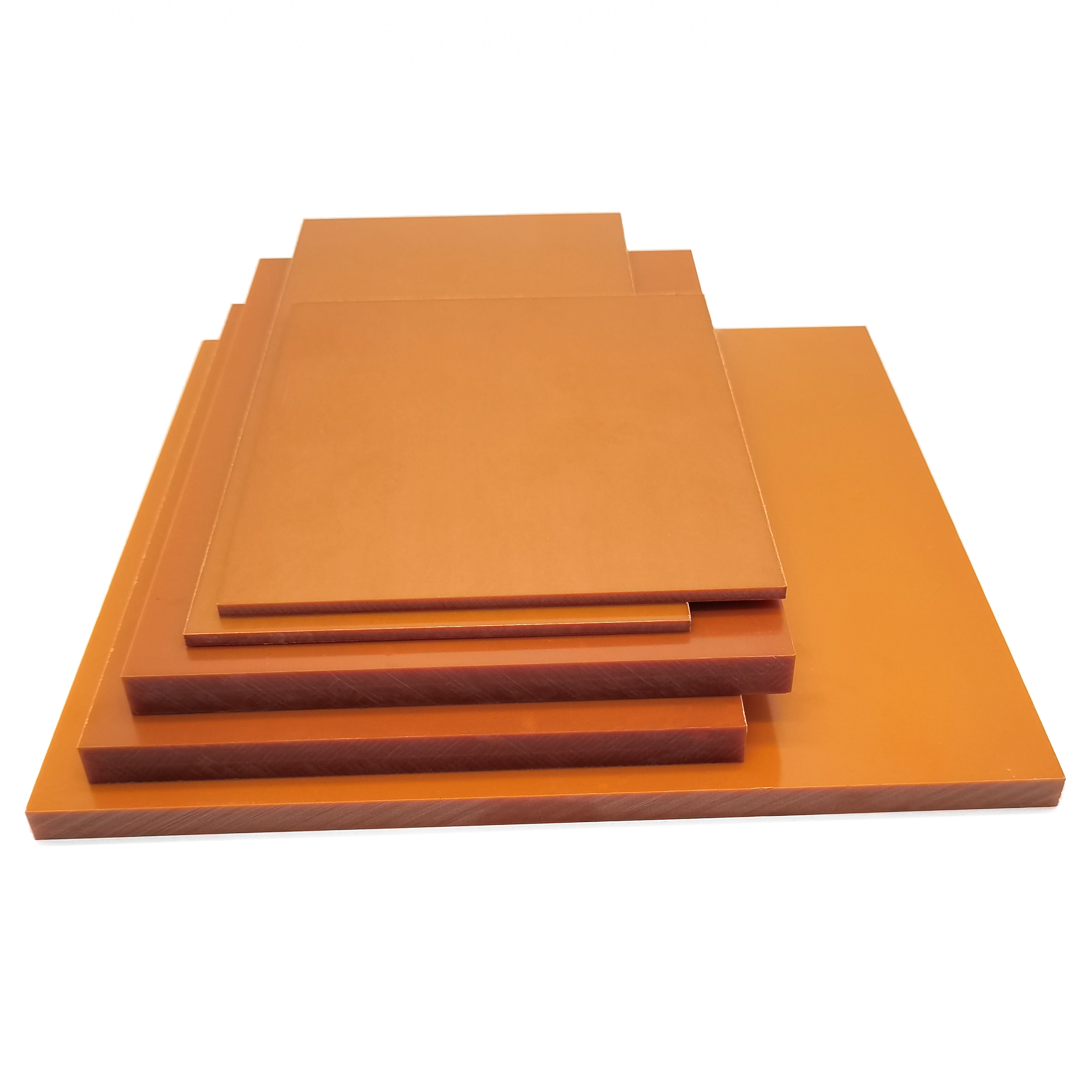

Bakelite (4)
