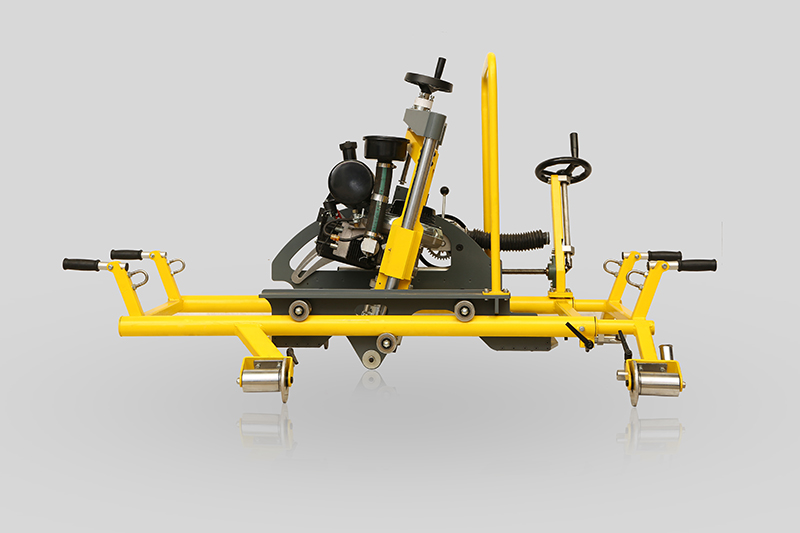

GJM-6.0 Rail and switch grinding machine

4 day ago
1 0
Product details

Vertical Rail and Switch Grinding Machine


PRODUCT FEATURES

GJM-6.0 vertical rall &switch grinding machine is a dedicated track maintenance machine for precise grinding of rails and various types of switches. It can be used for comprehensive and accurate grinding of rail surfaces, sides, arcs, switch and frog centers of rails and switches. The single-cylinder air- cooled two-stroke M165 gasoline engine imported from Spain is selected as the power, which can be turned 90° to .the inner side of the rail and 30° to the outer side of the rail for grinding operations. The cylindrical resin grinding wheel end face flat grinding method ensures the precision of grinding the rail. The use of the chain and the arc guide groove to coordinate the imit method, to promote the grinding wheel to be accurately positioned at any position of the rail head cross section. After several displacement polishing on the rail head, the contour of the rail head can be accurately.



Railroad Grinding Machine


TECHNICAL DATA

Engine 2 stroke petol engine
Rated power 6.0 kW
Fuel tank volume 4L
Grinding wheel speed ≥3600 r/min
Grinding wheel specifications φ125x65 mm
Horizontal grinding stone stroke ≥300 mm
Vertical grinding stone feeding stroke ≥45 mm
Grinding wheel rotation angle 90° to the inner side of the rail
30° to the outer side of the rail
Feed adjustment accuracy 0.1 mm
Angle adjustment accuracy
Weight 118 kg
Dimensions 2380x1110*870 mm
