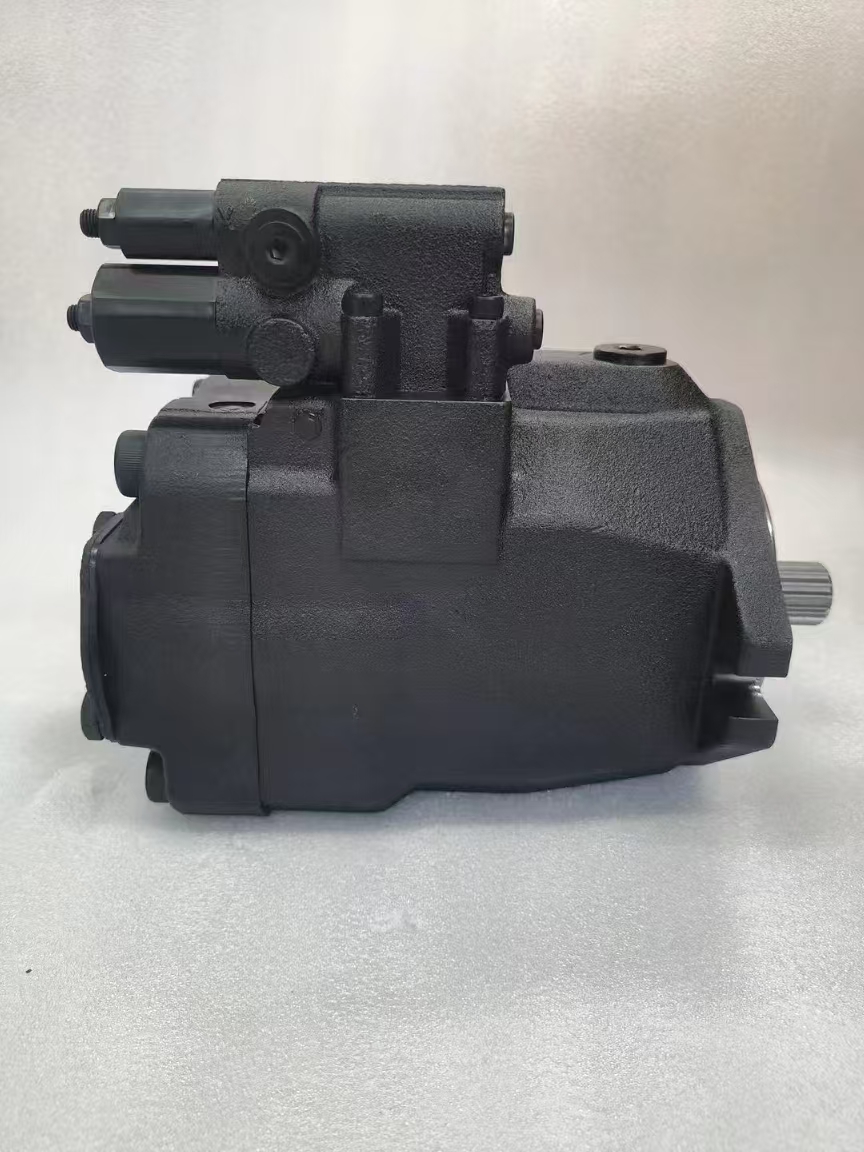

Domestic Substitute Hydraulic Pump 15140666 (for Volvo Dump Trucks A25F/G and A30F/G) Detailed Overview

I. Technical Specifications

• Flow Rate and Pressure:

• Maximum flow rate reaches 80 l/min, with a rated pressure up to 700 bar (varies by model), meeting the high-pressure operational needs of Volvo dump trucks.

• Maximum Power:

• Power range covers up to 30 kW (adjustable based on specifications), compatible with vehicle power output.

• Structural Design:

• Features a radial piston pump design with a star-shaped cylinder arrangement and valve-type flow distribution, ensuring efficient and stable operation.

II. Product Features

• Precise Compatibility:

• Specifically designed for Volvo A25F/G and A30F/G dump trucks, with installation dimensions and interfaces fully matching the original pump for plug-and-play convenience.

• Material Upgrade:

• The valve body is made of 316 stainless steel, offering enhanced corrosion resistance and suitability for harsh working conditions such as mining and construction sites.

• Electrical Characteristics:

• Equipped with a 1/2-inch electrical interface and 24 VDC power supply, complying with industrial standards and facilitating easy integration into the vehicle's electrical system.

• Quality Certifications:

• Certified to ISO 9001 quality standards, with some models also holding UL, CE, and explosion-proof certifications, ensuring reliability.

III. Application Scenarios

• Construction Machinery:

• Drives hydraulic cylinders and motors in Volvo dump trucks, enabling core functions like lifting and dumping.

• Industrial Applications:

• Suitable for industries requiring high-pressure and corrosion-resistant pumps, such as metallurgy, chemicals, and petroleum, where it can replace imported pumps to reduce costs.
