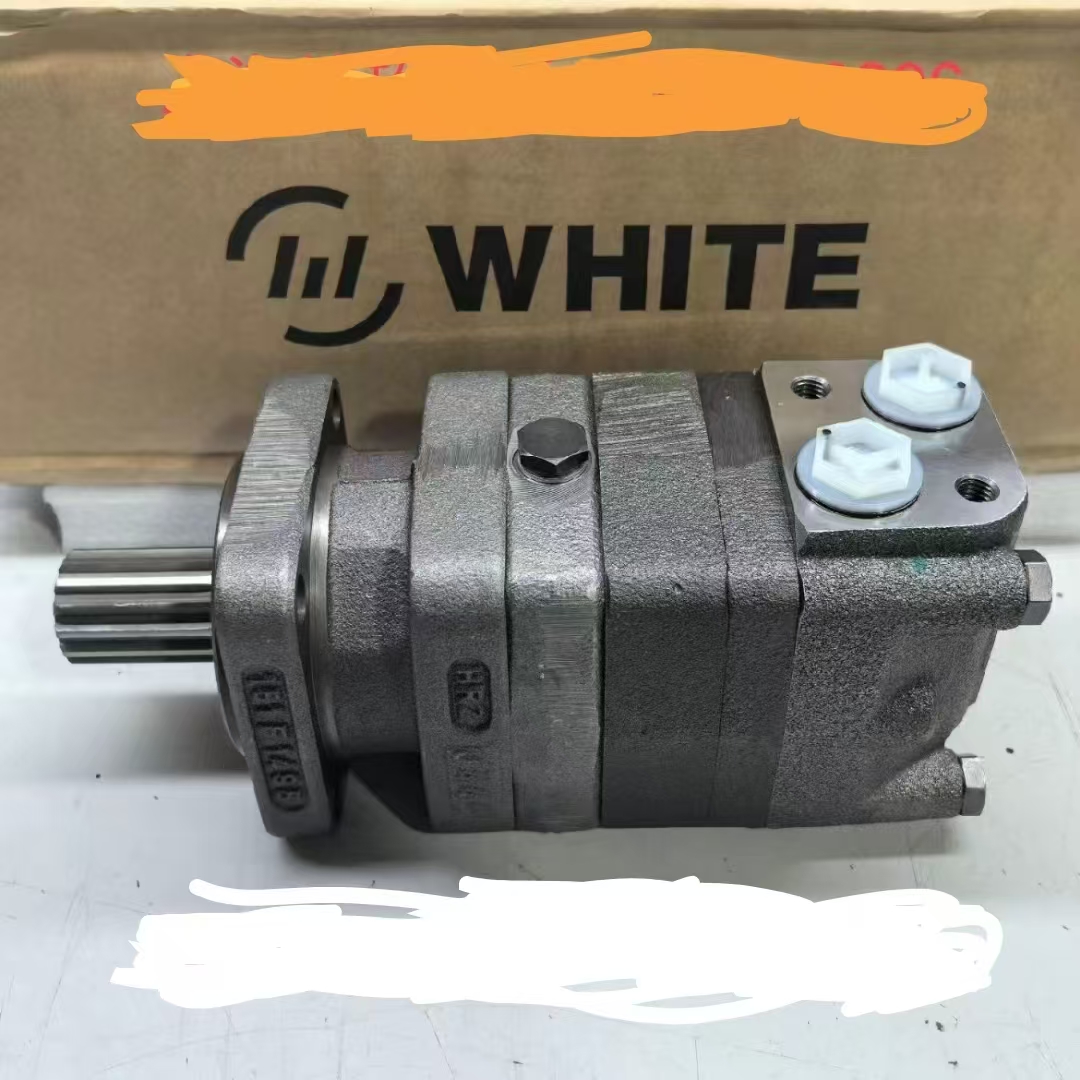

white hydraulic motor oms160":

Technical Specifications

• Displacement: 164 cm³

• Continuous Pressure: 103 Bar

• Intermittent Pressure: 121 Bar

• Peak Pressure: 155 Bar

• Continuous Speed: 370 rpm

• Intermittent Speed: 460 rpm

• Continuous Flow: 16 GPM

• Intermittent Flow: 20 GPM

• Continuous Torque: 22.2 daNm/bar

• Intermittent Torque: 26.5 daNm/bar

• Weight: 8.3 kg

Features

• Roller Stator Motor Design: By using roller contact instead of fixed or sliding contact, this design improves efficiency and lifespan.

• Heavy-load Drive Connection: Utilizes full-flow lubrication to enhance durability.

• Built-in Oil Distribution Valve: Ensures high volumetric efficiency of the system.

• Hydrostatic Bearing Design: Provides good lubrication and reliability.

• High-pressure VITON Shaft Seal: Offers excellent sealing life and performance, eliminating the need for case drain oil.

• Pressure Oil Supply Bearing: The surface withstands clean, cooled, forced oil flow.

Applications

• Light to Medium Duty Applications: Such as light vehicles, positioning machines, conveyor belts, rotators, conveyor rollers, rotary machines, and screw drives.

Additionally, this hydraulic motor is suitable for high-pressure, large-flow, and high-power systems, as well as applications requiring flow regulation, such as gantry planers, broaching machines, hydraulic presses, mining and metallurgical machinery, and ships. Its advanced Geroler gear set design allows for low startup pressure, smooth and reliable operation, and high efficiency. The shaft seal can withstand high back pressure, and the motor can be used in parallel or in series. The special design of the drive coupler and distribution system extends the service life and meets the requirements of low noise units. It is compact and easy to install.
