Laser cutting Φ2.4mm 304 endoscope bending section

Laser cutting Φ2.4mm 304 endoscope bending section

6 day ago

7 0

Changzhou Bluebird Micro Precision Technology Co., Ltd

 2 year year

Product details

Endoscopic Bending Section laser cutting machines are primarily used for laser micromachining of various endoscopic snake bone structures. By focusing a high-energy laser beam onto the surface of metal tubes, the material is instantly vaporized or melted, and molten slag is removed via high-pressure gas, achieving complex shapes such as micron-level aperture cutting, grooving, and hollowing. Compatible with stainless steel, nitinol, magnesium alloys, and other metal tubing, these machines ensure the flexibility and durability of snake bone joints while meeting the stringent requirements of minimally invasive surgical instruments for high cleanliness, burr-free edges, and minimal thermal damage.

Advantages of Endoscopic Bending Section Laser Cutting Machines

Non-contact laser processing eliminates mechanical stress deformation, delivering smooth burr-free cuts with minimal heat-affected zones (HAZ) and high precision.

Customizable functional modules, including automatic feeding systems and dry/wet cutting sealed material handling systems, enhance production efficiency.

Flexible parameter adjustment enables rapid configuration changes to meet small-batch, multi-variety production demands.

Advanced laser micromachining software features an intuitive interface for user-friendly operation.

Modular hardware/software integration supports personalized functional configurations and intelligent production management.

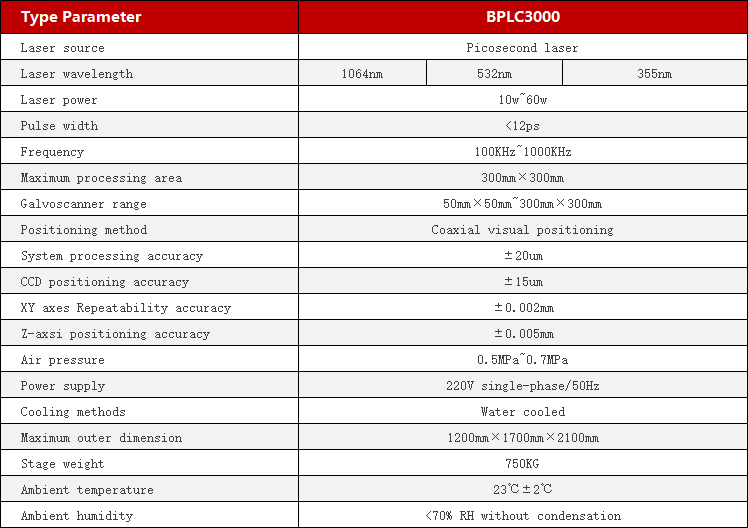

Parameters of Endoscopic Bending Section Laser Cutting Machines

Endoscope Bending Section Laser Cutting Machine

Applications of Endoscopic Bending Section Laser Cutting Machines

These machines are widely used in the laser micromachining of flexible endoscopic snake bone tubes, hypotubes, spiral tubes, and spring tubes, including urological endoscope snake bones, choledochoscope snake bones, gastrointestinal endoscope snake bones, anorectal endoscope snake bones, and thoracic endoscope snake bone tubes. They enable high-precision processing of biocompatible materials such as nitinol, stainless steel, and cobalt-chromium alloys, meeting the medical industry’s demands for high cleanliness and consistency. Essential in medical device manufacturing, they play a critical role in producing minimally invasive surgical instruments and endoscopic accessories.

Sample Display of Laser-Cut Endoscopic Bending Sections

SUS304 Φ2.4 disposable uroscope snake bone
