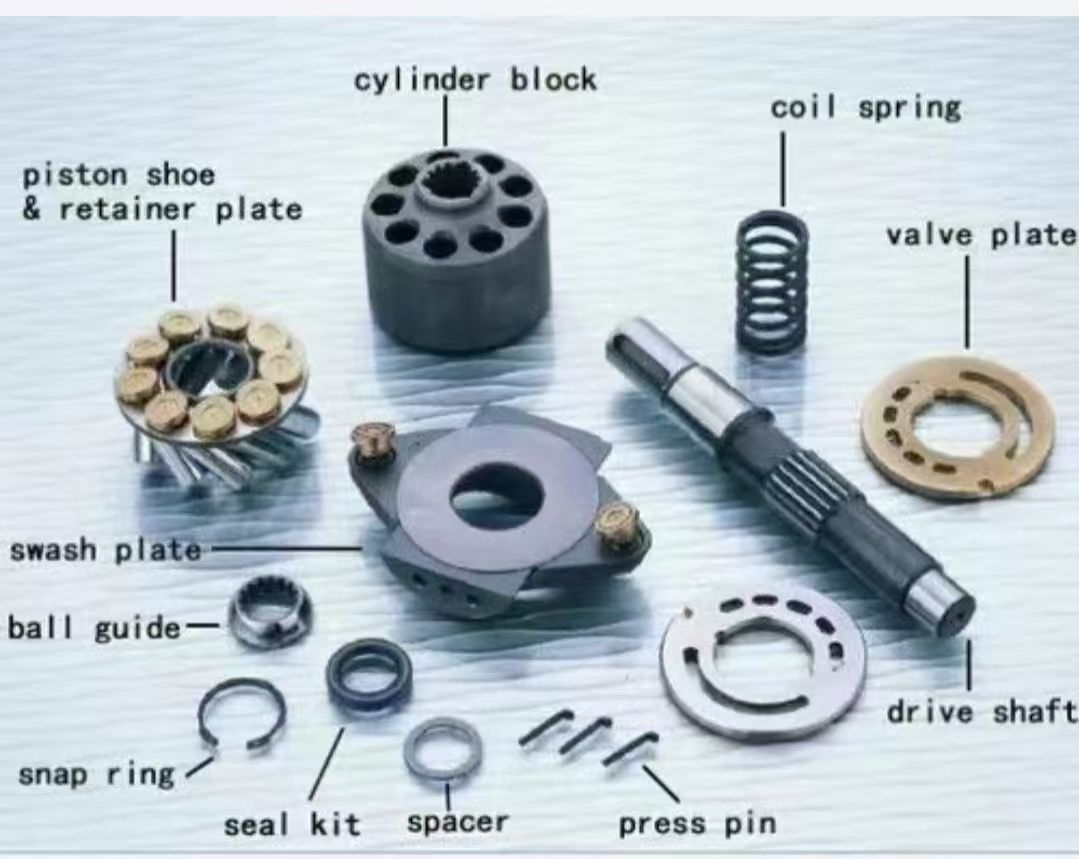

the technical breakdown for hydraulic pump components:
1. Cylinder Block
• Definition: A metal casting containing cylinders and cooling ducts, serving as the main structural support for the pump.
• Function: Houses pistons, bearings, and oil passages while withstanding high pressures.
• Material: Typically made of cast iron, aluminum alloy, or high-strength steel.
2. Coil Spring
• Definition: A helical spring made of spring steel, used for cushioning or applying pressure.
• Function: Provides resilience in valve assemblies, piston return mechanisms, or shock absorption.
• Application: Common in automotive seats, motorcycle suspensions, and hydraulic valve actuators.
3. Piston Shoe
• Definition: A sliding interface between the piston and swash plate in axial piston pumps.
• Function: Converts rotational motion of the swash plate into linear piston movement, minimizing wear.
• Material: Often uses self-lubricating composites (e.g., PTFE-filled) or bronze alloys.
4. Retainer Plate
• Definition: A thin plate with tabs or holes to secure components like valves or pistons.
• Function: Prevents axial movement of parts under pressure, ensuring sealing and alignment.
• Design: Critical for flatness (<0.02mm) to maintain sealing effectiveness.
5. Valve Plate
• Definition: A flat plate with precision-machined ports and valve seats.
• Function: Controls fluid flow direction, pressure, and flow rate through valve-seat interaction.
• Manufacturing: Valve seats are often lapped to a surface finish of Ra ≤0.4μm.
6. Swash Plate
• Definition: An angled plate that oscillates to drive pistons in axial pumps/motors.
• Function: Adjusting its angle varies piston stroke and displacement (for variable pumps).
• Lubrication: Requires oil grooves for hydrodynamic lubrication between the plate and piston shoes.
7. Ball Guide
• Definition: A spherical bearing or guide for linear motion components (e.g., piston rods).
• Function: Reduces friction and ensures precise alignment in high-load applications.
• Material: Typically high-carbon chromium steel (e.g., GCr15) hardened to HRC60-65.
8. Drive Shaft
• Definition: A rotating shaft transmitting torque from the motor to the pump.
• Function: Must withstand torsional and bending loads; often step-shaped for bearing/coupling fits.
• Failure Modes: Fatigue cracks or overload breakage.
9. Snap Ring
• Definition: A split ring that expands to fit into grooves, securing components axially.
• Function: Prevents axial movement of bearings, gears, or shafts.
• Installation: Requires specialized pliers to compress the ring for installation.
10. Seal Kit
• Definition: A kit containing O-rings, Y-seals, and gaskets for maintenance.
• Function: Prevents hydraulic fluid leakage; materials vary by pressure (e.g., Viton for >35MPa).
• Common Issue: Leakage due to wear or compression set; static seals can sometimes be retightened.
11. Spacer
• Definition: A thin plate used to adjust clearance between components.
• Function: Compensates for manufacturing tolerances in assemblies.
• Material: Metal, plastic, or composite, depending on application.
12. Press Pin
• Definition: A cylindrical pin pressed into a hole to fix or locate components.
• Function: Secures parts under moderate loads; often used for pivot pins or locating dowels.
• Installation: May require cryogenic fitting (e.g., liquid nitrogen cooling).
Maintenance & Troubleshooting
• Cylinder Block: Replace if cracked; clean oil passages ultrasonically.
• Coil Spring: Replace if fractured due to fatigue or overload.
• Snap Ring: Replace if elastic resilience is lost.
• Seal Kit: Prioritize dynamic seals (e.g., piston seals) for leakage; static seals may be reused if undamaged.
