SHANTUI SD32 Bulldozer working video

2 year ago

45 0

Shandong Vio Machinery co.,ltd.

 3 year year

Product details

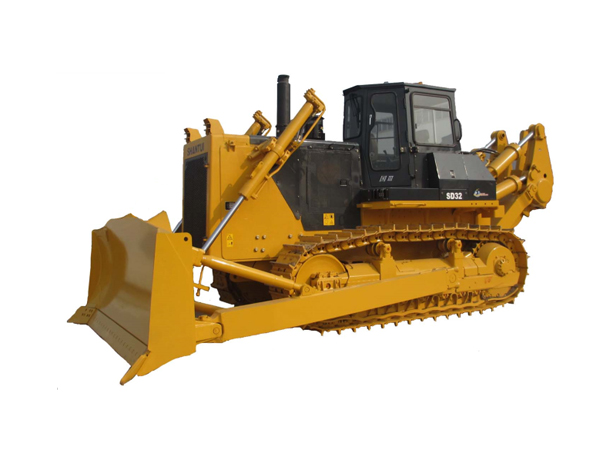

SHANTUI BULLDOZER SD32

ENGINE POWER

With 257kW/2000rpm, this engine conforms to China-III emission regulation.

OVERALL WEIGHT

40200kg (Standard)

ENGINE MODEL

WP12/ QSNT-C345

We are specializing in wholesale supply of dozer parts, wheel loader parts, excavator spare parts, engine parts, Road Roller Parts, Motor Grader Parts, sinotruck parts, We have enough engines and parts in our warehouse, we have business relationships with more than 1000 OEM factories and distributors, we can provide accurate parts and competitive prices. All spare parts apply for crawler bulldozer, excavator for sale, wheel loader for sale, road roller, Earth-moving Machinery, with excellent quality.

SD32

Parameter name	SD32 (Standard version)	SD32C (Coal version)	SD32W (Rock version)	SD32D (Desert version)	SD32R (Environmental sanitation version)
Performance parameters
Operating weight (Kg)	40200	40500	40900	39500	37100
Ground pressure (kPa)	97.7	98.4	99.4	96	90.2
Engine
Engine model	WP12/QSNT-C345	QSNT-C345	WP12/QSNT-C345	QSNT-C345	QSNT-C345
Rated power/rated speed (kW/rpm)	257/2000，258/2000	257/2000	258/2000，257/2000	257/2000	257/2000
Overall dimensions
Overall dimensions of machine (mm)	865041303760	865047553760	865041303760	865041303760	865043323760
Driving performance
Forward speed (km/h)	F1:0-3.6 F2:0-6.6 F3:0-11.5	F1:0-3.6 F2:0-6.6 F3:0-11.5	F1:0-3.6 F2:0-6.6 F3:0-11.5	F1:0-3.6 F2:0-6.6 F3:0-11.5	F1:0-3.6 F2:0-6.6 F3:0-11.5
Reversing speed (km/h)	R1:0-4.4 R2:0-7.8 R3:0-13.5	R1:0-4.4 R2:0-7.8 R3:0-13.5	R1:0-4.4 R2:0-7.8 R3:0-13.5	R1:0-4.4 R2:0-7.8 R3:0-13.5	R1:0-4.4 R2:0-7.8 R3:0-13.5
Chassis System
Center distance of track (mm)	2140	2140	2140	2140	2140
Width of track shoes (mm)	560/610/660/710	560/610/660/710	560/610/660/710	560/610/660/710	560/610/660/710
Ground length（mm）	3150	3150	3150	3150	3150
Tank capacity
Fuel tank (L)	640	640	640	640	640
Working device
Blade type	Straight tilting blade , Angle Blade and Semi-U blade	Semi-U coal blade and coal U-blade	Rock straight tilting blade, rock angle blade and rock semi-U blade	Straight tilting blade , Angle Blade and Semi-U blade	Sanitation blade
Digging depth (mm)	560/630/560	560	560/630/560	560/630/560	560

We are now one of the largest and best Wheel Loader Parts exporters in China. We can supply all kinds of high quality original and custom spare parts for wheel loaders, excavators, rollers, graders and other products.
