SHJ1.0mm 3711K Pin header Connector

5 week ago

13 0

 7 month year

Product details

Meet the demands of modern miniaturization with the YZTECH SHJ1.0mm Wafer Male Pin Header Connector,a surface-mount wafer engineered for superior performance in high-density PCB designs.This single-row header connector features a compact 6-pin configuration in a precise rectangular form factor,adhering to DIN standards for guaranteed compatibility.The heart of the wafer housing terminal lies in its high-strength phosphor bronze contacts,finished with a flat tin plating that ensures optimal solderability during reflow processes and stable electrical performance with a 1A,125V rating.Encased in a heat-resistant nylon body,it maintains structural integrity across an operating temperature of -25℃ to +85℃,making it a robust and space-efficient interconnection solution.

This connector is specifically designed for seamless integration into automated SMT production lines.Its stable wafer base ensures consistent coplanarity,preventing tombstoning and facilitating reliable,high-speed placement for maximum manufacturing throughput and yield.The robust material construction provides exceptional resistance to mechanical vibration and thermal cycling,which is critical for the long-term reliability of the end-product in challenging environments.Supplied in practical reel packaging,it streamlines the logistics of volume procurement and is ready for immediate deployment in efficient,automated assembly processes.

The YZTECH SHJ1.0mm header is an ideal component for a wide spectrum of advanced electronic applications,including micro-inverter controls,sophisticated IoT sensor modules,high-speed communication boards,and compact digital entertainment systems.By selecting this connector,engineers secure a proven solution that enhances circuit density,simplifies the manufacturing workflow,and bolsters the durability and performance of next-generation electronic devices on a global scale.

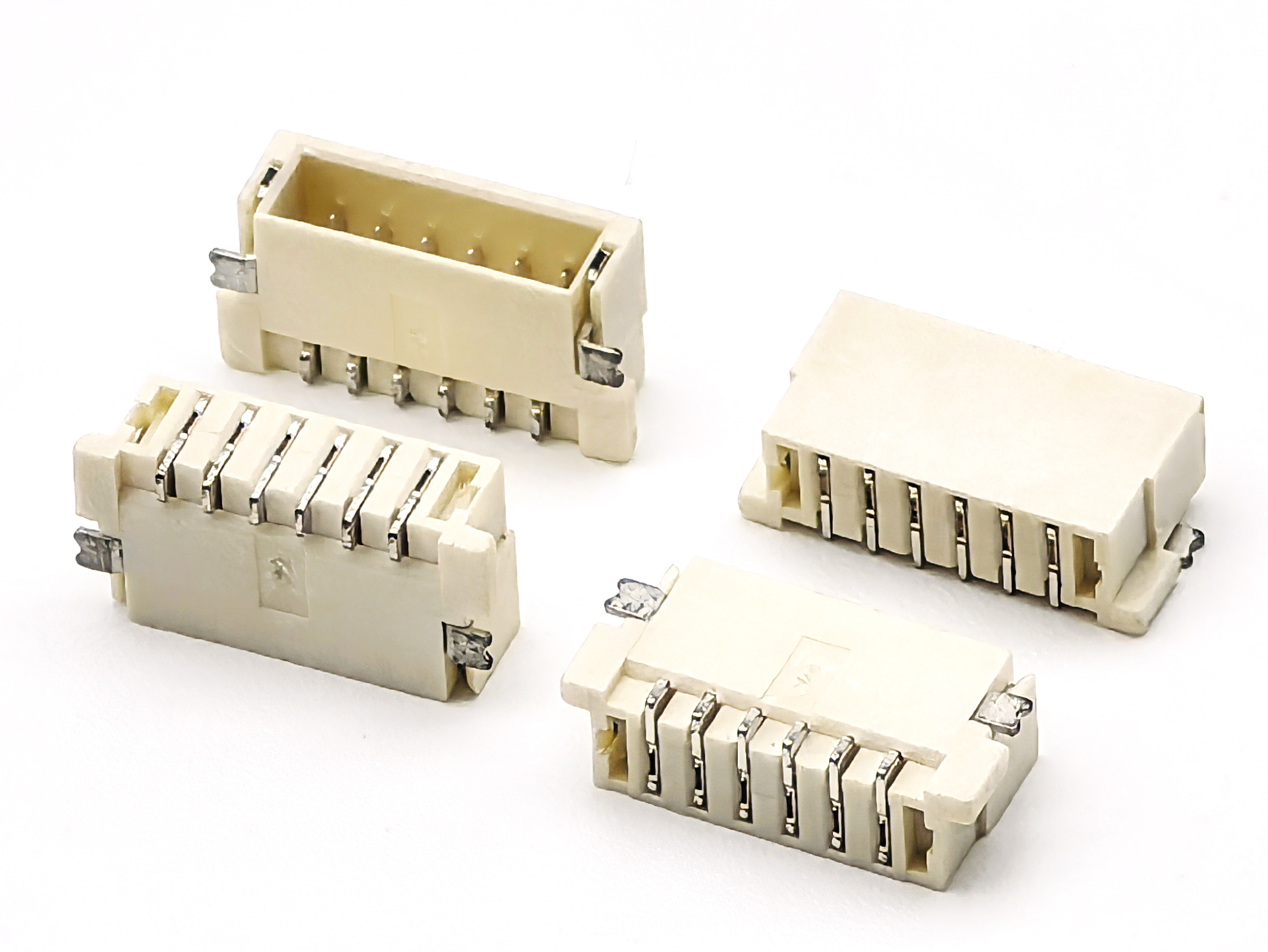

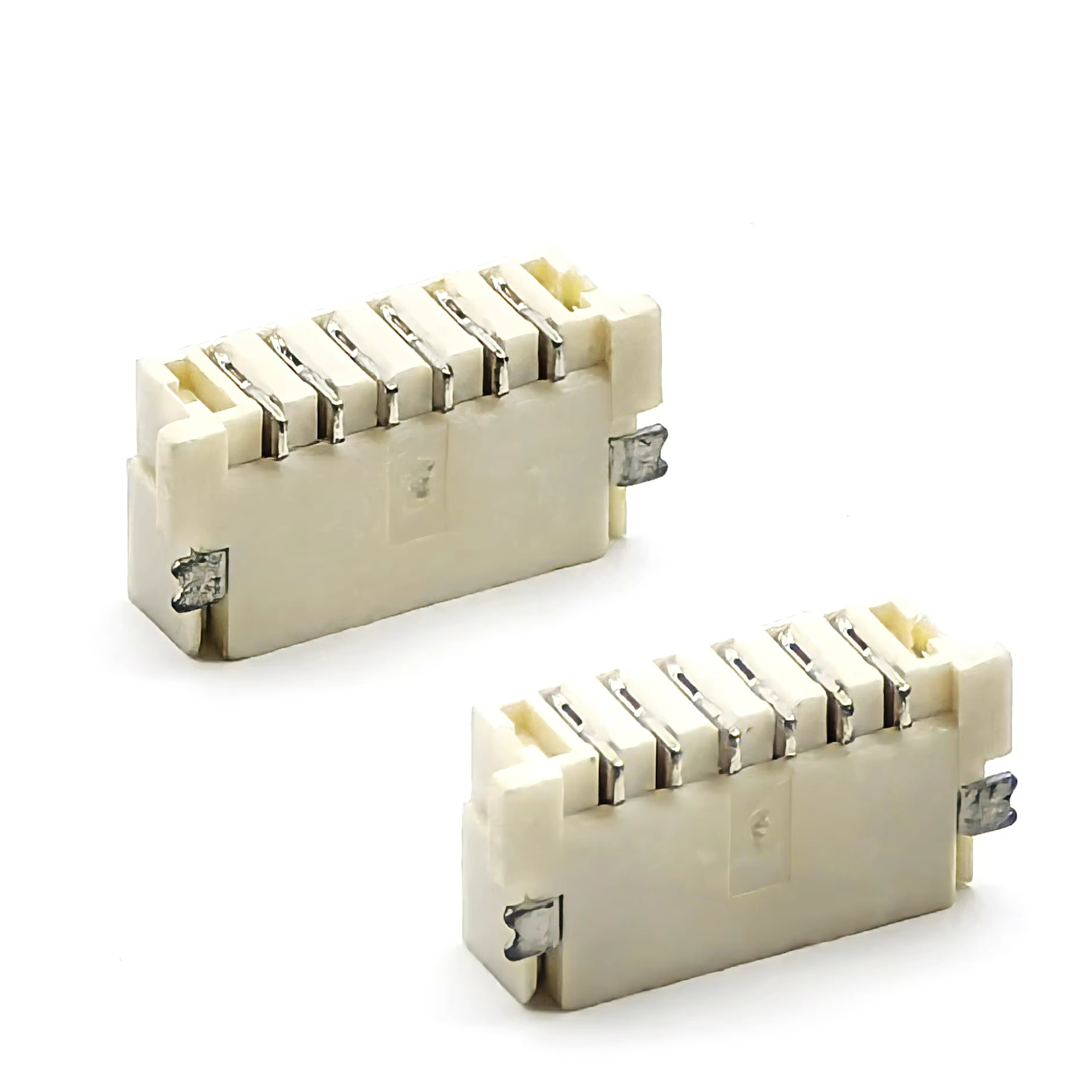

SHJ1.0mm Wafer Horizontal SMT Type 3711K Pin header Connector 6P
