Sainless steel Large capacity industrial vacuum bowl cutter

The vacuum cutter is used to produce products with various densities upon customers’ demands. It also has the function of mixing.

Our Vacuum Meat Chopper knife speed, bowl speed, cutting knife and turning bowl reaches the best combination, so that make sure the products are fine, the temperature is small, and the chopping time is short, especially for emulsification treatment, so that intestinal products make intestinal products The fineness and elasticity are greatly enhanced, and the grew of the emulsion, elasticity and delicateness of the meat products is improved. The main bearing of our Bowl Cutter uses SKF bearing, and it is equipped with an automatic lubrication system, automatic oil injection, convenient maintenance, and improved the operation rate of the whole machine. The motors are controlled by frequency conversion to ensure the smooth operation of the equipment, safe and reliable.

Function:

ZKZB-750with the function of cutting meat block into grains with different sizes, or meat mud. Vegetable, mushroom, agarics, shallot and ginger etc.can also be cutted, mixed, emulsified.
Mixing minced meat,seasoning, additive together.
Ideal combination of knife rolling speed, bowl rolling speed, the reasonable 2mm distance between knife and bowl, good degree of fitness, little tempreture rising and reduced cut time.
Rubber bar to prevent material leaking during cutting and washing.
The machine is made by stainless steel, easy to clean, good-looking, endurable, meeting the requirement of food sanitation

Option:cooling system,Automatic powder loading system.

Technical parameter of Vacuum bowl cutter

Model	Volume	Capacity	Knife speed	Bowl speed	Power	Weight	Dimension
ZKZB-200	200L	170kg/batch	200/1500/3000/3600r/min	Frequency	84kw	4000kgs	295030603130mm
ZKZB-330	330L	260kg/batch	200/1500/3000/3600r/min	Frequency	104kw	5500kgs	324028702650mm
ZKZB-550	550L	450kg/batch	200/1500/3000/3600r/min	Frequency	130kw	6500kgs	371030603130mm
ZKZB-750	750L	650kg/batch	200/1500/2700/3000r/min	Frequency	184Kw	9000kgs	390031501950mm
ZKZB-850	850L	750kg/batch	200/1500/2700/3000r/min	Frequency	224kw	10000kgs	395032203360mm

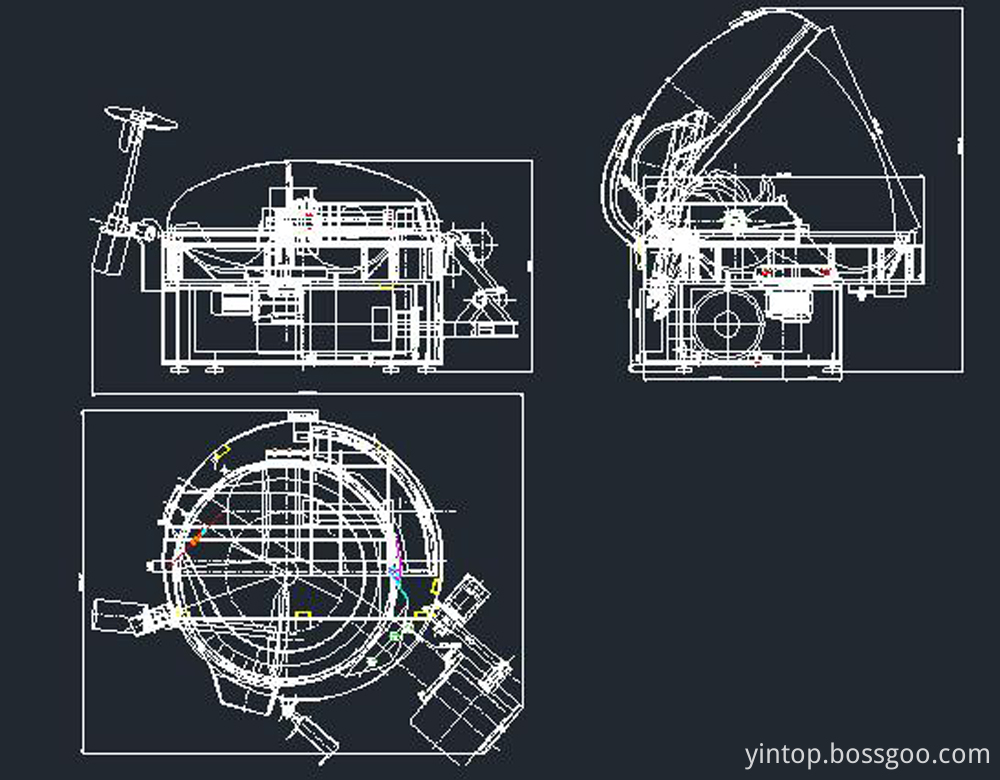

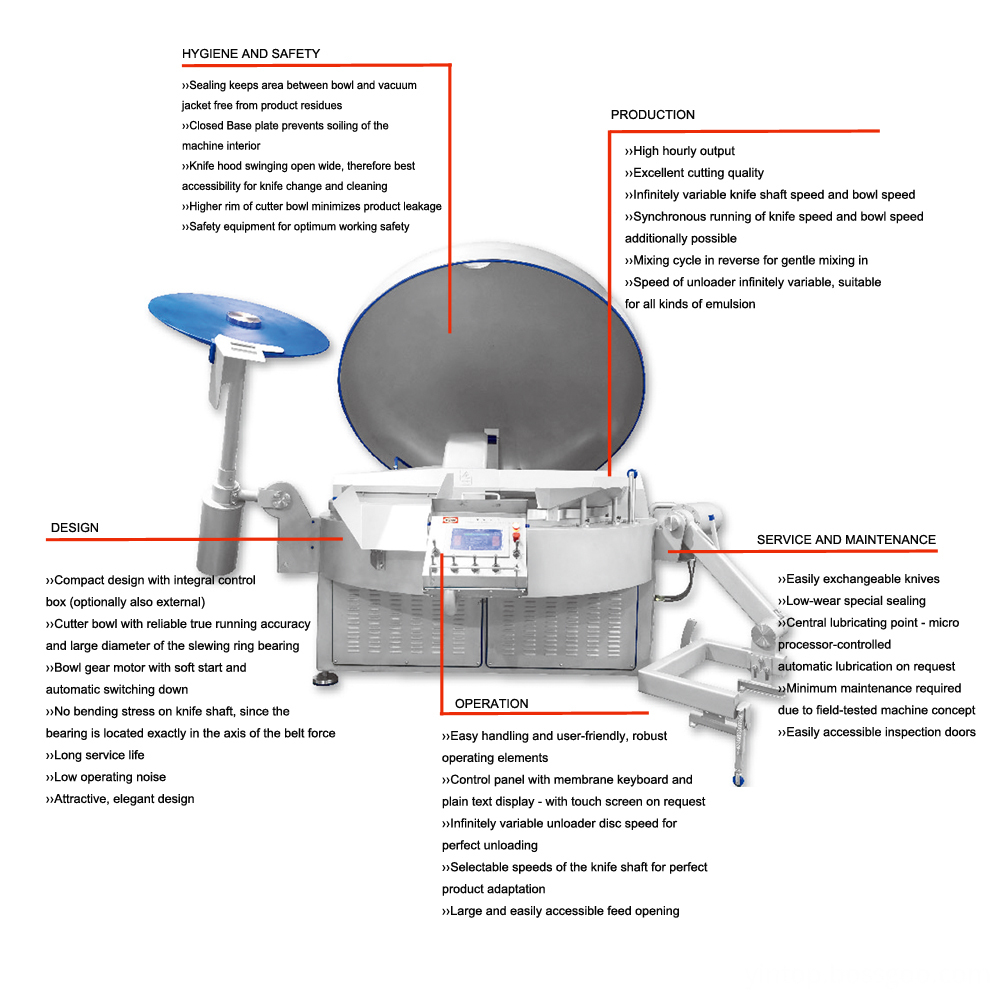

Big Vacuum Bowl Cutter drawing of bowl cutter

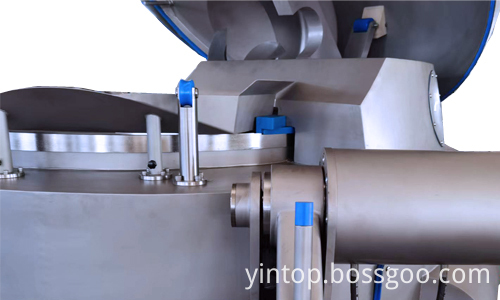

	KNIFE SHAFT Specially developed bearing technology and sealing for highest speeds and high operating safety Low-wear special sealing No bending stress on knife shaft Long service life of bearings and sealing

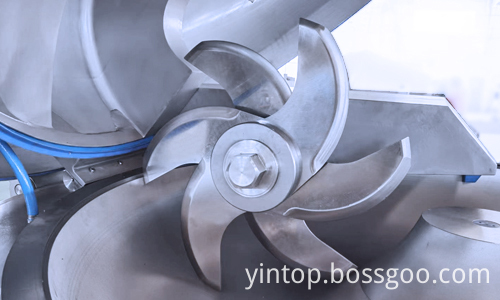

HIGH QUALITY KNIFE Standardized knife length;Cost-efficient and easy to maintain;Knife exchange without dismantling of knife head possible

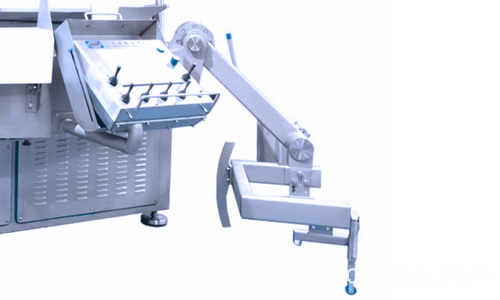

	JOYSTICK Blind operation;Hygienic design;Easy operate
AUTOMATIC LOADING SYSTEM More Powerful;more stable

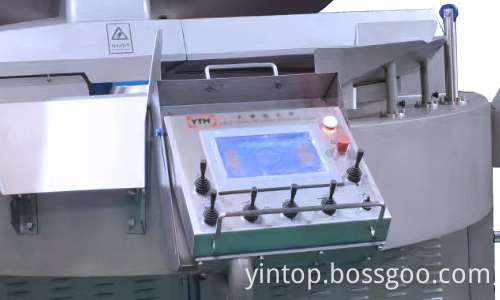

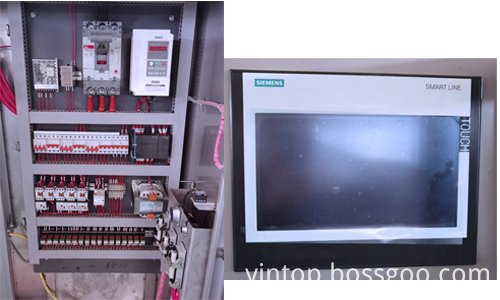

	ELECTRONIC EQUIPMENT Compact, hygienic design due to built-in control box that can be swivelled out to ensure perfect access for maintenance

Application of Vacuum bowl cutter

Bowl Cutter Applications

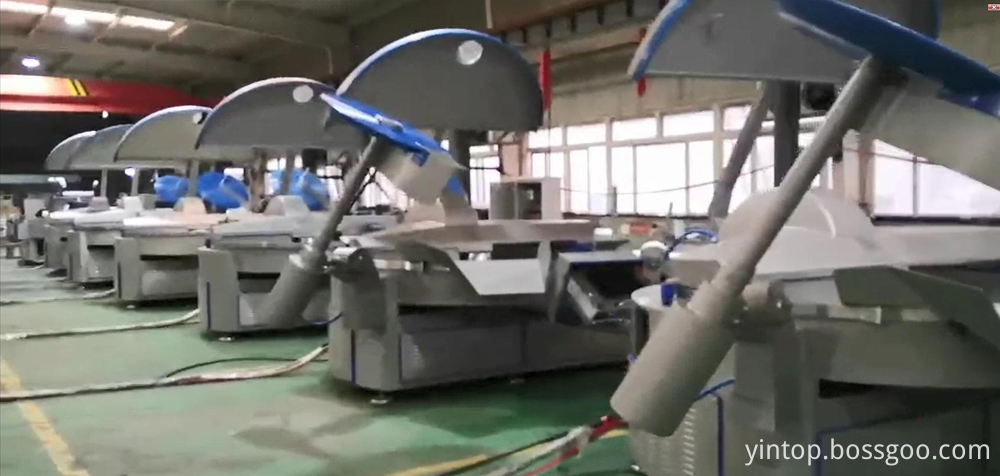

factory

Transport bowl cutter
