The Ground Screw Pile we provide has stronger bearing capacity,pull-out force and horizontal resistance,so that the Ground Screw can resist the side friction resistance generated when entering the ground.The surface of Ground Screw Anchor is galvanized,which means it is corrosion resistant and rust resistant .So it has a long service life and can be reused.In addition, it has better stability,effectively saving the installation time and cost.

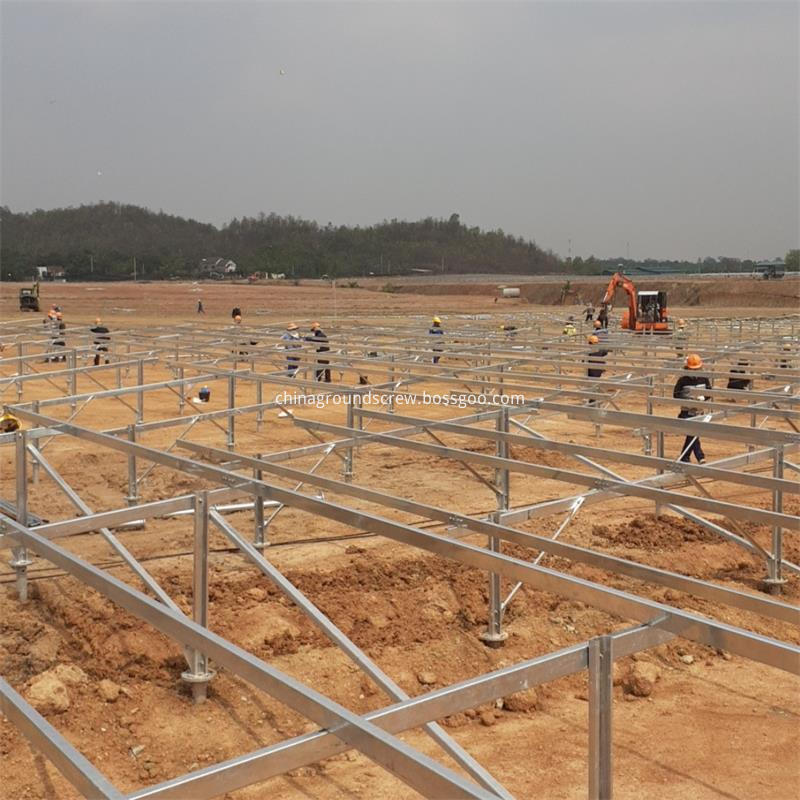

F Series Ground Screw with different shape flange: round flange,hexagon flange,square flange. It is mainly used for ground support of solar panels. some countries called that as Ground Anchor Screw .
Production Chart: Cutting pipe length according to design, forming the pipe according to the design, welding nut, flange, blade and assemble, acid pickling and hot dip galvanized treatment, QC and packing, shipments.
Material of Helix Ground Pile: S 235 carbon steel.
Length of the Ground Screws: 550-6000 mm.
Diameter of pipe: 48 mm, 68 mm, 76 mm, 89 mm, 114 mm, according to clients' request.
Nut: M 10/12/14/16 According to clients' request.
Surface treatment of Ground Pile: High dip galvanized, according to DIN EN ISO 1461-1999, thickness of coating zinc : more than 80 micron.
Advantages:
Grasp the earth more firmly
Strong and durable
Cost effectively
Saving time:no digging and no concrete
Easy and fast to install
Long life time
No damage to surrounding area
Reusable:fast and inexpensive to relocate
Corrosion resistant,etc
